2.375in x 1.125in Standard Chip Deflector - Cold Rolled Steel
2.375in x 1.125in Standard Chip Deflector - Cold Rolled Steel
SKU:STA-2341d4
Durable 16-gauge Cold Rolled Steel Chip Deflector for machine way protection in high-heat applications. Customizable sizes available.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
2.375in x 1.125in Standard Chip Deflector - Cold Rolled Steel
$29.99
Quantity: 1
Claim Your Seller Account
2.375in x 1.125in Standard Chip Deflector - Cold Rolled Steel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 2.375in x 1.125in Standard Chip Deflector is crafted from 16 gauge Cold Rolled Steel, offering durability and protection in high-heat chip applications. Precisely preformed to fit specific way wipers, it safeguards machine ways and wipers from metal chip damage, adding strength and longevity to your equipment. With customizable options for size specifications and hole patterns, this chip deflector caters to diverse institutional needs, featuring easy mounting instructions for seamless installation.
Product Specifications

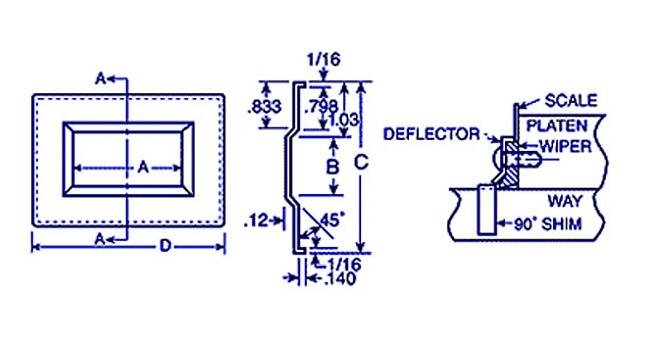

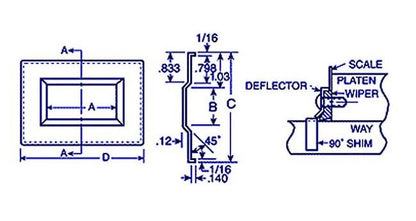

Mounting Instructions Mounting Instructions
Slide wiper into position.Place deflector over wiper.Insert all screws. Leave loose.Use 1/16 x 90º shim under lip of deflector.Use 6" scale. Apply pressure 90º leg of wiper. Hold deflector against 1/16 shim.Same procedure across top of wiper. Then around remaining sides. Remove shim.
Specifications Dimension A
2.375 in
Specifications Dimension B
1.125 in
Specifications Materials
Cold Rolled Steel (CRS)
Specifications Material Thickness
16 gauge
