2.388 in. Split Convoluted Tubing - UV-Resistant Black PE Tubing
2.388 in. Split Convoluted Tubing - UV-Resistant Black PE Tubing
SKU:TOO-baab71
Efficiently protect wire harnesses with HellermannTyton's 2.388 in. Split Convoluted Tubing; resist vibrations, water, and extreme weather.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
2.388 in. Split Convoluted Tubing - UV-Resistant Black PE Tubing
$289.99
Quantity: 1
Claim Your Seller Account
2.388 in. Split Convoluted Tubing - UV-Resistant Black PE Tubing
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

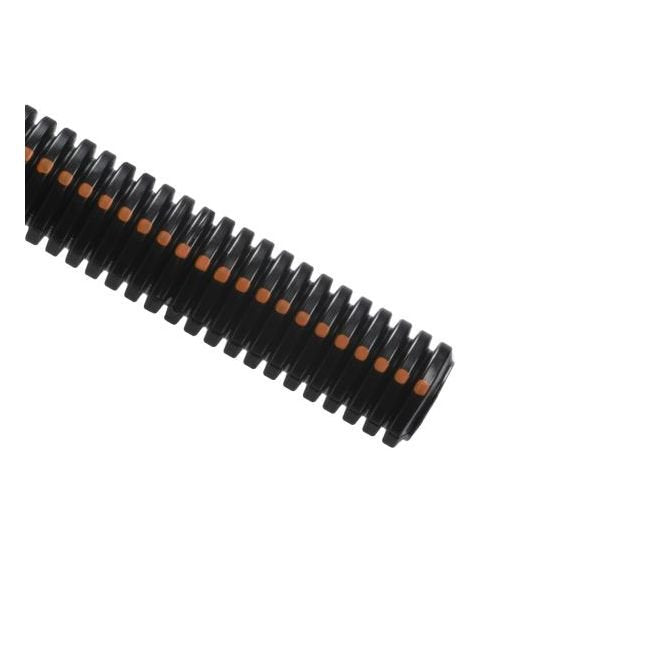

HellermannTyton’s 2.388 in. Split Convoluted Tubing, made of UV-Resistant Black PE material, offers superior protection and routing for wire harness assemblies. With a split side design for easy installation without dismantling, this tubing safeguards cables from vibrations, water, extreme temperatures, and other harsh conditions. Ideal for areas where traditional coverings may be challenging to apply, this product ensures durability and impact resistance, reducing the risk of damage.
Product Specifications
Dimensional Attributes Length
800.0 ft | 243.8 m
Dimensional Attributes Nominal Diameter
2.0 in | 50.8 mm
Dimensional Attributes Outside Diameter
2.388 in | 60.66 mm
Dimensional Attributes Wall Thickness
0.011 in | 0.28 mm
Features
Convoluted Tubing, Slit, 2" Dia, PEUV, Black with Orange Stripe, 800ft/carton.Split side is ideal for applications where braided tubing or spiral wrap may be difficult to install.Tubing provides full coverage where spiral wrap or other coverings may not be suitable.In harsh applications the tubing provides resistance to crushing, impact, and abrasion.
Specifications Brand
HELLERMANN TYTON
Specifications Color
Black with Orange Stripe (BKSTOG)
Specifications Flammability
UL 94 HB
Specifications Halogen Free
Yes
Specifications Local Order Number
904-00921
Specifications Material
Polyethylene, UV-Resistant (PEUV)
Specifications Operating Temperature Max
93 ºC | 199 ºF
Specifications Operating Temperature Min
-40 ºC | -40 ºF
Specifications Package Type
Carton
Specifications Rohs Compliant
Yes
Specifications Series
CTPUV20
Specifications Type
Slit Convoluted Tubing
Specifications Ul Listed Us
No
Specifications Ul Listed Us And Canada
No
Specifications Ul Recognized Us
No
Specifications Ul Recognized Us And Canada
No
Specifications Unspsc Code
39131601
