2.4mm Beryllium Copper Socket Pin with Wire for Vacuum - Hermetic Connectors
2.4mm Beryllium Copper Socket Pin with Wire for Vacuum - Hermetic Connectors
SKU:HER-25e5fd
High-performance 2.4mm Beryllium Copper Socket Pin for Vacuum - Hermetic Connectors. Reliable in extreme conditions.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
2.4mm Beryllium Copper Socket Pin with Wire for Vacuum - Hermetic Connectors
$29.99
Quantity: 1
Claim Your Seller Account
2.4mm Beryllium Copper Socket Pin with Wire for Vacuum - Hermetic Connectors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

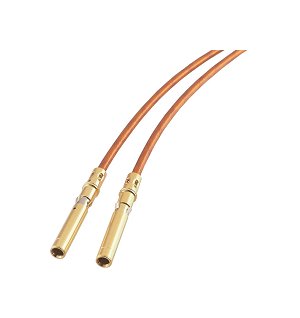

The 2.4mm Acceptable Plug Diameter Beryllium Copper Socket Pin with Wire is a precision-engineered hermetic connector component designed for vacuum applications. Crafted from a hard-to-machine copper alloy with gold plating over nickel, this pin ensures low outgassing properties essential for vacuum environments. Suitable for #12 AWG wire, it operates reliably in temperatures ranging from -55 to +150 ºC with a current rating of 23A at 25 ºC. Our pins cater to the demanding needs of institutional buyers seeking high-performance components that meet stringent standards, making them ideal for critical applications within vacuum containers.
Product Specifications
Reasons Why Our Vacuum Connectors Are Chosen
The challenging development of vacuum componentsAs a connector manufacturer, we specialize in meeting unique demands and aligning our development with your needs. We have a track record of developing crucial vacuum components that are difficult for others, drawing on our extensive experience. Please feel free to consult with us.The Lineup of related components usable inside vacuum containersOur products cater to a wide range of fields and demanding conditions, including probes, cables, and connectors that support high current and high voltage applications.

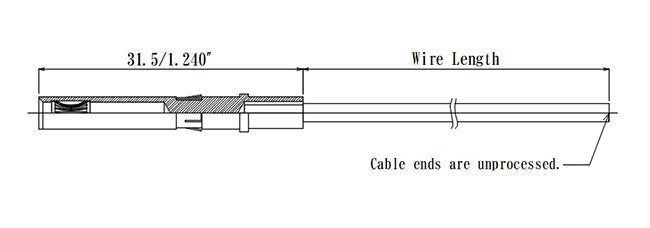

Specifications Acceptable Plug Diameter
2.4 mm | 0.094 in
Specifications Applicable Wire
#12 AWG
Specifications Current Rating At 25 Degree Celsius C Temperature
23 A
Specifications Materials
Copper Alloy, Gold (Au) Plating Over Nickel (Ni)
Specifications Operating Temperature
-55 to +150 ºC
