2.5 Inch (in) Inlet (I) Straight Thru Inline Entrainment Separator

2.5 Inch (in) Inlet (I) Straight Thru Inline Entrainment Separator

INL-61c5d8

N/A

$49.99
$49.99
Sale

Initiate Order

2.5 Inch (in) Inlet (I) Straight Thru Inline Entrainment Separator

2.5 Inch (in) Inlet (I) Straight Thru Inline Entrainment Separator

$49.99

Quantity: 1

Claim Your Seller Account

2.5 Inch (in) Inlet (I) Straight Thru Inline Entrainment Separator

2.5 Inch (in) Inlet (I) Straight Thru Inline Entrainment Separator

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

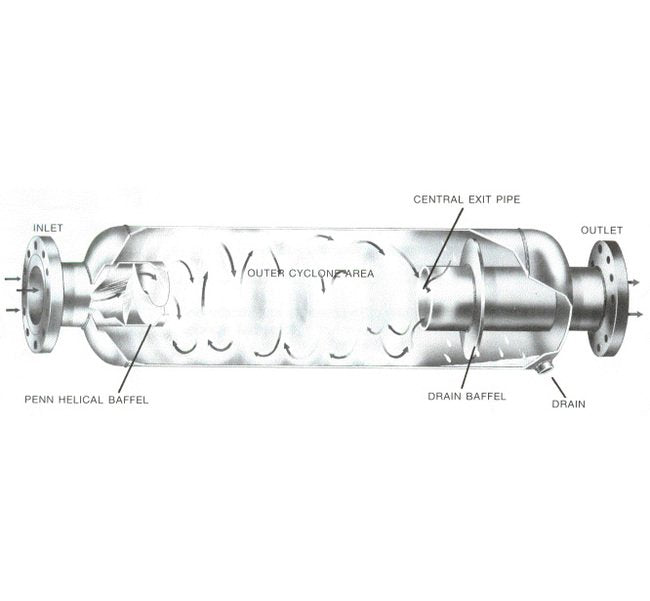

Our other Inline design is a "straight thru" that uses a helical baffle to create the centrifugal separation. The body of the separator follows the line requiring less space for installation. These separator are available in horizontal, upflow, or downflow models. All Penn centrifugal separators are designed and stamped ASME code in threaded, 150# flanged or 300# flanged. Special pressures are also available.

Product Specifications

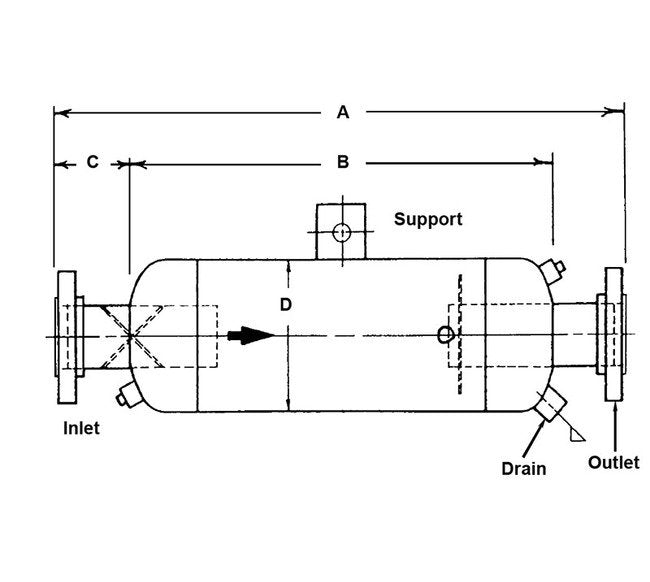

Dimensions Dimension A
32 in
Dimensions Dimension B
24.5 in
Dimensions Dimension C
3.75 in
Dimensions Dimension D
8.625 in
Dimensions Drain Dr
0.75 in
Dimensions Inlet I
2.5 in
Dimensions Outlet O
2.5 in
Specifications Media Separated
Air | Steam
Specifications Separator Type
Entrainment
