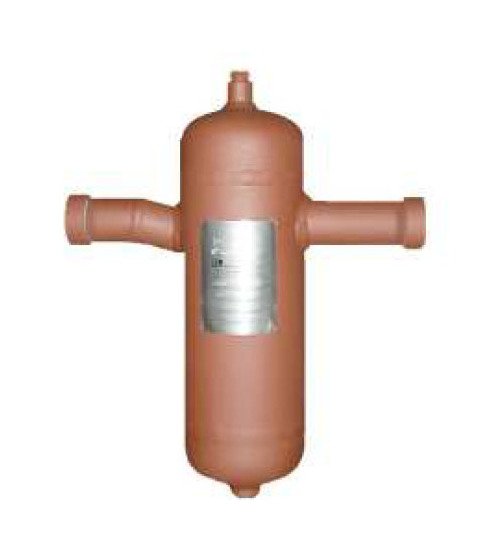

2.5 Inch (in) Inlet (I) "T" Type Inline Entrainment Separator
2.5 Inch (in) Inlet (I) "T" Type Inline Entrainment Separator
SKU:INL-393f04
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
2.5 Inch (in) Inlet (I) "T" Type Inline Entrainment Separator
$49.99
Quantity: 1
Claim Your Seller Account
2.5 Inch (in) Inlet (I) "T" Type Inline Entrainment Separator
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The most efficient type is our "T" type design. The downward tangential inlet directs the flow to the outside walls of the vessel creating a low pressure vortex area that the clean flow follows to the centrally located outlet. Our PuC cone provides additional centrifugal force necessary to wring out the smaller droplets. The cone also provides a space where entrainment droplets fall harmlessly from the stream minimizing re-entrainment. The open flow design keeps pressure loss low.
Product Specifications

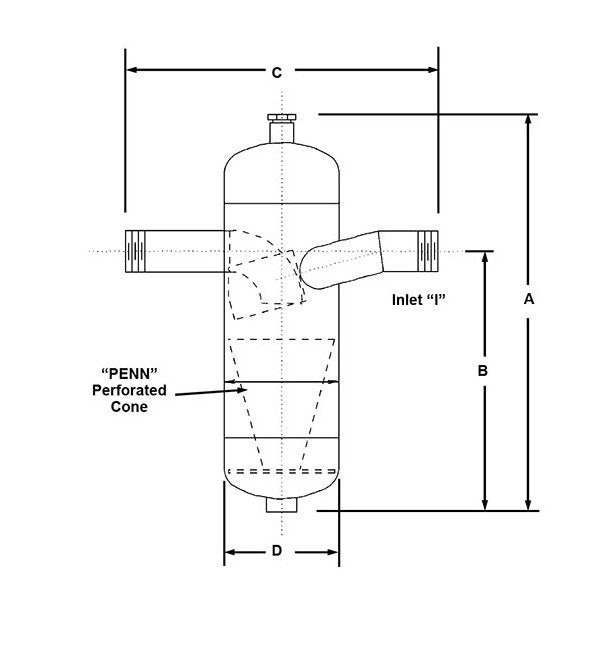

Dimensions Dimension A
28 in
Dimensions Dimension B
20 in
Dimensions Dimension C
20 in
Dimensions Dimension D
8.5 in
Dimensions Drain Dr
1 in
Dimensions Inlet I
2.5 in
Dimensions Outlet O
2.5 in
Specifications Media Separated
Air | Steam
Specifications Separator Type
Entrainment
