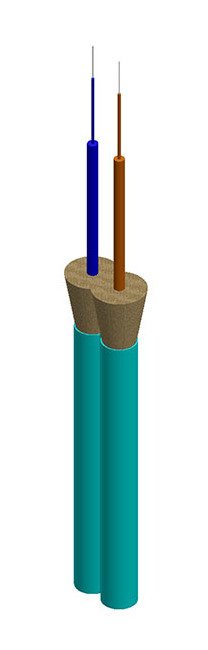

2.9 x 6 Millimeter (mm) Orange Jacket Plenum Rated Duplex Zipcord Fiber Optic Cable

Name: 2.9 x 6 Millimeter (mm) Orange Jacket Plenum Rated Duplex Zipcord Fiber Optic Cable
Brand: Opticonx
SKU: BUL-fac670
Price: 49.99 USD
Availability: OutOfStock

SKU:BUL-fac670

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

Certification

(UL) Type OFNP per the National Electric Code. (ANSI/NFPA 70-1999) Section 770-53(a). For use in Air Return Plenums Transporting Environmental Air. Meets FDDI ANSI X3T9.5, IBM 3044 Channel Extender.

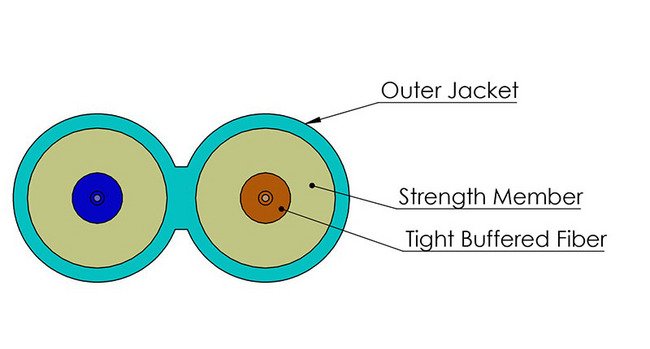

Construction Buffer Color

Blue/Orange

Construction Component Fiber Buffer Diameter

245 µm

Construction Component Thermoplastic Tight Buffer Diameter

900 µm

Construction Jacket Color

Orange

Construction Jacket Material

Flame Retardant Polyvinyl Chloride (PVC)

Construction Optional Color

Construction Strength Member

Dielectric Aramid Yarn Fibers

Mechanical Cable Weight

15.65 kg/km

Mechanical Cable Weight Per 1000 Feet Ft

10.5 lb

Mechanical Major Diameter

0.235 in | 6.0 mm

Mechanical Maximum Installation Tensile Load

220 lb | 980 N

Mechanical Maximum Operating Tensile Load

130 lb | 579 N

Mechanical Minimum Installation Bend Radius

2.28 in | 58 cm

Mechanical Minimum Operating Bend Radius

1.14 in | 36.6 cm

Mechanical Minor Diameter

0.114 in | 2.9 mm

Mechanical Operating Temperature

-20 to 80 ºC | -4 to 176 ºF

Mechanical Storage Temperature

-40 to 80 ºC | -40 to 176 ºF

Opticonx Inc. 888-748-6855 Optical Fiber Cable (UL) c(UL) Type OFNP2 Fiber (fiber type) sequential marks.

Proprietary And Confidential

The information contained in this drawing is the sole property of Opticonx, Inc. Any reproduction in part or as a whole without the written permission of Opticonx, Inc. is prohibited.

2.9 x 6 Millimeter (mm) Orange Jacket Plenum Rated Duplex Zipcord Fiber Optic Cable
