2.9mm x 12.0mm Open End Dome Blind Rivet
2.9mm x 12.0mm Open End Dome Blind Rivet
SKU:OPE-2c096c
Strong and reliable 2.9mm x 12.0mm Blind Rivet for secure fastening. Dome head style, Aluminum Alloy construction. Meets institutional procurement standards.
Regular price
$58.99
Regular price
Sale price
$58.99
Unit price
per
Initiate Order
2.9mm x 12.0mm Open End Dome Blind Rivet
$58.99
Quantity: 1
Claim Your Seller Account
2.9mm x 12.0mm Open End Dome Blind Rivet
$58.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

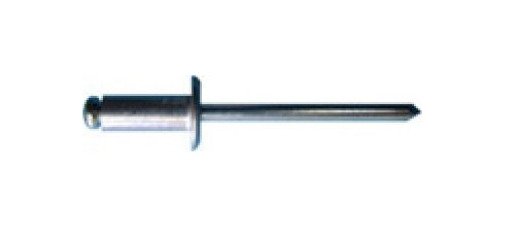

Enhance your projects with the 2.9mm x 12.0mm Open End Dome Blind Rivet from Ornit. Crafted from Aluminum Alloy to AA 5052, this rivet ensures durability with a Mandrel made of Low Carbon Steel SAE 1006-1022. With a Dome head style and natural finish, it offers a grip range of 7.0mm to 9.0mm, meeting stringent institutional procurement standards for strength and reliability. Experience exceptional shear and tensile forces of 70kgf and 85kgf, respectively, in a precise 2.9mm diameter body.
Product Specifications
Nominal Dimensions Body Length
12.0 mm | 0.472 in
Nominal Dimensions Diameter
2.9 mm
Nominal Dimensions Drillhole Size
3.1 mm | 0.122 in
Nominal Dimensions Head Diameter
6.3 mm | 0.248 in
Nominal Dimensions Head Thickness
0.90 mm | 0.035 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.071 in
Nominal Dimensions Maximum Grip Range
9.0 mm | 0.354 in
Nominal Dimensions Minimum Grip Range
7.0 mm | 0.276 in
Nominal Forces Nominal Shear Force
70 kgf | 154 lbf
Nominal Forces Nominal Tensile Force
85 kgf | 187 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
10000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
