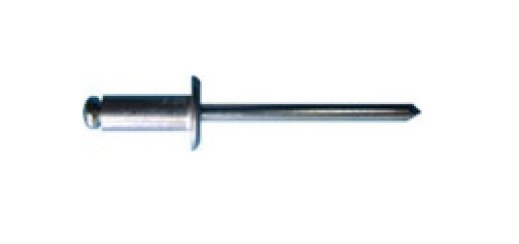

2.9mm x 8.0mm Open End Dome Blind Rivet
2.9mm x 8.0mm Open End Dome Blind Rivet
SKU:OPE-7b9915
Ornit's 2.9mm x 8.0mm Dome Blind Rivet offers secure and durable fastening solutions for a range of applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
2.9mm x 8.0mm Open End Dome Blind Rivet
$49.99
Quantity: 1
Claim Your Seller Account
2.9mm x 8.0mm Open End Dome Blind Rivet
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 2.9mm diameter and 8.0mm body length open end dome blind rivet by Ornit offers reliable fastening with its aluminum alloy body and low carbon steel mandrel construction. With a nominal shear force of 70 kgf and nominal tensile force of 85 kgf, it provides secure joints for various applications. Meeting stringent industry standards, this rivet is ideal for both consumer and institutional procurement needs.
Product Specifications
Nominal Dimensions Body Length
8.0 mm | 0.315 in
Nominal Dimensions Diameter
2.9 mm
Nominal Dimensions Drillhole Size
3.1 mm | 0.122 in
Nominal Dimensions Head Diameter
6.3 mm | 0.248 in
Nominal Dimensions Head Thickness
0.90 mm | 0.035 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.071 in
Nominal Dimensions Maximum Grip Range
5.0 mm | 0.197 in
Nominal Dimensions Minimum Grip Range
3.0 mm | 0.118 in
Nominal Forces Nominal Shear Force
70 kgf | 154 lbf
Nominal Forces Nominal Tensile Force
85 kgf | 187 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
10000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
