2" BSP PWR-FLO™ AODD Pump, Ductile Iron with Buna-N/Nitrile Diaphragm
2" BSP PWR-FLO™ AODD Pump, Ductile Iron with Buna-N/Nitrile Diaphragm
SKU:MAN-30b867
Efficient 2" BSP PWR-FLO™ AODD Pump for large solids and slurries. Reliable air-driven design for filling and batching applications.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
2" BSP PWR-FLO™ AODD Pump, Ductile Iron with Buna-N/Nitrile Diaphragm
$1,299.99
Quantity: 1
Claim Your Seller Account
2" BSP PWR-FLO™ AODD Pump, Ductile Iron with Buna-N/Nitrile Diaphragm
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

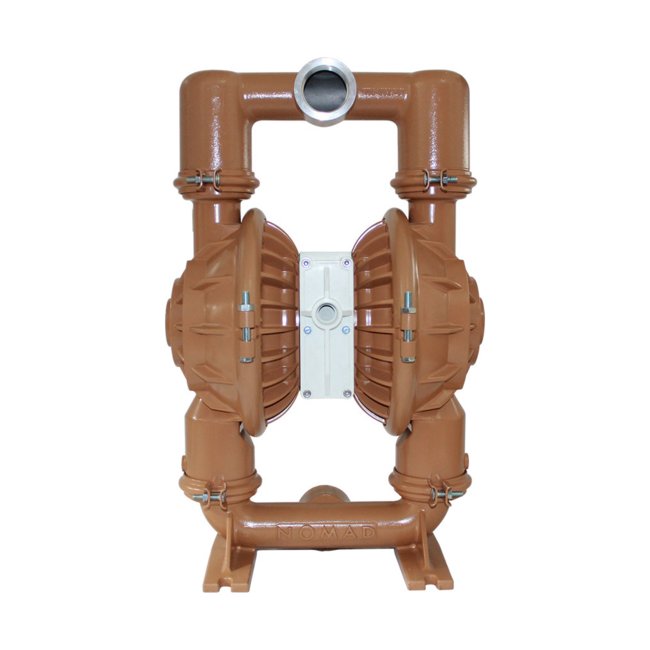

The 2" BSP PWR-FLO™ AODD Pump is a reliable and efficient solution for handling large solids, slurries, and liquid transfer applications. Featuring an anti-stalling design with an asymmetrical spool for optimal air system efficiency, this pump offers excellent reliability for on/off liquid transfer tasks. Made of chemically resistant ductile iron with Buna-N/Nitrile diaphragms, this pump is a drop-in replacement for Wilden® AODD pumps, ensuring seamless integration into existing systems. With a max flow rate of 164.7 gpm and a solids handling capacity of 0.25 inches, this pump is ideal for filling, batching, and industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

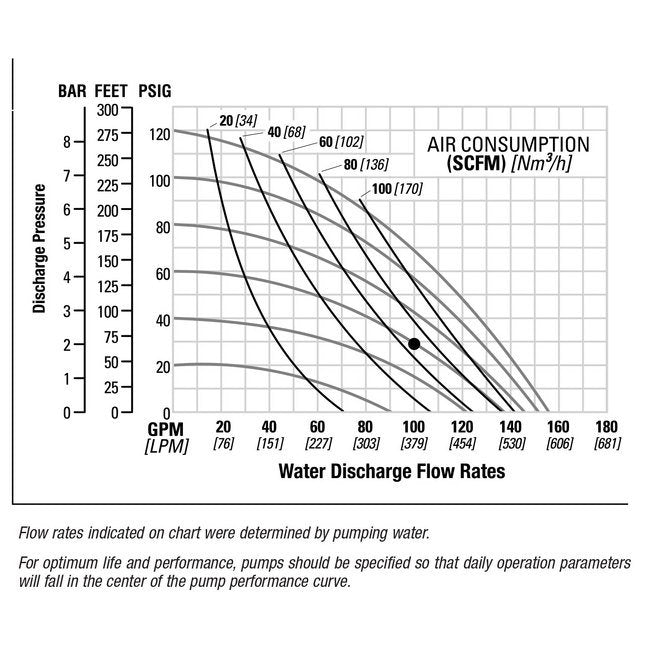

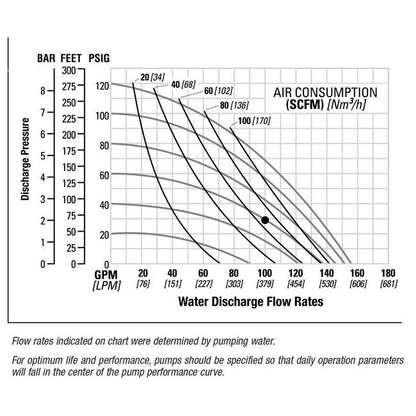

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
Buna - N/ Nitrile
Specifications Check Valve Seat
Buna - N/Nitrile
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
Buna - N/ Nitrile
Specifications Displacement Per Cycle
0.7 gal | 2.65 lit
Specifications Elastomers
Buna - N/Nitrile, Buna - N/ Nitrile, Buna - N/ Nitrile
Specifications Fluid Inlet Size
2 BSP in | 51 BSP mm
Specifications Fluid Outlet Size
2 BSP in | 51 BSP mm
Specifications Height
26 Inch | 26 in | 668.02 mm
Specifications Length
26 Inch | 26 in | 0.6680 m | 668.02 mm
Specifications Max Flow Rate
164.7 gpm | 623.46 lpm
Specifications Moc
Ductile Iron
Specifications Model
NPF50/WWAA/BNU/BN/BN/B/C/X
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-511474
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Ductile Iron
Specifications Width
14 Inch | 14 in | 0.3429 m | 342.90 mm
