2" Buttweld Barred Tee - 720 PSI at 100°F WOG
2" Buttweld Barred Tee - 720 PSI at 100°F WOG
SKU:BAR-acc616
Ensure pipeline safety with the Sure Flow 2" Buttweld Barred Tee, ASME Class 150 compliant for Pig passage integrity.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
2" Buttweld Barred Tee - 720 PSI at 100°F WOG
$149.99
Quantity: 1
Claim Your Seller Account
2" Buttweld Barred Tee - 720 PSI at 100°F WOG
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled pipeline safety with the Sure Flow 2" Buttweld Barred Tee, designed to ASME Class 150 standards. Available in Alloy, Carbon Steel, or Stainless Steel, this Tee ensures Pig passage integrity with custom bar sections welded to the branch. With optional Flanged Connections and compliance with ISO 9001:2008, trust in the highest quality and standards for your project.
Product Specifications
Additional Information Additional Information

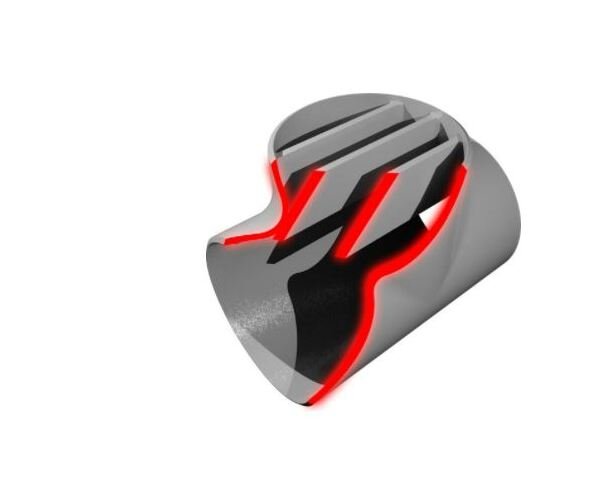

Custom fitted bar sections are welded to the branch of the buttweld Tee. The bars are added to ensure the Pig passes by the branch opening. Bar spacing is designed to prevent damage to the functional elements of the Pig.Buttweld End Connections are standard. Optional Flanged Connections in raised face or RTJ, as well as extended pup-pieces, are available. Barred Tees are used in a pipeline Launcher/Receiver system and at any branch in the pipeline to ensure safe passage of the Pig.

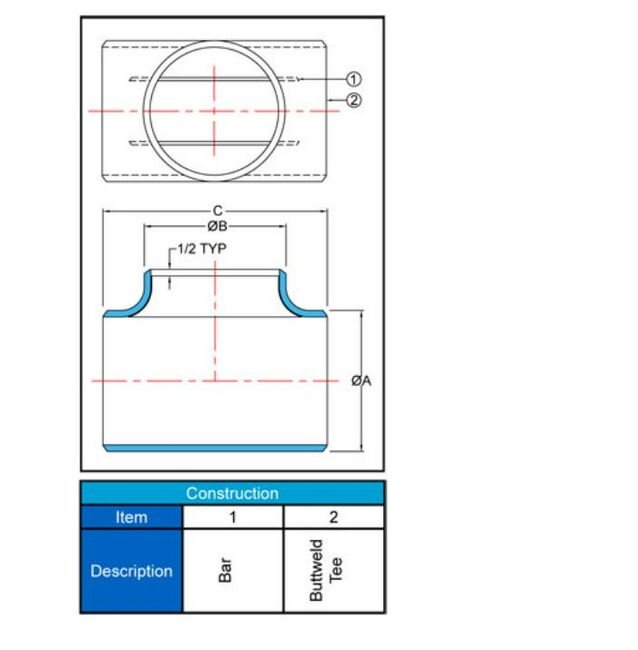

Construction Construction
Item - 1Description - BarItem - 2Description - Buttweld Tee
Dimensions Dimension C
5 in
Dimensions Size
2 in
Dimensions Thickness At 2 Inch In Branch Size And 2 Bar
1/4 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings available Larger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
720 psi
Operating Pressures And Temperatures Pressure At 422 Degree Fahr
300 psi
Specifications Material
Alloy | Carbon Steel | Stainless Steel
Specifications Prefix Size
0200
