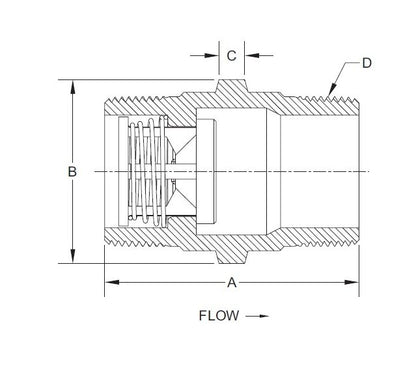

2" CN Style Connector Check Valve
2" CN Style Connector Check Valve
SKU:CNA-8a3363
High-quality 2" CN Style Connector Check Valve with 1.50 psi cracking pressure, various body material options, and CE/ISO certifications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
2" CN Style Connector Check Valve
$89.99
Quantity: 1
Claim Your Seller Account
2" CN Style Connector Check Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 2" CN Style Connector Check Valve is a high-quality check valve suitable for both consumer and institutional applications. Made in the USA, this valve features a 2-inch nominal pipe size and a standard cracking pressure of 1.50 psi, ensuring reliable operation. The valve body is available in various materials including 316 Stainless Steel, Brass, and Carbon Steel, meeting industry standards for durability and performance. With a non-shock pressure rating of 3000 psig and certifications including CE and ISO 9001, this valve is a versatile and compliant choice for diverse applications.
Product Specifications
Note
Made in USA.
Specifications Body Material
316 Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Brass = BR | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO | Titanium = TI
Specifications Body Material Availability
316 Stainless Steel (SS) - Standard | Alloy 20 (A2) - Semi-Standard | Alloy B (HB) - Contact the factory for these or other materials | Alloy C-276 (HC) - Semi-Standard | Brass (BR) - Standard | Carbon Steel (CS) - Standard | Monel® 400 or Alloy R405 - Semi-Standard | Titanium (TI) - Contact the factory for these or other materials
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
2 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
3000 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
K
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy B = HB | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
1.50 psi
Specifications Valve Style
National Pipe Thread (NPT) Threads = CN
