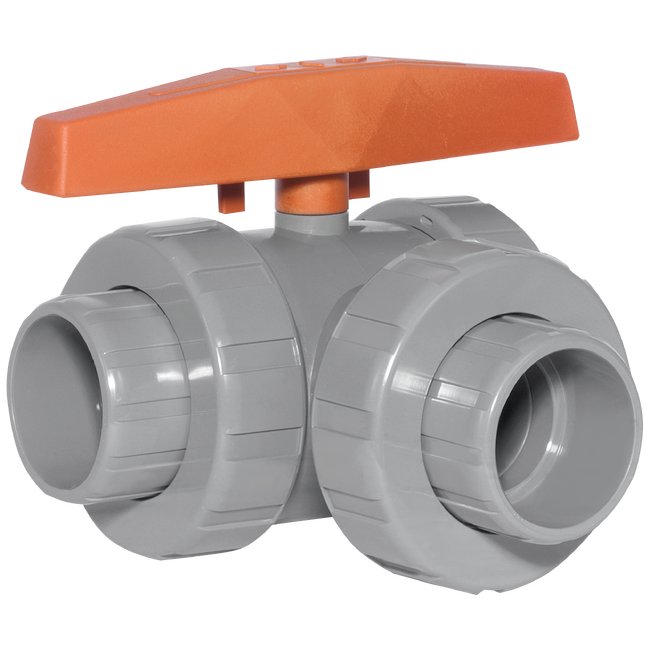

2" CPVC 3-Way Lateral True Union Ball Valves with Flanged Connections
2" CPVC 3-Way Lateral True Union Ball Valves with Flanged Connections
SKU:TRU-74d474
Versatile 2" CPVC 3-Way Lateral True Union Ball Valves with Flanged Connections, ideal for precise flow control without an OFF position. Suitable for pressure up to 150 PSI.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
2" CPVC 3-Way Lateral True Union Ball Valves with Flanged Connections
$79.99
Quantity: 1
Claim Your Seller Account
2" CPVC 3-Way Lateral True Union Ball Valves with Flanged Connections
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 2" CPVC 3-Way Lateral True Union Ball Valves from our LA Series provide versatile flow control with the ability to divert flow from the center port to the left or right ports, all without an OFF position. Constructed with durable CPVC and equipped with EPDM o-rings, these valves are designed to handle pressure up to 150 PSI. Featuring flanged end connections, these valves offer a secure and leak-resistant installation. With a Cv Factor of 58.0, they ensure efficient performance across various applications. Sizes up to 2" come with socket and threaded end connections for added flexibility.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications A
4.75 in | 120.65 mm
Specifications B
4.38 in | 111.25 mm
Specifications Body Material
CPVC
Specifications C
6.00 in | 152.40 mm
Specifications Cv Factor
58.0
Specifications E
5.00 in | 127.00 mm
Specifications End Connection
Flanged
Specifications F
6.75 in | 171.45 mm
Specifications G
12.25 in | 311.15 mm
Specifications H
4.19 in | 106.43 mm
Specifications Seals
EPDM
Specifications Size
2"
