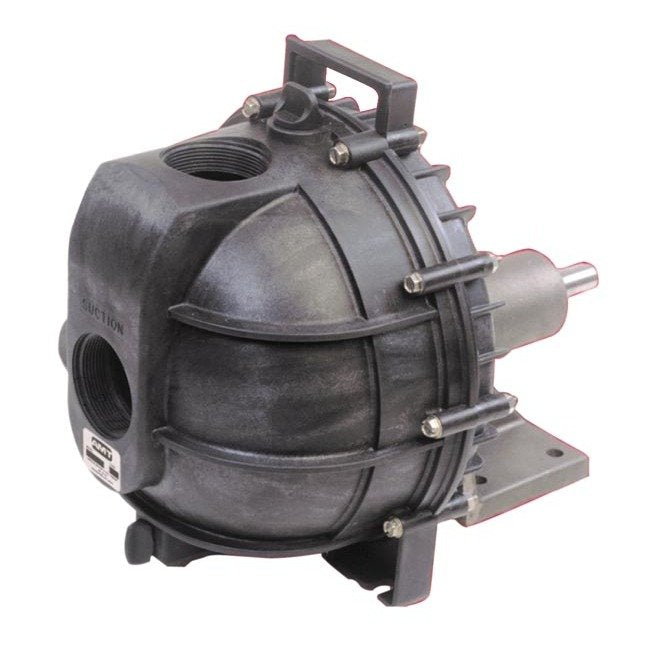

2" Dewatering Self-Priming Pedestal Pump

2" Dewatering Self-Priming Pedestal Pump

PRO-7b4a99

Reliable 2" Dewatering Self-Priming Pedestal Pump by American Machine and Tool Company, designed for efficiency and durability.

$679.99
$679.99
Sale

Initiate Order

2" Dewatering Self-Priming Pedestal Pump

2" Dewatering Self-Priming Pedestal Pump

$679.99

Quantity: 1

Claim Your Seller Account

2" Dewatering Self-Priming Pedestal Pump

2" Dewatering Self-Priming Pedestal Pump

$679.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 2" Dewatering Self-Priming Pedestal Pump by American Machine and Tool Company is engineered for reliability and efficiency. With a thermoplastic construction, self-priming capability to 20 ft, and a maximum working pressure of 45 PSI, this pump is ideal for handling solids up to 1/4" diameter. Featuring a heavy-duty cast iron bearing housing and a CNC machined shaft, it ensures durability and long-lasting performance. Designed for seamless operation in dewatering applications, this pump is a trusted solution for both consumer and institutional buyers.

Product Specifications

Specifications 0
Thermoplastic ConstructionBuna-N flapper valve and O-rings2" NPT suction & discharge portsMaximum Working Pressure 45 PSIMaximum Temperature 130° FSelf-priming to 20 ft2" Dewatering construction1/4" Diameter solids handling capabilityHeavy duty cast iron bearing housing containing (2) precision sealed ball bearings3/4" Diameter CNC machined shaft1 3/8" x 3/16" x 3/32" keyway1/4" Diameter solids handling capability

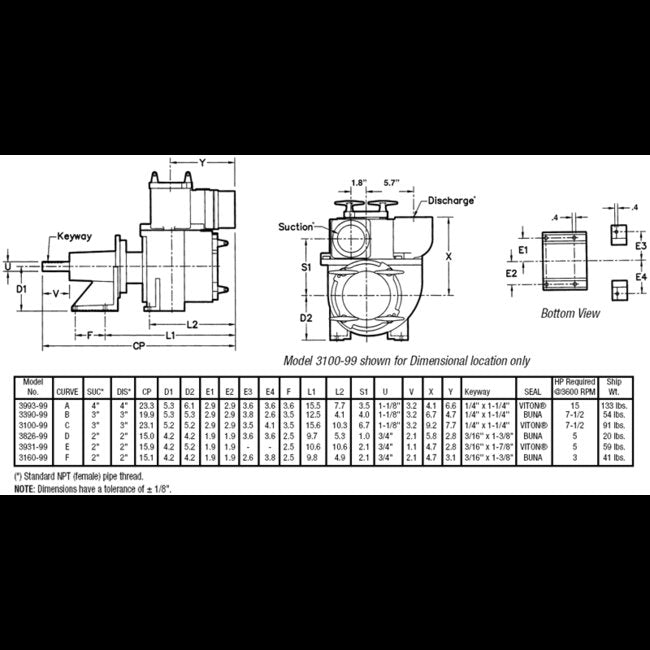

Specifications Curve
D
Specifications Customs Code
HTS Code 8413702022
Specifications Driver
Pedestal
Specifications Height
11 in | 266.7 mm
Specifications Inlet Size
2 in
Specifications Installed Options
Silicon Carbide/Viton Seal, Flapper and Gasket Installed (339X-300-VS) | Silicon Carbide/Viton Seal, O-Ring and Flapper Installed (316X-300-VS)
Specifications Length
15 in | 381.00 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Porting Position
2 in
Specifications Power Required At 3600 Rpm
5 hp
Specifications Pump Type
Dewatering
Specifications Seal Material
Buna-N
Specifications Sku
AT382699SP
Specifications Temperature
130 ºF
Specifications Weight
20 | 9.07 | 20 lbs
Specifications Width
11 in | 279.40 mm
