2 Feet (ft), 277 Volt (V) Alternating Current (AC) Input Voltage Industrial Driverless Light Emitting Diode (LED) Linear Luminaire Light

Name: 2 Feet (ft), 277 Volt (V) Alternating Current (AC) Input Voltage Industrial Driverless Light Emitting Diode (LED) Linear Luminaire Light
Brand: G&G Industrial Lighting
SKU: IND-ac14b3
Price: 49.99 USD
Availability: OutOfStock

SKU:IND-ac14b3

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Industrial Driverless LED Linear Low-Profile, Linkable for Harsh Environment

Product Specifications

Construction And Materials

Convenient push-and-click connectors let you easily and rapidly install Leader Cables and Jumper Cables. Multiple cable lengths support a variety of layouts.Integrated aluminum heat spreader.Seamless polymeric outer shell provides IP68 ingress protection and is specialized for superior chemical resistance.All G&G luminaires and components (with the exception of our LED boards and drivers) are proudly manufactured and assembled in the USA

Electrical System Input Power

Stays consistent over life.

Electrical System Nominal Power Factor

0.9 pF

Electrical System Temperature Rating

Designed to operate in temperatures -40 ºC to 55 ºC.

Electrical System Total Harmonic Distortion

< 20 %

Lumen And Power Data Lumens

2,000 lm

Lumen And Power Data Wattage

16 W

Alternating Current Ac Input Voltage

277 V

Ambient Temperature

-40 to 55 ºC

Ingress Protection Ip Class

IK07 Impact | IP68

Lifetime

Designed to last 100,000 Hours at 25 ºC

Mounting

Ceiling | Wall

Surge Protection

Built-In 6 kV

Warranty

5 y

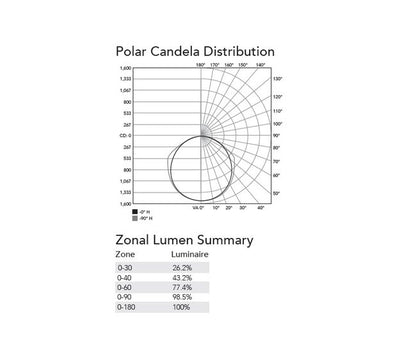

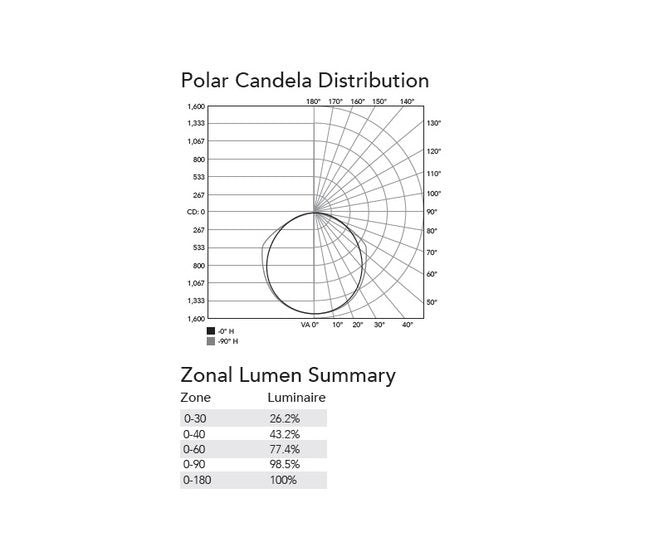

Photometry

Based on DTC Report Test #: 14404-TFixture photometry has been conducted by a NVLAP accredited testing laboratory in accordance with IESNA LM-79-08. IESNA LM-79-08 specifies the entire luminaire as the source resulting in a fixture efficiency of 100%.

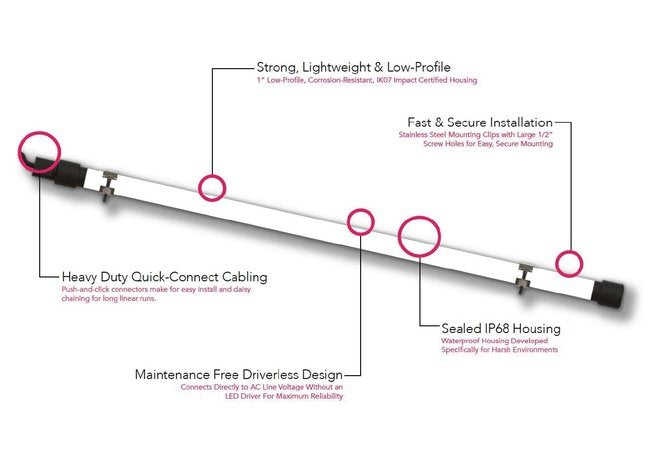

Product Features

Waterproof, Dust Tight and Corrosion ResistantSeamless polymeric outer shell provides IP68 ingress protection against moisture and dust intrusion and is specialized for superior chemical resistance. An additional protective coating is available which integrates a UV inhibitor and UV blocker for outdoor applications.Maintenance Free Direct AC Driverless DesignConnects directly to AC line voltage without an LED driver or electrolytic capacitors, for ease of use and extreme reliability and lifetime. Requires zero maintenance.Compact Low-Profile Housing1" round patented linear housing provides a remarkably slim low profile allowing installation in almost any application. The single piece enclosure design is lightweight, incredibly easy to mount and creates a modern, sleek result with no seals or gaskets.Heavy Duty Quick-Connect CablingHeavy duty cabling and push-and-click connectors make TRX series fixtures easily to install and daisy chain for long linear runs.Strong, Lightweight and Low Profile 1" Low Profile, Corrosion-Resistant, IK07 Impact Certified HousingFast & Secure InstallationStainless Steel Mounting Clip with Large 1/2'' Screw Holes for Easy, Secure Mounting.

Specifications Application

Specifications Backplate

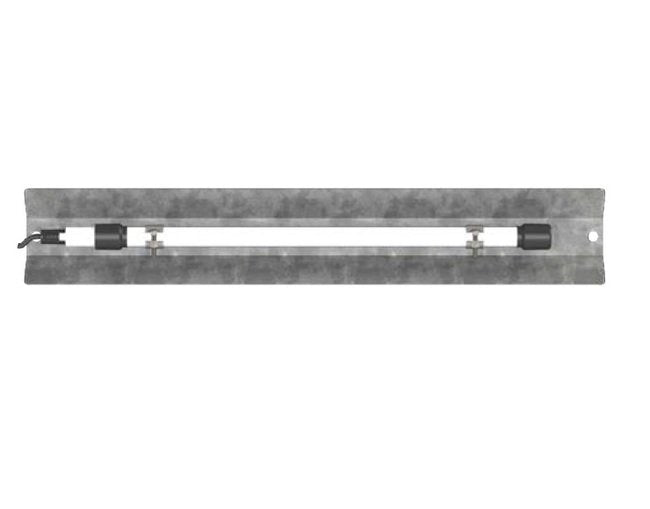

(Backplate) Easy Mount and Protective Backplate

Specifications Color Rendering Index Cri

Specifications Color Temperature

5000 K

Specifications Current

0.060 A

Specifications Dimming

Yes, TRIAC Dimmable

Specifications Length

2 ft

Specifications Regulatory Qualification

cULus Listed | NEMA 4X Rated | NEMA 6P Rated | UL Listed for Wet Locations

Specifications Through Wired

(Standard) Connectors on Input & Output for ability to Daisy Chain fixtures

Specifications Ultraviolet Uv Protection

Outdoor-Rated with Ultraviolet (UV)-Blocking Coating
