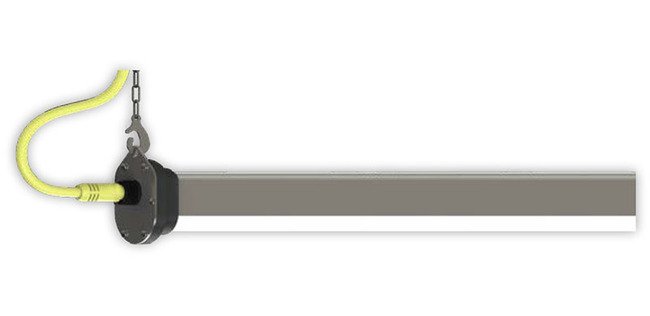

2 Feet (ft) Linear Wash Down Light Emitting Diode (LED) Standard Output (SO) Luminaire Light

Name: 2 Feet (ft) Linear Wash Down Light Emitting Diode (LED) Standard Output (SO) Luminaire Light
Brand: G&G Industrial Lighting
SKU: LIN-9f50f1
Price: 49.99 USD
Availability: OutOfStock

SKU:LIN-9f50f1

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

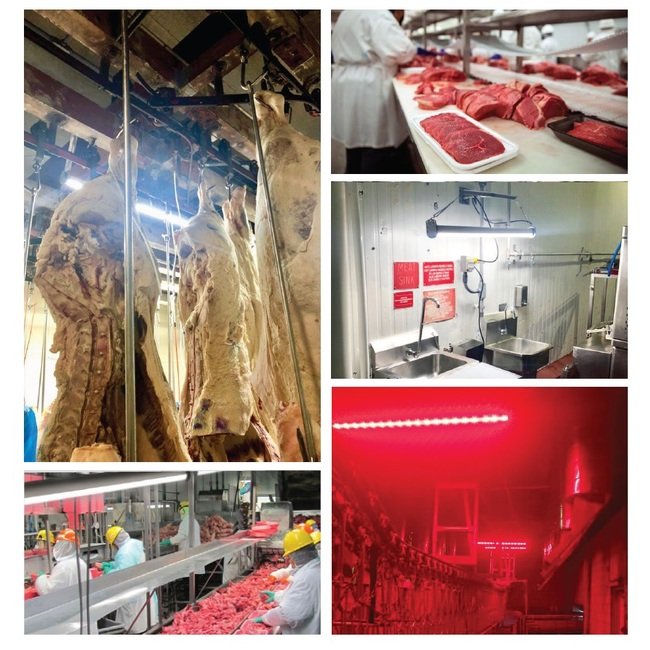

Linear Wash Down LED Luminaire for Task, Inspection & Area Lighting in Food Processing Linear. Up To 20,000 Lumens, High-Pressure Hose Down, NSF Rated.

Product Specifications

Construction And Materials

316 SS brackets and hardware.Integrated heavy-duty aluminum heat spreader.Seamless polymeric outer shell provides IP69K ingress protection and is specialized for superior chemical resistance.All G&G luminaires and components (with the exception of our LED boards and drivers) are proudly manufactured and assembled in the USA.

Lumen And Power Data Current At 120 Volt V Voltage

0.23 A

Lumen And Power Data Current At 277 Volt V Voltage

0.10 A

Lumen And Power Data Lumens

3,750 lm

Lumen And Power Data Wattage

28 W

Alternating Current Ac Input Voltage

120 to 277 V

Ambient Temperature

-20 to 60 ºC

Efficacy

130+ lm/W

Illuminance

290 FC at 3' (Standard Output, 90 CRI)

Light Emitting Diode Led L70 Time At 25 Degr

140,000 h

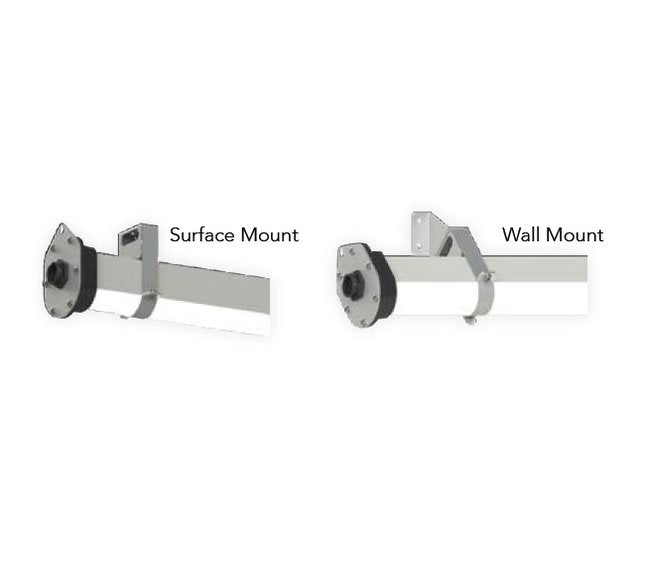

Mounting

Cable/Chain Mount Included Surface Mount Optional

Warranty

5 y

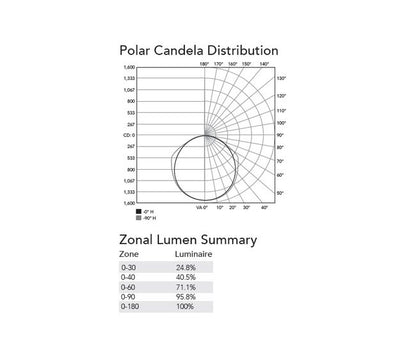

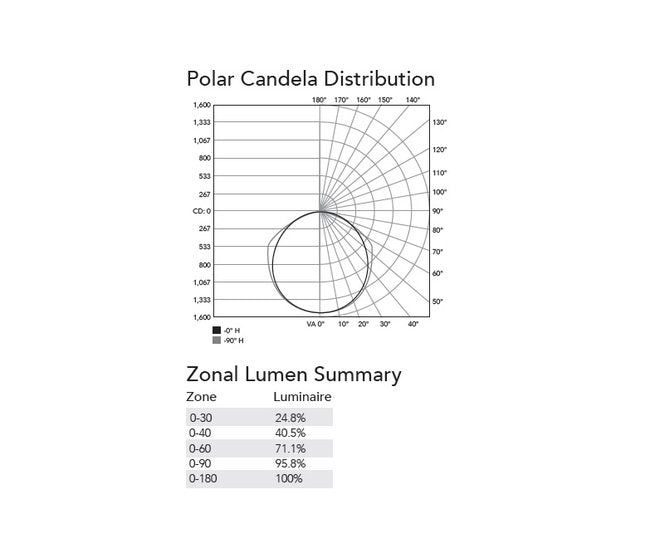

Photometry

Based on DTC Report Test #: 14404-TFixture photometry has been conducted by a NVLAP accredited testing laboratory in accordance with IESNA LM-79-08. IESNA LM-79-08 specifies the entire luminaire as the source resulting in a fixture efficiency of 100%.

Product Features

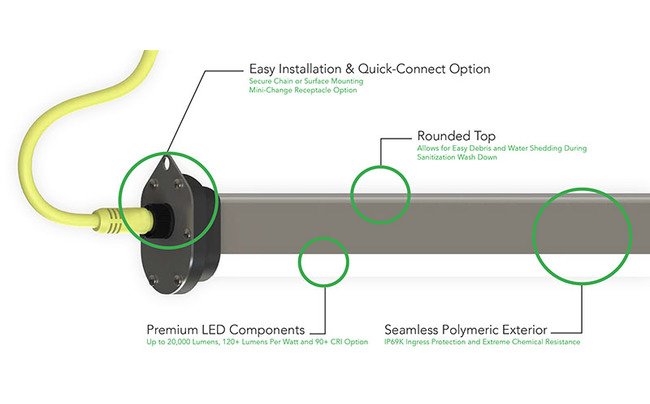

Compact High Output Design - Engineering around the latest in LED technology to achieve a low-profile 2'' design. The end result is a strong, compact luminaire that is installation friendly and packs a punch at up to 20,000 lumens. Rounded top allows for water and debris to easily roll off during sanitization wash down process.Superior Waterproof and Chemical Resistance - A seamless copolyester outer shell provides IP69K ingress protection (1500 PSI) along with extreme chemical resistance. Designed for heavy hosedown applications and/or daily sanitation.Coextruded Copolyester/Aluminum Housing - Our patented process combines copolyester and aluminum together, with no seals or gaskets. The result is a single piece enclosure with excellent heatsinking characteristics for long lifetime.Easy Installation and Quick-Connect Option - Secure Chain or Surface Mounting, Mini-Change Receptacle Option.Rounded Top - Allows for Easy Debris and Water Shedding during Sanitization Wash Down.Premium LED Components - Up to 20,000 Lumens, 120+ Lumens Per Watt and 90+ CRI Option.Seamless Polymeric Exterior - IP69K Ingress Protection and Extreme Chemical Resistance.

Specifications Application

Specifications Color

Blue | Red

Specifications Color Rendering Index Cri

90+

Specifications Color Temperature

4000 K

Specifications Length

2 ft

Specifications Lumen Output

1,875 lm/ft

Specifications Option

Through wired with Mini-Change Receptacle on Input & Output, 3 Pole (Daisy Chain)

Specifications Output Type

Standard Output (SO)

Specifications Regulatory Qualification

cULus Listed | NEMA 4X Rated | NEMA 6P Rated | NSF Certified | UL Listed for Wet Locations
