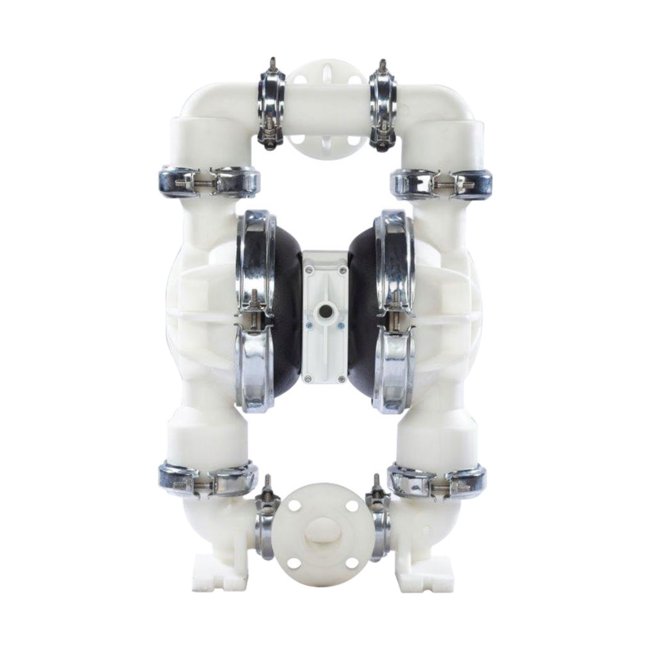

2" Flanged Polypropylene PWR-FLO AODD Pump with Viton Diaphragm
2" Flanged Polypropylene PWR-FLO AODD Pump with Viton Diaphragm
SKU:MAN-af42cd
Efficient 2" Flanged Polypropylene AODD Pump with Viton Diaphragm for reliable liquid transfer in industrial settings.
Regular price
$849.99
Regular price
Sale price
$849.99
Unit price
per
Initiate Order
2" Flanged Polypropylene PWR-FLO AODD Pump with Viton Diaphragm
$849.99
Quantity: 1
Claim Your Seller Account
2" Flanged Polypropylene PWR-FLO AODD Pump with Viton Diaphragm
$849.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 2" Flanged PWR-FLO™ AODD Pump with Polypropylene construction and Viton/FKM Diaphragm is a reliable and efficient air-driven double diaphragm pump designed for handling large solids and slurries. Featuring an innovative asymmetrical spool design, this pump ensures excellent reliability in on/off liquid transfer applications like filling and batching. With its chemically resistant polypropylene air valve and center section, this pump is a durable drop-in replacement for Wilden® AODD pumps, offering a max flow rate of 156 gpm. Its design and materials meet the highest quality standards, making it ideal for industrial and institutional use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

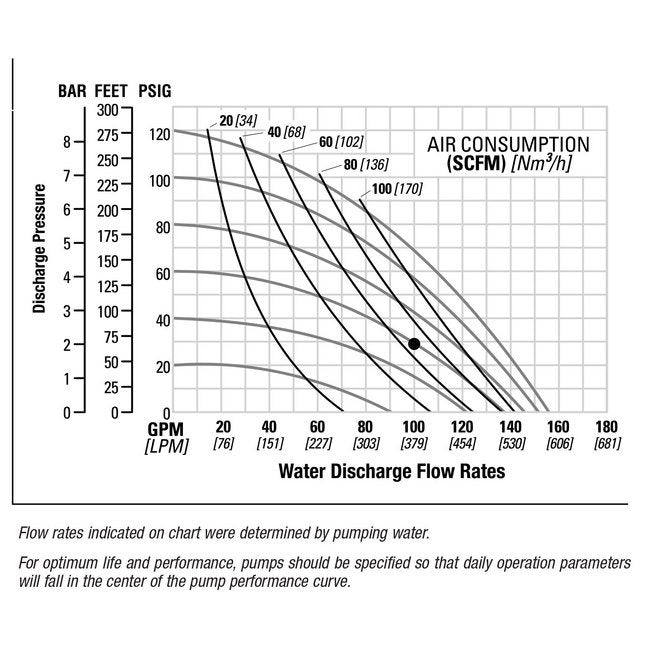

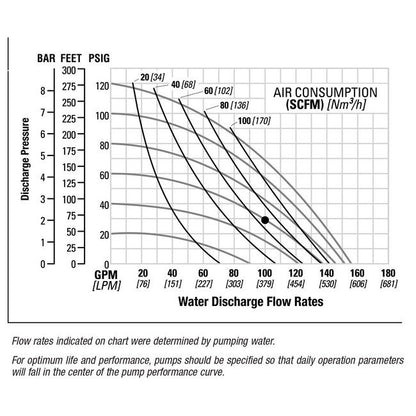

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
PTFE (with Neoprene back-up)
Specifications Check Valve Seat
Polypropylene
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
Viton/FKM
Specifications Displacement Per Cycle
0.73 gal | 2.76 lit
Specifications Elastomers
Viton Encapsulated, PTFE (with Neoprene back-up), PTFE (with Neoprene back-up)
Specifications Fluid Inlet Size
2 Flanged in | 51 Flanged mm
Specifications Fluid Outlet Size
2 Flanged in | 51 Flanged mm
Specifications Height
30 Inch | 30 in | 769.62 mm
Specifications Length
30 Inch | 30 in | 0.7696 m | 769.62 mm
Specifications Max Flow Rate
156 gpm | 590.52 lpm
Specifications Moc
Polypropylene
Specifications Model
NPF50/PAPP/VT/TF/PTV/FL/C
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-226811
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Polypropylene
Specifications Width
13 Inch | 13 in | 0.3327 m | 332.74 mm
