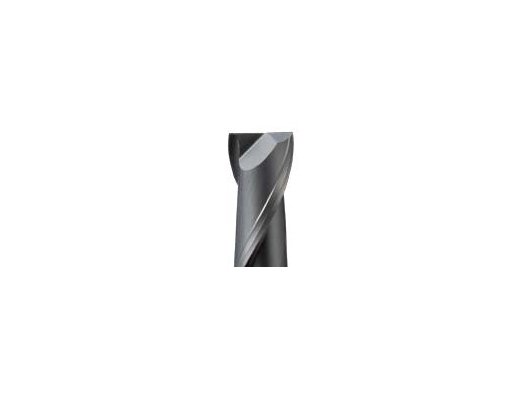

2-Flute Diamond Coated Square End Mill

Name: 2-Flute Diamond Coated Square End Mill
Brand: EDM Sales & Supplies, Inc.
SKU: DIA-04de89
Price: 49.99 USD
Availability: OutOfStock

SKU:DIA-04de89

Premium 2-flute diamond coated end mill for superior cutting performance and longevity in graphite, composite materials, and ceramics.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

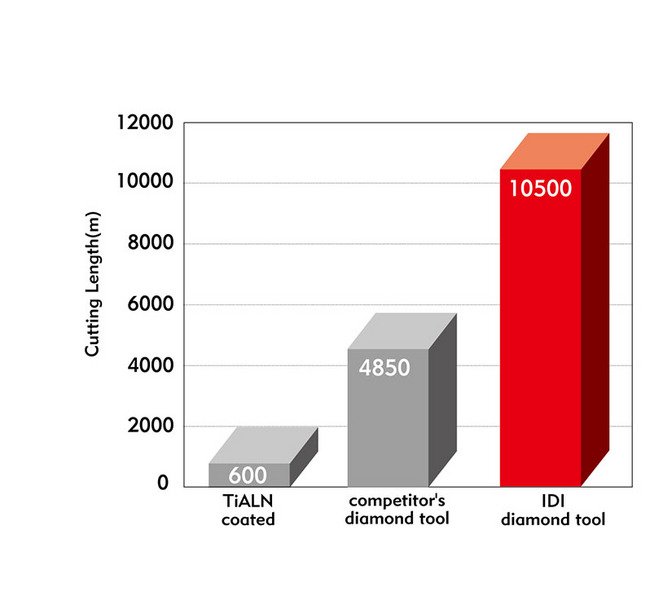

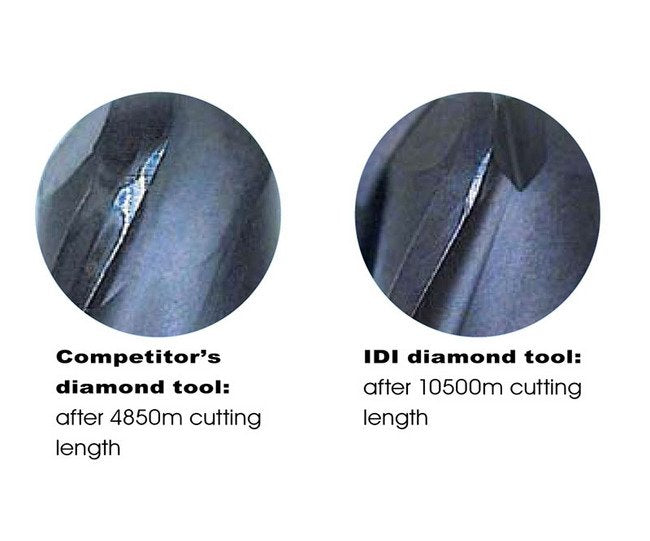

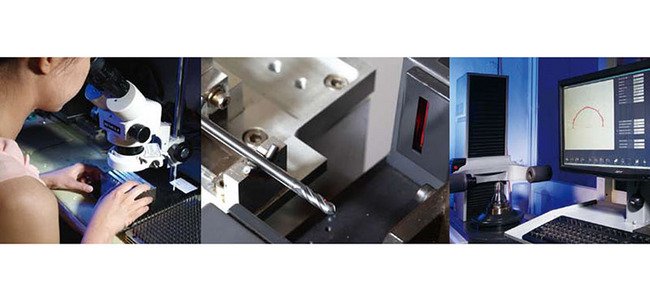

Experience unparalleled cutting performance and exceptional tool longevity with the 2-Flute Diamond Coated Square End Mill from IDI. This premium end mill is crafted with a specially sintered substrate, high-performance tool geometry, and a superior diamond coating, ensuring longevity that exceeds uncoated tools by 12-20 times. Utilizing advanced measuring equipment like the Zoller Measuring Machine and Mitutoyo Laser Scan Meter, each tool undergoes meticulous inspection to guarantee perfection. Ideal for graphite milling in semiconductor and die mold industries, as well as for composite materials like CFRP and ceramics, this end mill delivers precision and durability for your machining needs.

Product Specifications

Applications

Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining

Cutting Condition 0

Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing

Note 0

Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

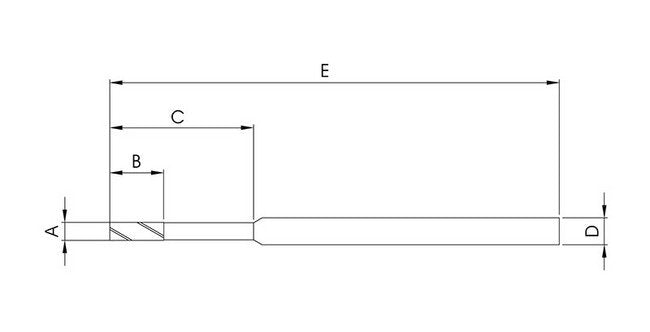

Specifications Cutting Diameter A

0.5 mm

Specifications Flute Length B

1 mm

Specifications Number Of Flute

Specifications Overall Length E

40 mm

Specifications Reach C

7 mm

Specifications Shank Diameter D

3 mm
