2" High Flow Coalescing Air Filter - Arrow Pneumatics F4/F5/F6 Series
2" High Flow Coalescing Air Filter - Arrow Pneumatics F4/F5/F6 Series
SKU:ARR-524da9
High-performance 2" Coalescing Air Filter with 99.97% efficiency. Ideal for clean rooms & food industry. Durable construction & easy maintenance.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
2" High Flow Coalescing Air Filter - Arrow Pneumatics F4/F5/F6 Series
$349.99
Quantity: 1
Claim Your Seller Account
2" High Flow Coalescing Air Filter - Arrow Pneumatics F4/F5/F6 Series
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

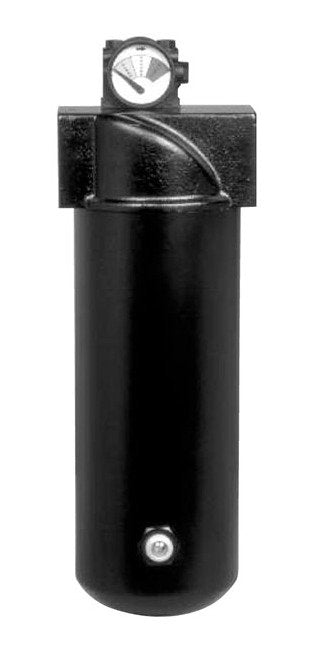

The Arrow Pneumatics 2 Inch High Flow Coalescing Air Filter from the F4/F5/F6 Series is a top-quality solution for removing oil aerosols and sub-micron particles. With a maximum flow capacity of 515 scfm and a 0.03 micron borosilicate glass fiber element, this filter ensures 99.97% efficiency, making it ideal for critical applications like clean rooms and food industry processes. The black-coated aluminum body and baffle material offer durability, while the manual 1/4" NPT twist drain facilitates easy maintenance. Compliant with stringent industry standards, including FAR requirements and Section 508 accessibility guidelines, this filter guarantees high performance and long-lasting filtration.
Product Specifications
Features 0
0.03 micron fiber elementLow pressure dropManual 1/4" NPT twist drain
Kits Bowl Kits
Metal with sight - BKF510WMetal without sight - BKF510Metal with sight - BKF518WMetal without sight - BKF518Metal with sight - BKF528WMetal without sight - BKF528
Kits Element Kits
0.03 micron - EKF510, EKF518, EKF5280.01 micron - EKF510A, EKF518A, EKF528A
Kits Kits
Float for External Drain - 5200Drain Trap Kit - DKTF2
Kits Repair Kit
Repair kit - RKF511, RKF519, RKF529Replacement sight kit - BSF510
Note 0
Oil captured by Arrow Coalescing Filters will not retrain and move downstream.
Option 0
Add suffix to part number in alpha orderA - 0.01 micron element - F510-08AD - Differential pressure gauge - F510-08DT - External Float Drain - F510-08TW - Metal bowl with sight glass - F510-08W
Product Line Information 0
F4 oil removing filters offer general industrial filtration with low pressure drop and long element life. They are often used with older compressors where downstream oil carryover is excessive and when longer element life and low pressure drop are a concern.F5 coalescing filters are used for high filtration of oil aerosols and sub micron particles. They are often used with critical instrumentation; paint spraying equipment; more sophisticated air systems; blow molding bottling; in the food industry, and where air blows on a finished product. The 0.01 micron grade "A" element is offered for the most critical filtration applications, such as those found in clean rooms.F6 adsorber filters were engineered specifically for critical applications that will not tolerate the presence of oil vapors. If the compressed air has been prepared by a suitable refrigerated dryer and F5 oil removing filter, the F6 Adsorber will insure oil concentrations of 0.01 PPM by weight. In all cases, an F5A coalescing filter must precede an F6 Adsorber filter. To prevent any particle migration downstream, an F3 with 3 micron element should be installed downstream for total system protection.
Specifications Baffle Material
Plastic
Specifications Body
Black Coated Aluminum
Specifications Bowl Capacity
200 oz
Specifications Brand
Arrow Pneumatics

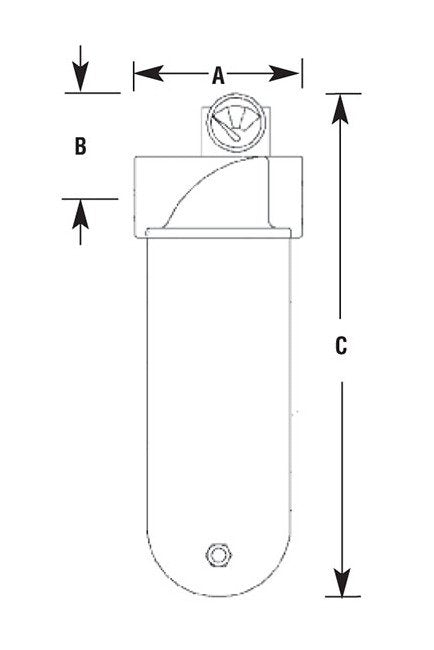

Specifications Dimension A
6-1/2 in
Specifications Dimension B
2 in
Specifications Dimension C
28-3/4 in
Specifications Elements
0.03 micron borosilicate glass fiber D.O.P. Efficiency: 99.97%, Particle size removal, Remaining oil content by wt.: 0.015 PPM0.01 micron borosilicate glass fiber D.O.P. Efficiency: 99.999%, Particle removal size, Remaining oil content by wt.: 0.0005
Specifications Maximum Flow
515 scfm
Specifications Maximum Supply Pressure For Metal Bowl
250 psig
Specifications Maximum Supply Pressure For Metal Bowl With Sight
250 psig
Specifications Metal Bowl Material
Black Coated Aluminum
Specifications Metal Bowl Material With Sight
Black Coated Aluminum

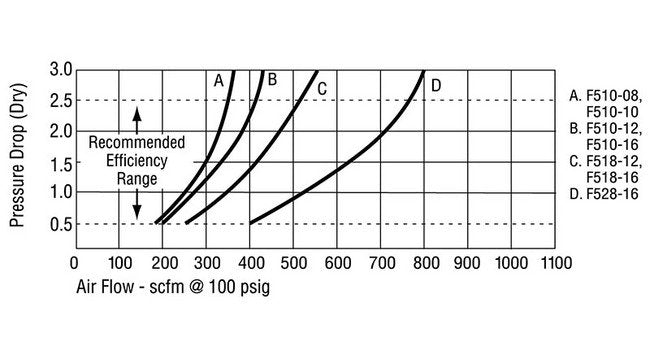

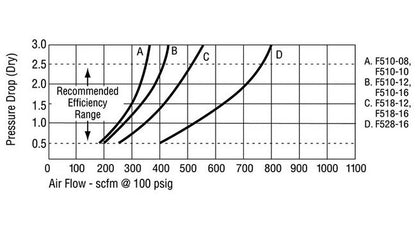

Specifications Note For Maximum Flow
Flow scfm based on 2.5 psi Δp at 100 psig inlet.
Specifications Operating Temperature Range For Metal Bowl
40 to 160 ºF
Specifications Operating Temperature Range For Metal Bowl With S
40 to 160 ºF
Specifications Pipe Size
2 in
Specifications Seals
Buna N
Specifications Weight
19 lb
