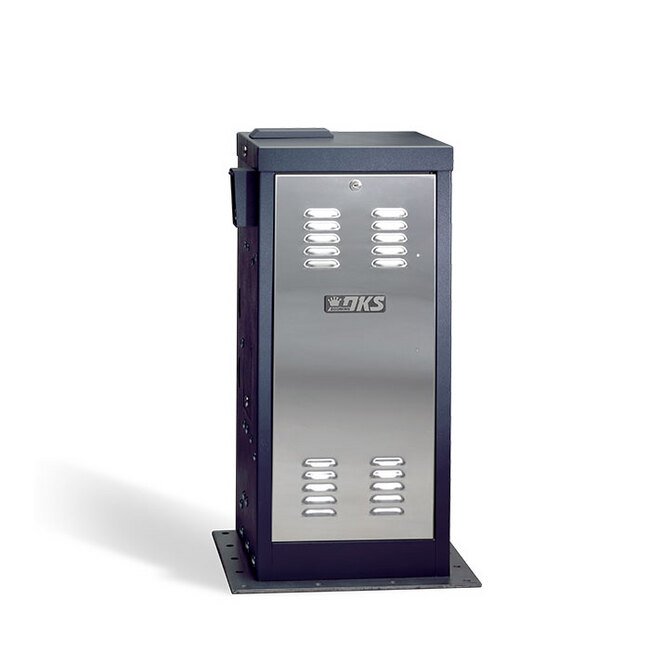

2 HP Maximum Security Vehicular Slide Gate Operator
2 HP Maximum Security Vehicular Slide Gate Operator
SKU:MAX-e4d09d
Enhance security with the 2 HP Maximum Security Vehicular Slide Gate Operator from DoorKing®. Built for industrial and high-security applications.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
2 HP Maximum Security Vehicular Slide Gate Operator
$2,999.99
Quantity: 1
Claim Your Seller Account
2 HP Maximum Security Vehicular Slide Gate Operator
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 2 HP Maximum Security Vehicular Slide Gate Operator from DoorKing® is specifically designed for industrial and maximum security applications, ensuring fail-secure operation for enhanced security. With features like anti-tailgating circuit, adjustable partial open, and adjustable gate speed control, this operator provides precise control over gates up to 100 ft in length and 2000 lb in weight. It offers an Emergency Close feature, multiple convenience outlets, and compatibility with plug-in loop detectors, making it ideal for high-security areas like loading docks, factories, and airport security zones.
Product Specifications
Additional Information Additional Information
Our experience in the industry has taught us not to overlook this critical component - especially considering our Operators can move gates up to 160 feet long and 25,000 pounds. Not only can we move massive gates, but we can move them quickly in an emergency at a rate of 4 feet per second.A customer-favorite feature is our Gate Reporting, which delivers the who-where-when of entry and exit, and also alerts users to gate obstruction and other issues. While the sheer strength of our Gate Operators is top tier, weâve built them with a host of valuable features to create the most robust Maximum Security line on the market. For reliable perimeter security built by experience, choose DKS.This assures your security gate is open the absolute minimum amount of time necessary.
Advantages Advantages
2 horse power.Up to 75 ft gates weighing as much as 2000 lb.Adjustable solid state speed control 1/2 to 2 ft/sec.
Applications Applications
Maximum Security applications only - such as industrial locations:Loading DocksFactoriesAirport Security AreasSea Ports, Etc.
Duty Cycle Type Duty Cycle Type
Continuous
Key Features Key Features
Direct driven limit nuts.Anti-tailgating feature.Adjustable mid-stop.Gate tracker reporting output.Ports for plug-in loop detectors.Two convenience outlets.Fail-secure operation includes crank for manual operation.Programming switches.Built-in reset switch.Built-in power On/Off switch.
Options Options

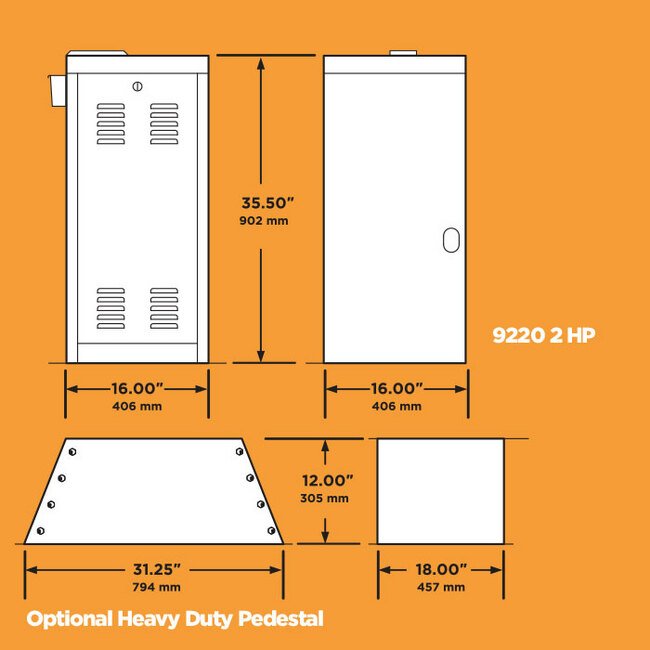

Heavy-Duty Mounting Pedestal is recommended for gates weighing over 1500 lb and is required if Chain Tray is usedChain Tray Kit (p/n 2601-270) is available in 10 ft lengths and is recommended on gates exceeding 20 ft in lengthRed / Green Traffic Signal provides a visual indication when it is OK for traffic to proceed Plug-in loop detectors.Heater kit for cold environments.Surge suppressors.
Specifications Alternating Current Ac Voltage
208 V | 230 V | 460 V
Specifications Anti Tailgate Feature
Yes
Specifications Class Of Operation
Class III | Class IV
Specifications Convenience Outlets
Yes
Specifications Direct Current Dc Convenience Open Option Availab
No
Specifications Gate Tracker Data Output
Yes
Specifications Limited Factory Warranty
5 y
Specifications Limit Switches
Direct Driven Limit Switches for precise gate control
Specifications Manual Release
Fail-Secure/Crank
Specifications Maximum Gate Length
100 ft
Specifications Maximum Gate Weight
2000 lb
Specifications Maximum Speed
2 ft/s
Specifications Minimum Speed
1 ft/s
Specifications Motor Power
2 hp
Specifications Mounting Type
Pad or PedestalRequires 9200-135 pedestal.
Specifications Number Of Convenience Outlets
2
Specifications Operating Temperature
-12 to 62 ºC | 10 to 140 ºF
Specifications Partial Open Limit
Yes
Specifications Ports For Plug In Loop Detectors
Yes
Specifications Slow Start Slow Stop Operation Type
Electronic
Specifications Standards
Edison Testing Laboratories (ETL) Listed
Specifications Usage
Industrial | Maximum Security
Technical Specifications Technical Specifications
Primary reduction is provided by a 30:1 gear running in a continuous oil bathOperator is shipped with Chain Brackets, Hardware and 20 ft of #60; ChainAdjustable Solid State Speed Control, 1/2 to 2 ft/secHousing is G90 Galvanized Steel painted charcoal grey with stainless steel Access DoorGATE TRACKERTM Reporting output provides operator data to a DKS 1833, 1835, 1837 or 1838 access control system (requires 2358 expansion board) Maximum gate length 75-feet.Maximum gate weight 2000 Lb., #60; chain. (Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.) Adjustable solid state speed control, 1/2 to 2 Ft./sec.Slow start / slow stop function.30:1 gear reduction running in a continuous oil bath.2 HP continuous-duty motor.208, 230 VAC single-phase; 208, 230, 460 VAC three-phase.Operator is shipped with chain brackets and 20-feet of #60; chain.Class III and IV applications only.ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or B2 entrapment protection devices are required to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)Dimensions: 20 "W x 35.5 "H x 18 "D
