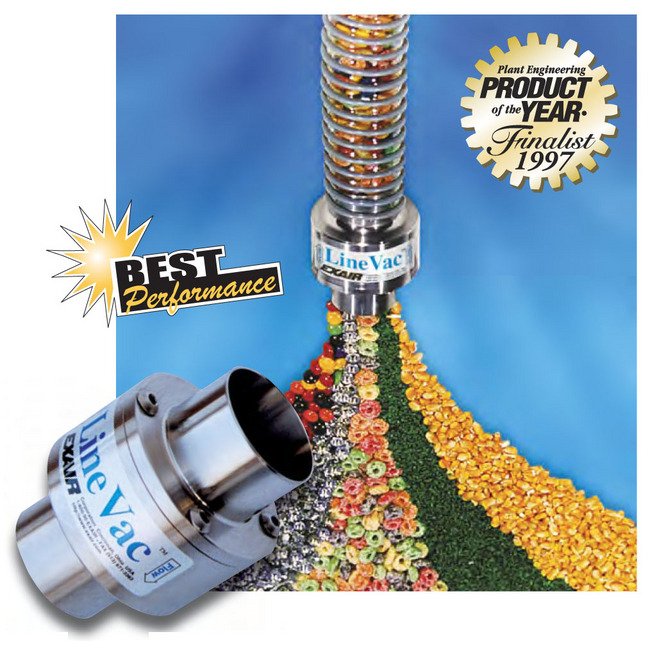

2 Inch 303 Stainless Steel Line Vac Conveyor
2 Inch 303 Stainless Steel Line Vac Conveyor
SKU:LIN-fb5c2b
Efficiently convey various materials with the 2 Inch 303 Stainless Steel Line Vac Conveyor. Compact, durable, and high throughput capability for versatile transfer applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
2 Inch 303 Stainless Steel Line Vac Conveyor
$299.99
Quantity: 1
Claim Your Seller Account
2 Inch 303 Stainless Steel Line Vac Conveyor
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 2 Inch 303 Stainless Steel Line Vac Conveyor is an efficient and cost-effective solution for conveying a wide range of materials including plastic pellets, food products, small parts, and more. Constructed with durable 303 stainless steel, this conveyor features a compact design with large throat diameters for maximum throughput. With an aluminum or stainless steel option, 11 available sizes, and the ability to connect to standard hoses or tubes, it offers versatility for various transfer applications. Enjoy high throughput capability, corrosion resistance, and a quiet operation with no moving parts, making it ideal for chip removal, filling operations, part transfer, and more.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Advantages
Aluminum or Stainless Steel | Compact | Eleven Sizes | Fits Standard Hose or Tube | High Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
45 SCFM | 1274 SLPM
Specifications Air Inlet
3/8 NPT
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Corrosion Resistance
Good
Specifications Dimension E
2.13 in | 54 mm
Specifications Dimension F
1.25 in | 32 mm
Specifications Dimension H
1.50 in | 38 mm
Specifications Dimension I
1.17 in | 30 mm
Specifications Dimension J
2.34 in | 59 mm
Specifications Dimension K
0.28 in | 7 mm
Specifications Dimension L
1.48 in | 38 mm
Specifications Dimension M
0.06 in | 2 mm
Specifications Dimension N
2.13 in | 54 mm
Specifications Dimension O
0.28 in | 7 mm
Specifications Hose Size
2 in | 51 mm
Specifications Inlet Size
2 in | 51 mm
Specifications Inside Diameter
1.75 in | 45 mm
Specifications Material
303 Stainless Steel
Specifications Outlet Diameter
2 in | 51 mm
Specifications Outside Diameter
3.25 in | 83 mm
Specifications Overall Length
4.38 in | 111 mm
Specifications Overall Width
3 in | 76 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Temperature Rating
400 ºF | 204 ºC
Specifications Vacuum Pressure
-28.5 inWc | -7 kPa
