2 Inch 316 Stainless Steel Basic-Check Threaded In-Line Check Valve

2 Inch 316 Stainless Steel Basic-Check Threaded In-Line Check Valve

INL-2fba58

2" 316 SS Basic-Check® Valve: Reliable, precise metal-to-metal sealing, complies with ANSI and MSS standards.

$249.99
$249.99
Sale

Initiate Order

2 Inch 316 Stainless Steel Basic-Check Threaded In-Line Check Valve

2 Inch 316 Stainless Steel Basic-Check Threaded In-Line Check Valve

$249.99

Quantity: 1

Claim Your Seller Account

2 Inch 316 Stainless Steel Basic-Check Threaded In-Line Check Valve

2 Inch 316 Stainless Steel Basic-Check Threaded In-Line Check Valve

$249.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 2" 316 SS Basic-Check® Threaded In-Line Check Valve is a reliable and versatile valve suitable for a wide range of liquids, steam, and gases at various pressure and temperature conditions. With precision-lapped metal-to-metal sealing, it ensures tight shutoff of gas, steam, and liquid, making it ideal for applications requiring bubble-tight closure. This valve features stainless steel construction, spring-assisted silent closing, and easy maintenance, offering durability and long-term performance. It complies with ANSI B1.20.1, B16.11, and MSS SP-25 standards, meeting the quality requirements of institutional and government procurement.

Product Specifications

Application 0
Autoclaves | Boiler Feed & Discharge | Chemical Lines | Compressor Discharge | Condensate Lines | Cookers | Cooling Towers | Crude & Refined Product Lines | Cryogenics | Digester | Evaporators | Fly Ash System | Generator Inlet & Discharge | Hydraulic Lines | Metering Pumps | Mine Dewatering | Nitrogen Purge | Process Lines | Pump Discharge | Refrigeration | Steam Lines | Vacuum Breaker | Water Lines | Water Treatment
Available Soft Seat Materials Available Soft Seat Materials
Buna-N (-70 to 250ºF) | EPDM (-75 to 300ºF) | TFE®-Viton® (-40 to 400ºF) | Viton® (-40 to 400ºF) | Zelon® (37 to 450ºF)
Codes And Standards Ansi
B1.20.1 | B16.11
Codes And Standards Mss
SP-25
Features 0
1/4" to 2 1/2" Line size450 to 6000 CWPThreaded endsStainless Steel ConstructionSpring-assisted silent closingHorizontal or vertical installationTight shut-off - lapped disc & seatEasy MaintenanceVersatile

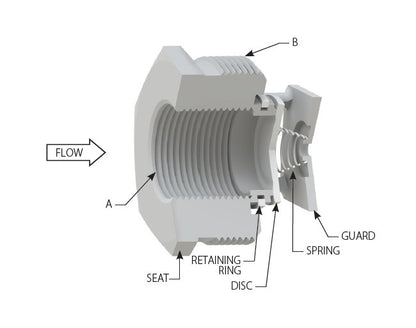

Materials Of Construction Disc
316 SS
Materials Of Construction Guard
CF8M
Materials Of Construction Retaining Ring
316 SS
Materials Of Construction Seat
303 SS/TFE®-Viton®
Materials Of Construction Spring
316 SS
Options 0
Inconel® 750 Spring Soft seat
Specifications Approx Net Weight Each
7.00 lb | 3.2 kg
Specifications Cold Working Pressure
450 psig | 31.0 barg
Specifications Cv
90
Specifications Ends
NPT (Threaded)
Specifications Friction Loss Feet Of Pipe
16
Specifications Friction Loss Meter Of Pipe
4.9
Specifications Line Size Inlet Fnpt A
2.00 in
Specifications Outside Thread Mnpt B
4.00 in
Specifications Series
Basic-Check®
Specifications Size
2.00 in | DN 50
Specifications Style
BSS
Specifications Temperature Rating
-40 to 400 ºF | -40 to 204.44 ºC
Specifications Valve Cracking Pressure
0.1 psi | 0.007 bar | 2.6 in.water | 66 mm.water | 4.8 mmHg
Specifications Valve Cracking Pressure Tolerance
±10%
Specifications Working Steam Pressure
315 psig
