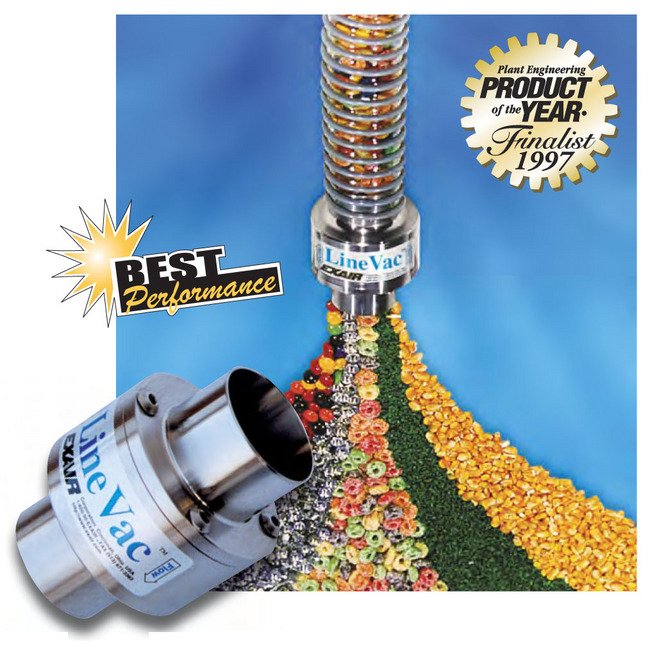

2 Inch 316 Stainless Steel Line Vac Conveyor
2 Inch 316 Stainless Steel Line Vac Conveyor
SKU:LIN-c1b3bf
Powerful 2-inch stainless steel conveyor for efficient material transfer in various industries. Compact, durable, and high throughput capability.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
2 Inch 316 Stainless Steel Line Vac Conveyor
$499.99
Quantity: 1
Claim Your Seller Account
2 Inch 316 Stainless Steel Line Vac Conveyor
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 2 Inch 316 Stainless Steel Line Vac Conveyor is a high-performance solution ideal for conveying plastic pellets, textiles, food products, and more. Crafted from durable 316 stainless steel, this conveyor features a 2-inch inlet and outlet diameter and is compatible with standard hoses or tubes. With excellent corrosion resistance and a temperature rating of up to 400°F, it excels in various applications including chip removal, material conveying, and waste removal. Its compact design, quiet operation, and high throughput capability make it a versatile and reliable choice for industries requiring efficient transfer systems.
Product Specifications
Specifications Advantages
Aluminum or Stainless Steel | Compact | Eleven Sizes | Fits Standard Hose or Tube | High Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
45 SCFM | 1274 SLPM
Specifications Air Inlet
3/8 NPT
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Corrosion Resistance
Excellent
Specifications Dimension E
2.13 in | 54 mm
Specifications Dimension F
1.25 in | 32 mm
Specifications Dimension H
1.50 in | 38 mm
Specifications Dimension I
1.17 in | 30 mm
Specifications Dimension J
2.34 in | 59 mm
Specifications Dimension K
0.28 in | 7 mm
Specifications Dimension L
1.48 in | 38 mm
Specifications Dimension M
0.06 in | 2 mm
Specifications Dimension N
2.13 in | 54 mm
Specifications Dimension O
0.28 in | 7 mm
Specifications Hose Size
2 in | 51 mm
Specifications Inlet Size
2 in | 51 mm
Specifications Inside Diameter
1.75 in | 45 mm
Specifications Material
316 Stainless Steel
Specifications Outlet Diameter
2 in | 51 mm
Specifications Outside Diameter
3.25 in | 83 mm
Specifications Overall Length
4.38 in | 111 mm
Specifications Overall Width
3 in | 76 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Temperature Rating
400 ºF | 204 ºC
Specifications Vacuum Pressure
-28.5 inWc | -7 kPa
