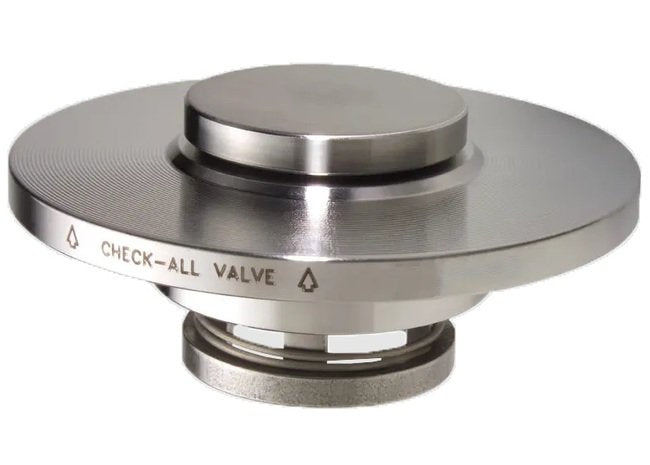

2 Inch FP Style Flange Insert Check Valve - 1.50 psi Standard Cracking Pressure
2 Inch FP Style Flange Insert Check Valve - 1.50 psi Standard Cracking Pressure
SKU:F1F-052335
Enhance your piping system with the durable 2 Inch FP Style Check Valve featuring a 1.50 psi cracking pressure.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
2 Inch FP Style Flange Insert Check Valve - 1.50 psi Standard Cracking Pressure
$149.99
Quantity: 1
Claim Your Seller Account
2 Inch FP Style Flange Insert Check Valve - 1.50 psi Standard Cracking Pressure
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

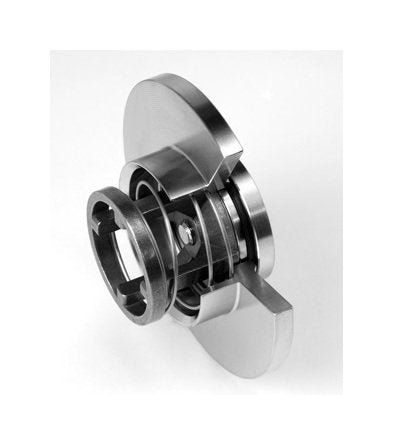

Upgrade your piping system with the Check-All® 2 Inch FP Style Flange Insert Check Valve. This valve offers a seamless installation process with its unique design, requiring two gaskets for added security. Crafted with high-quality materials like Polytetrafluoroethylene (PTFE) and 316 Stainless Steel, it ensures durability and reliable performance. With a standard cracking pressure of 1.50 psi, this valve is perfect for maintaining fluid flow control in various applications. Trust in this valve for superior quality, easy installation, and long-lasting functionality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information

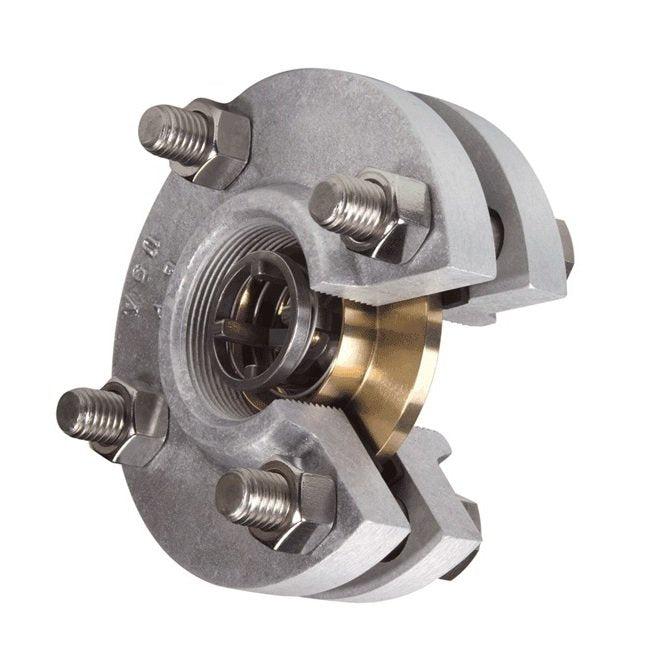

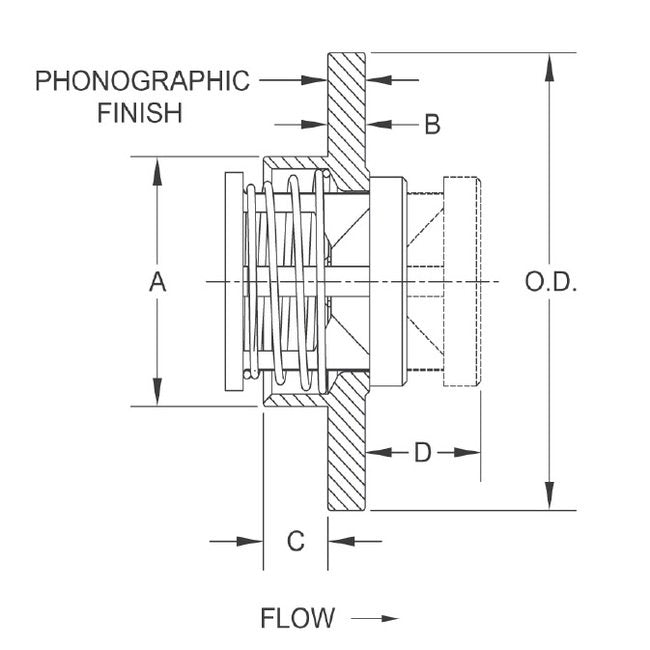

Flange Insert valves are designed to fit between two mating ANSI flanges. The "Spring Housing", designated by the "A" dimension (Check "A" dimension for clearance with pipe ID. Generally "A" dimension is designed for use in schedule 40 pipe for class 150 & 300 valves (F1). Order class 600 (F6) valves for schedule 80 pipe.), is designed to be inserted into the upstream pipe, thereby helping to center it in the pipe. Therefore, there must be clearance between the spring housing and the pipe or flange. Generally speaking, the FIV Class 150 and 300 valves (F1) are designed for standard schedule pipe with Class 150 or 300 flanges, and the FIV Class 600 (F6) valves are designed for schedule 80 pipe with Class 150, 300 or 600 flanges.The Flange Insert valve can also be used as a low pressure relief valve or vacuum breaker by using the desired spring settings. Many valves in this series can be supplied with B16.34 certification.
Note
Consult the factory for an optional Flag Tag which indicates that a check valve is present in the line.Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.Made in USA.
Specifications Body Material
Polytetrafluoroethylene (PTFE) = TF | Polyvinyl Chloride (PVC) = PV
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
2 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
200 psig
Specifications Note For Body Material
Standard spring material is 316 Stainless Steel.
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Seat Material
Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Plastic to Plastic = MT (No O-Ring) | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
K
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy B = HB | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
1.50 psi
Specifications Valve Style
FP
