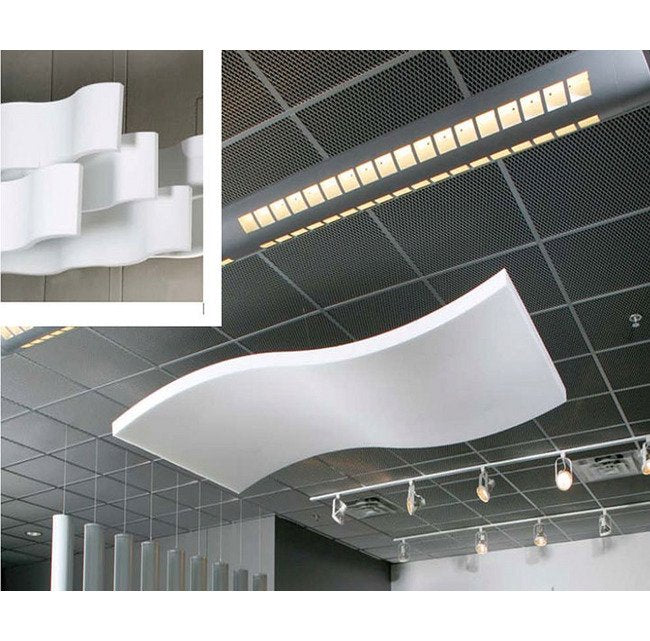

WHISPERWAVE™ Baffles provide exceptional acoustical control and design flexibility. Lightweight and easy to install, WHISPERWAVE™ products are ideal for use in classrooms, cafeterias, multipurpose rooms, indoor swimming pools, offices, libraries, religious facilities and other large open areas.
Product Specifications
Advantages
Standard and custom wave designsExceptional acoustical control across all frequenciesOffered in panel, baffle, ceiling cloud and awning optionsEasy installationClass 1 fire-rated
Installation
Corkscrew hangers are installed in the field for either wall-to-wall cable installation or ceiling-mounted cable installationCan be aligned in the same direction or arranged so that every other baffle is turned 90 degrees
Note
Ceiling-mounted cable installation
Physical Data Willtec Baffle Size
24 x 48 in
Physical Data Willtec Density
0.5 to 0.7 lb/ft³
Physical Data Willtec Fire Resistance
Class 1 per ASTM E 84 (all finishes) | Meets UL 1715 (Willtec® natural)
Physical Data Willtec Flame Spread Per Astm E 84
Natural : 5 | Painted : 10 | Hypalon®-coated : 25
Physical Data Willtec Fungus Resistance
Rating No. 0 per ASTM G21
Physical Data Willtec Long Term Service Temperature
302 ºF
Physical Data Willtec Material
Open-cell melamine-based foamWHISPERWAVE™ is made from willtec® foam, which is Class 1 fire-rated for flame spread and smoke density. willtec® natural also meets the corner burn test UL 1715. WHISPERWAVE™ is offered in natural white and gray and can be painted or Hypalon®-coated.
Physical Data Willtec Microbial Growth
Passes UL 181, Section 11
Physical Data Willtec Note For Baffle Size
Custom baffle sizes available
Physical Data Willtec Smoke Density Per Astm E 84
Natural : 50 | Painted : 10 | Hypalon®-coated : 65
Physical Data Willtec Toxicity
Passes University of Pittsburgh Toxicity of Smoke Emission test
Sound Absorption Average Sound Absorption Sabins Per Astm C423 9
12.7
Sound Absorption Finishes
Natural Gray | Natural White
Sound Absorption Sound Absorption Sabins 125 Hertz Hz Frequency
1.0
Sound Absorption Sound Absorption Sabins 1 Kilohertz Khz Frequen
16.3
Sound Absorption Sound Absorption Sabins 250 Hertz Hz Frequency
5.4
Sound Absorption Sound Absorption Sabins 2 Kilohertz Khz Frequen
18.7
Sound Absorption Sound Absorption Sabins 4 Kilohertz Khz Frequen
24.0
Sound Absorption Sound Absorption Sabins 500 Hertz Hz Frequency
10.8
Sound Absorption Thickness
2 in
