S-45 MW uses acoustical mineral wool and has a 25 dBA reduction STC=37 & NRC=1.0. The S-45 sound enclosure series have a 2" thick wall with a tube frame. The enclosure shall be designed to incorporate ventilation using acoustically treated air intake systems. The enclosure frame shall be made of aluminum square tubing frame that allows at least one wall and roof panel to be removable without utilizing any screws. A three directional slip fit corner fitting shall be provided at each of the eight corners to connect all aluminum frame pieces together. Acoustical panels shall have 16 gauge galvanized steel channel provided for bottom caps and top caps and openings.
Product Specifications
Additional Information

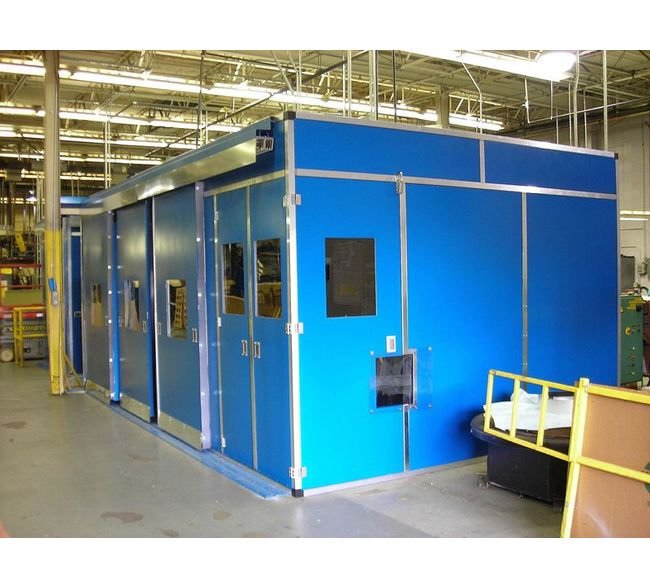

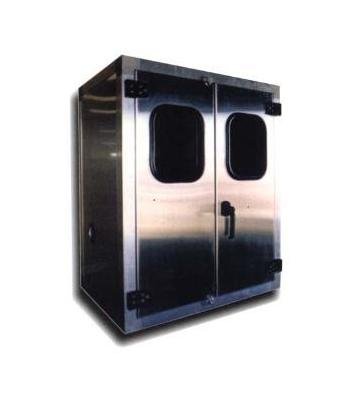

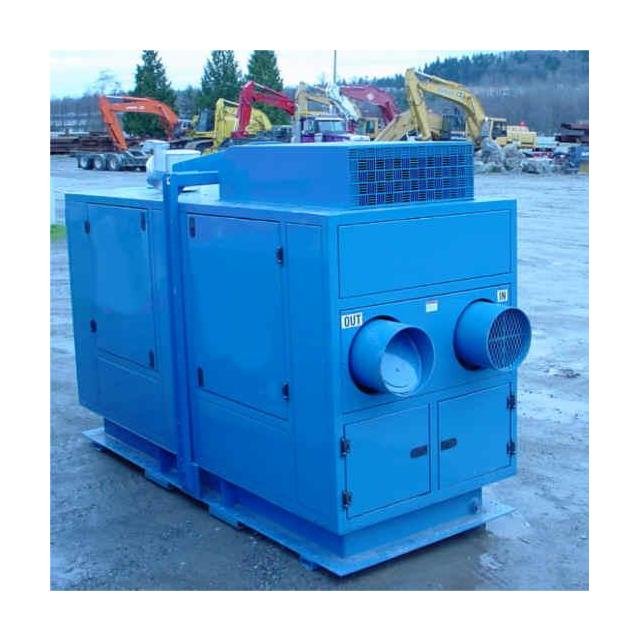

Wall and roof panels shall have exterior skin of 16-gauge damped galvanized steel filled with sound absorption material and 22-gauge perforated galvanized steel inner liner or wear resistant foam. Doors should be provided with acoustic seals on all four sides with galvanized, stainless steel, or nylon hinges and handles. Removable panels are easily removed via a quick release retainer clamps.Sound Enclosures are a highly effective means of reducing the noise emanating from industrial or mechanical equipment. Also known as noise control enclosures, acoustic enclosures, sound booths, steel enclosures, or machine and equipment enclosures these self-supporting noise barriers enclose noisy equipment without limiting access or impeding machine function. We offer options such as acoustic rated doors and windows, fully removable wall and roof panels, passive or forced air ventilation packages, electrical and lighting, and turnkey installations. Common equipment applications include compressors, generators, blowers, hydraulic pumps, industrial fans, vibratory bowl feeders, routers, print presses, plastic grinders, and many other noise offenders. Let us design an enclosure to meet your noise reduction goals. ArtUSA® Noise Control Products, Inc. Noise Control Barrier Walls are engineered, modular sound panels designed for high sound transmission loss of outdoor noise. Typical customers have chillers, substations, fans, blowers, compressors, air conditioners and other outdoor mechanical equipment cause disturbing noise at its neighbor’s property line. Our engineered sound panels are specifically designed and constructed with environmentally durable composite construction that absorbs sound energy and shields offensive noises. Steel Sound Enclosures for Presses, Grinders, Milling, Blowers and other in-plant machinery and processes may require an Acoustic Steel Sound Enclosure. Our modular steel panels offer large sound reduction while providing for ventilation, maintenance accessibility, lighting and other production requirements.
Alum A Frame Corners
Item # - 106824Item Name - C-45 CornerColor - NaturalQuantity - EachItem # - 106819Item Name - C-25 CornerColor - NaturalQuantity - Each
Alum A Frame Handles
Item # - AH1051Item Name - MFG85 Small HandleColor - NaturalQuantity - EachItem # - 119126Item Name - MFG85-HDWR Small HandleColor - NaturalQuantity - EachItem # - AH1052Item Name - MFG90 Large HandleColor - NaturalQuantity - EachItem # - 119128Item Name - MFG90-HDWR Large HandleColor - NaturalQuantity - Each
Alum A Frame Hinges
Item # - 108767Item Name - CFG190 Fiberglass Black HingeColor - NaturalQuantity - EachItem # - 119129Item Name - CFG190 Fiberglass Black Hardware HingeColor - NaturalQuantity - EachItem # - 113534Item Name - CFG170 Fiberglass Black HingeColor - NaturalQuantity - EachItem # - 119130Item Name - CFG170 Fiberglass Black Hardware HingeColor - NaturalQuantity - EachItem # - 109410Item Name - CFG140 Fiberglass Black HingeColor - NaturalQuantity - EachItem # - 119131Item Name - CFG140 Fiberglass Black Hardware HingeColor - NaturalQuantity - Each
Alum A Frame Parts
Item # - 106825Item Name - P-45 ProfileColor - NaturalQuantity - 20 ft LengthItem # - item-1414Item Name - P-45 (Pre-Cut) ProfileColor - NaturalQuantity - Per FootItem # - 106826Item Name - OM-45 OmegaColor - NaturalQuantity - 20 ft LengthItem # - item-1416Item Name - OM-45 (Pre-Cut) OmegaColor - NaturalQuantity - Per FootItem # - 107416Item Name - OMJ-45 Omega JointColor - NaturalQuantity - EachItem # - 106820Item Name - P-25 ProfileColor - NaturalQuantity - 20 ft LengthItem # - item-1420Item Name - P-25 (Pre-Cut) ProfileColor - NaturalQuantity - Per FootItem # - 106822Item Name - OMS-25 OmegaColor - NaturalQuantity - 20 ft LengthItem # - item-1422Item Name - OMS-25 (Pre-Cut) OmegaColor - NaturalQuantity - Per FootItem # - 107578Item Name - OM-25 OmegaColor - NaturalQuantity - 20 ft LengthItem # - item-1424Item Name - OM-25 (Pre-Cut) OmegaColor - NaturalQuantity - Per FootItem # - 107579Item Name - OMJ-25 Omega JointColor - NaturalQuantity - EachItem # - 106821Item Name - T, T3-25 Three BranchColor - NaturalQuantity - EachItem # - 107577Item Name - T, T4-25 Four BranchColor - NaturalQuantity - EachItem # - item-1429Item Name - Cast AluminumColor - NaturalItem # - item-1431Item Name - Black ThermoplasticColor - NaturalItem # - 107033Item Name - Angle LaggingColor - NaturalQuantity - EachItem # - 106491Item Name - MFG140P Door LatchColor - NaturalQuantity - Each
Alum A Frame Retainers
Item # - 106690-0Item Name - B40 Panel RetainerColor - NaturalQuantity - EachItem # - 106690-1Item Name - B40FGC Panel RetainerColor - NaturalQuantity - EachItem # - 107495Item Name - Omega RetainerColor - NaturalQuantity - Each
Features
Options Include:High STC rated panelsPainted FinishStainless steel or Aluminum construction
Specifications Finishes
Aluminum | Galvanized | Paint | Powder Coat | Stainless Steel
Specifications Material
Stainless Steel | Aluminum
Specifications Noise Reduction Coefficient Nrc Rating
1.0
Specifications Ship Size
Custom
Specifications Sound Transmission Class Stc Rating
37
Specifications Wall Thickness
2 in
