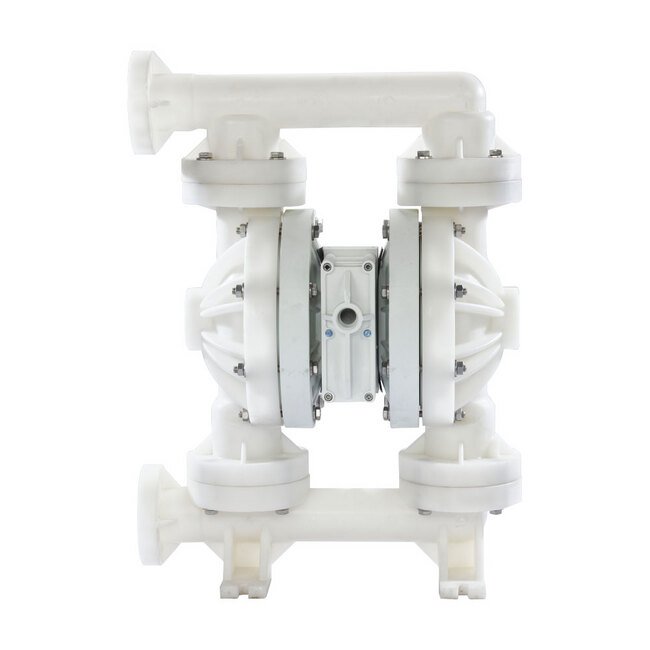

2-Inch Polypropylene Pwr-Flo AODD Pump with Santoprene Diaphragm
2-Inch Polypropylene Pwr-Flo AODD Pump with Santoprene Diaphragm
SKU:MAN-633591
Enhance liquid transfer efficiency with our 2-Inch Polypropylene AODD Pump with Santoprene Diaphragm.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
2-Inch Polypropylene Pwr-Flo AODD Pump with Santoprene Diaphragm
$899.99
Quantity: 1
Claim Your Seller Account
2-Inch Polypropylene Pwr-Flo AODD Pump with Santoprene Diaphragm
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your pumping system with the 2-Inch Polypropylene Pwr-Flo AODD Pump featuring a Santoprene Diaphragm. This industrial-grade pump is a drop-in replacement for Wilden AODD pumps, offering superior handling of large solids and slurries. The Polypropylene construction ensures chemical resistance, while the Santoprene Diaphragm enhances durability for continuous on/off liquid transfer. With a maximum flow rate of 165 gpm, this pump is perfect for filling and batching applications. Experience reliability and efficiency with the PWR-FLO asymmetrical spool design.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

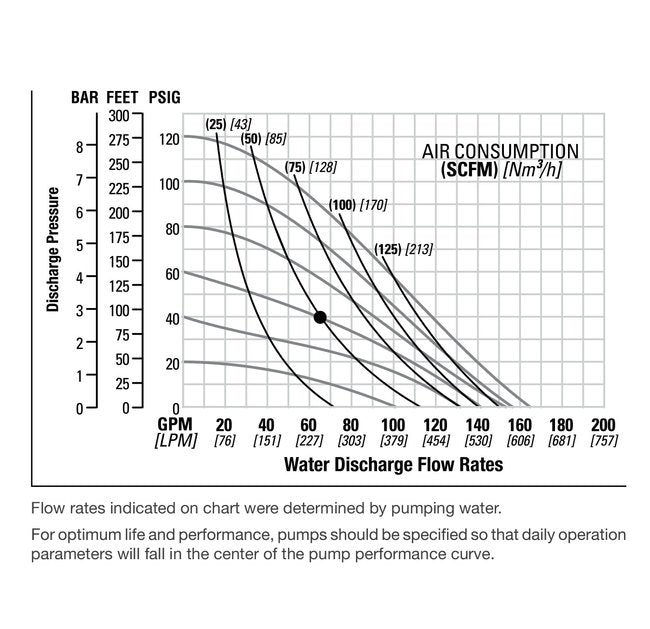

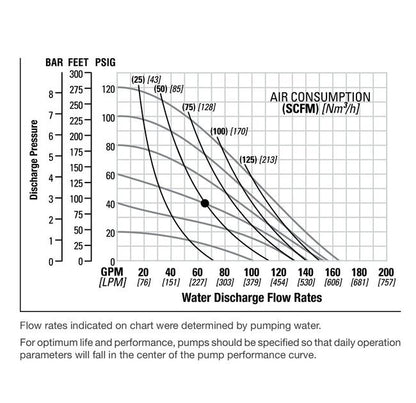

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Polypropylene
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
Santoprene®
Specifications Displacement Per Cycle
0.727 gal | 2.75 lit
Specifications Elastomers
Santoprene®, Santoprene®
Specifications Fluid Inlet Size
2 in | 51 mm
Specifications Fluid Outlet Size
2 Flange in | 51 Flange mm
Specifications Height
32 Inch | 32 in | 805.18 mm
Specifications Length
32 Inch | 32 in | 0.8052 m | 805.18 mm
Specifications Max Flow Rate
165 gpm | 624.59 lpm
Specifications Model
NPF50/PPPP/SN/SN/PSN/FL/B
Specifications Non Wetted Material
Polypropylene
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-1269-1
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Polypropylene
Specifications Width
14 Inch | 14 in | 0.3531 m | 353.06 mm
