2 Inch Spinmeister Extreme Duty Inlet Air Filter with Paper Element
2 Inch Spinmeister Extreme Duty Inlet Air Filter with Paper Element
SKU:SPI-99a0a0
Enhance filtration efficiency with the 2 Inch Spinmeister Air Filter for high dust settings. Ideal for blowers, engines, and fans.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
2 Inch Spinmeister Extreme Duty Inlet Air Filter with Paper Element
$89.99
Quantity: 1
Claim Your Seller Account
2 Inch Spinmeister Extreme Duty Inlet Air Filter with Paper Element
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

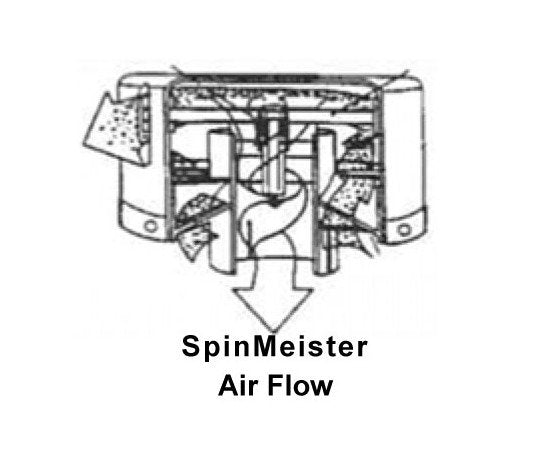

Experience extreme-duty filtration with the 2 Inch Spinmeister Extreme Duty Inlet Air Filter. Designed for high dust environments, this filter boasts 85% efficiency at 15 microns, extending filter element life. Featuring a 99%+ efficient pleated paper element and a durable carbon steel housing, it ensures optimal filtration for blowers, engines, fans, and more. With a compact design, multiple configurations, and heavy gauge construction, this filter offers reliable performance in a wide range of applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

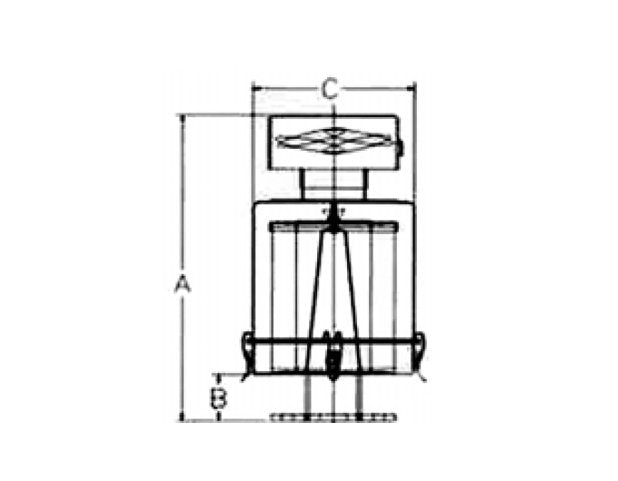

Dimensions Dimension A
11-3/8 in
Dimensions Dimension B
2-1/4 in
Dimensions Dimension C
7 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
4 lb
Specifications Connection Style
Male Pipe Thread (MPT)
Specifications Element Material
Paper
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
2 in
Specifications Rated Flow
100 scfm
Specifications Type
B
