2-Inch Stainless Steel Basic-Check Threaded In-Line Check Valve

2-Inch Stainless Steel Basic-Check Threaded In-Line Check Valve

INL-b8a425

Versatile 2" Stainless Steel Threaded Check Valve for reliable service in various applications. Meets ANSI & MSS standards.

$145.99
$145.99
Sale

Initiate Order

2-Inch Stainless Steel Basic-Check Threaded In-Line Check Valve

2-Inch Stainless Steel Basic-Check Threaded In-Line Check Valve

$145.99

Quantity: 1

Claim Your Seller Account

2-Inch Stainless Steel Basic-Check Threaded In-Line Check Valve

2-Inch Stainless Steel Basic-Check Threaded In-Line Check Valve

$145.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

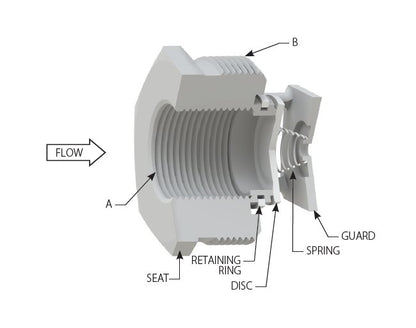

The 2-Inch Stainless Steel Basic-Check Threaded In-Line Check Valve by DFT® is a versatile and low-maintenance valve suitable for a wide range of liquids, steam, and gases at various pressures and temperatures. This valve features a guard cage, spring, valve disc, retaining ring, and seat for precise metal-to-metal sealing. With a stainless steel construction and options for soft seats, this valve ensures tight shutoff, making it ideal for applications like autoclaves, boiler feed, chemical lines, and more. Meeting ANSI and MSS standards, this valve is perfect for industrial and institutional use.

Product Specifications

Application 0
Autoclaves | Boiler Feed & Discharge | Chemical Lines | Compressor Discharge | Condensate Lines | Cookers | Cooling Towers | Crude & Refined Product Lines | Cryogenics | Digester | Evaporators | Fly Ash System | Generator Inlet & Discharge | Hydraulic Lines | Metering Pumps | Mine Dewatering | Nitrogen Purge | Process Lines | Pump Discharge | Refrigeration | Steam Lines | Vacuum Breaker | Water Lines | Water Treatment
Available Soft Seat Materials Available Soft Seat Materials
Buna-N (-70 to 250ºF) | EPDM (-75 to 300ºF) | TFE®-Viton® (-40 to 400ºF) | Viton® (-40 to 400ºF) | Zelon® (37 to 450ºF)
Codes And Standards Ansi
B1.20.1 | B16.11
Codes And Standards Mss
SP-25
Features 0
1/4" to 2 1/2" Line size450 to 6000 CWPThreaded endsStainless Steel ConstructionSpring-assisted silent closingHorizontal or vertical installationTight shut-off - lapped disc & seatEasy MaintenanceVersatile
Materials Of Construction Disc
316 SS
Materials Of Construction Guard
CF8M
Materials Of Construction Retaining Ring
316 SS
Materials Of Construction Seat
303 SS
Materials Of Construction Spring
Inconel® X-750
Options 0
Inconel® 750 Spring Soft seat
Specifications Approx Net Weight Each
7.00 lb | 3.2 kg
Specifications Cold Working Pressure
450 psig | 31.0 barg
Specifications Cv
90
Specifications Ends
NPT (Threaded)
Specifications Friction Loss Feet Of Pipe
16
Specifications Friction Loss Meter Of Pipe
4.9
Specifications Line Size Inlet Fnpt A
2.00 in
Specifications Outside Thread Mnpt B
4.00 in
Specifications Series
Basic-Check®
Specifications Size
2.00 in | DN 50
Specifications Style
BSS
Specifications Temperature Rating
-460 to 700 ºF | -273.33 to 371.11 ºC
Specifications Valve Cracking Pressure
0.1 psi | 0.007 bar | 2.6 in.water | 66 mm.water | 4.8 mmHg
Specifications Valve Cracking Pressure Tolerance
±10%
Specifications Working Steam Pressure
270 psig
