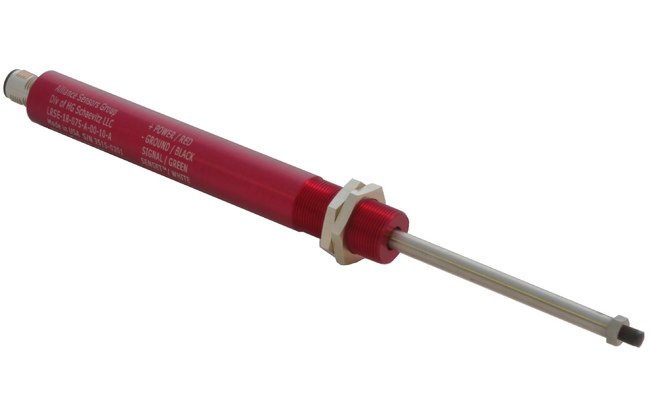

2 Inch Stroke Aluminum Spring Loaded Linear Sensor, 0-10V DC Voltage

Name: 2 Inch Stroke Aluminum Spring Loaded Linear Sensor, 0-10V DC Voltage
Brand: Alliance Sensors Group
SKU: SPR-56a7f5
Price: 149.99 USD
Availability: OutOfStock

SKU:SPR-56a7f5

Get precise linear position sensing with the 2 Inch Stroke Aluminum Spring Loaded Linear Sensor for industrial applications.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 2 Inch Stroke Aluminum Spring Loaded Linear Sensor with 0-10V DC output is a precision-engineered solution for accurate linear position sensing. Designed by Alliance Sensors Group, this sensor offers exceptional linearity (<0.25% of Full Scale) and high resolution (0.025% of Full Scale) to meet the demanding requirements of industrial applications. With a wide temperature range of -40 to 105ºC and European Conformity (CE) approval, this sensor ensures reliable performance in diverse environments. The aluminum body, 1m cable termination, and spring-loaded design make it durable and easy to install, providing precise measurements in various machinery and equipment.

Product Specifications

Technical Specs Brands

Alliance Sensors Group

Technical Specs Cable Type

Axial

Technical Specs European Conformity Ce Approved

Yes

Technical Specs Linearity

<0.25 % of Full Scale

Technical Specs Material

Aluminum Body

Technical Specs Output Direct Current Dc Voltage

0 to 10 V

Technical Specs Outside Diameter

3/4 in

Technical Specs Range

2 in

Technical Specs Resolution

0.025 % of Full Scale

Technical Specs Sensor Type

Spring Loaded

Technical Specs Size

3/4 in

Technical Specs Stroke

2 in

Technical Specs Temperature Range

-40 to 105 ºC

Technical Specs Termination

1 m Cable

Technical Specs Update Rate

300 Hz
