2-Inch Thermoplastic AG/Dewatering Pump by American Machine and Tool Company
2-Inch Thermoplastic AG/Dewatering Pump by American Machine and Tool Company
SKU:PRO-00d073
Powerful 2" Thermoplastic AG/Dewatering Pump for efficient water transfer. Reliable performance with self-priming capabilities and upgradable mechanical seal options.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
2-Inch Thermoplastic AG/Dewatering Pump by American Machine and Tool Company
$1,299.99
Quantity: 1
Claim Your Seller Account
2-Inch Thermoplastic AG/Dewatering Pump by American Machine and Tool Company
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 2-Inch Thermoplastic AG/Dewatering Pump by American Machine and Tool Company is a high-performance solution designed for agricultural and dewatering applications. Featuring a durable Buna-N mechanical seal and flapper valve, this pump offers reliable operation with the option for an EPDM mechanical seal upgrade. With self-priming capabilities up to 20 ft and a replaceable volute, this pump ensures efficient water transfer with a maximum working pressure of 60 PSI. Powered by a robust 5 hp Honda engine and capable of delivering up to 8460 GPH at 54 PSI, this pump is ideal for both small and large-scale water management tasks. With compliance to industry standards, this pump is a dependable choice for agricultural and utility use.
Product Specifications
Curves 0

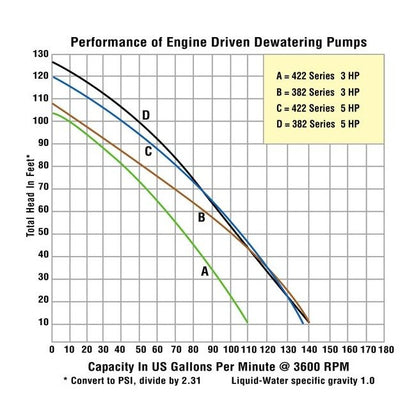

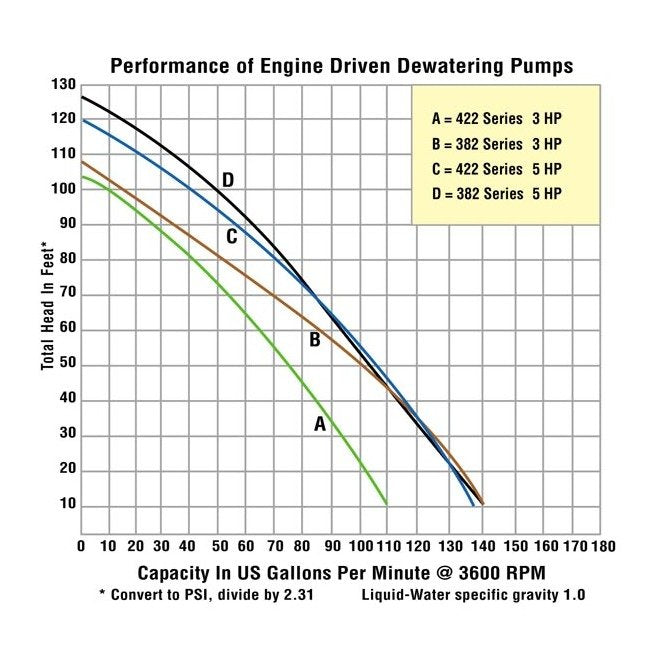

Performance Curves
Dimensions 0

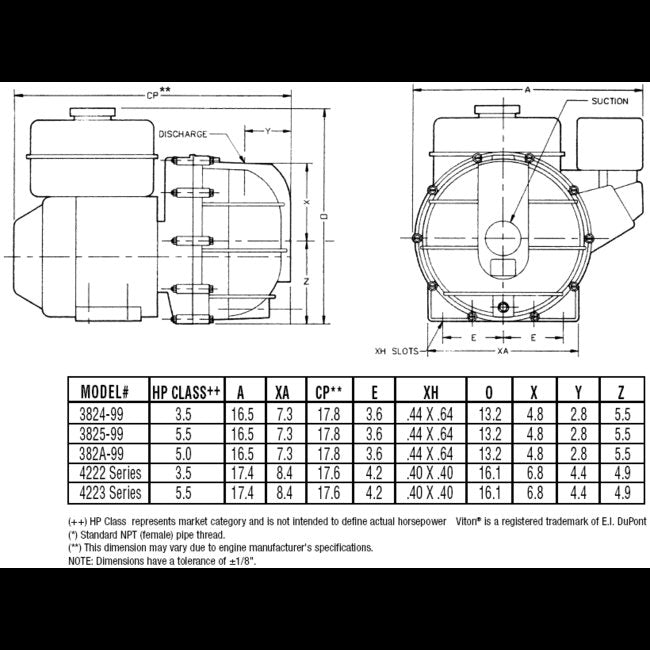

Dimensional Drawing
Specifications 0
Two NPT Pipe NipplesBuna-N Mechanical Seal and Flapper ValveOptional EPDM Mechanical Seal Available 1000-999-EOO-Ring Casing SealSelf-primes to 20 ft. with Built in Check ValveReplaceable VoluteMaximum Temperature 130ºFMaximum Working Pressure 60 PSIDelivers up to 54 PSI and 8460 GPH (Maximum)
Specifications Curve
D
Specifications Customs Code
HTS Code 8413702015
Specifications Driver
Honda GC160
Specifications Fuel Tank Capacity
1.8 qt
Specifications Height
13 in | 322.58 mm
Specifications Length
19 in | 477.52 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Model
382A-99
Specifications Power
5 hp
Specifications Run Time
60 min
Specifications Seal Material
Buna-N
Specifications Size Self Primes
20 ft
Specifications Sku
AT382A99SP
Specifications Solids Handling
7/16 in
Specifications Temperature
130 ºF
Specifications Weight
20.41 | 45 | 45 lbs
Specifications Width
16 in | 396.24 mm
