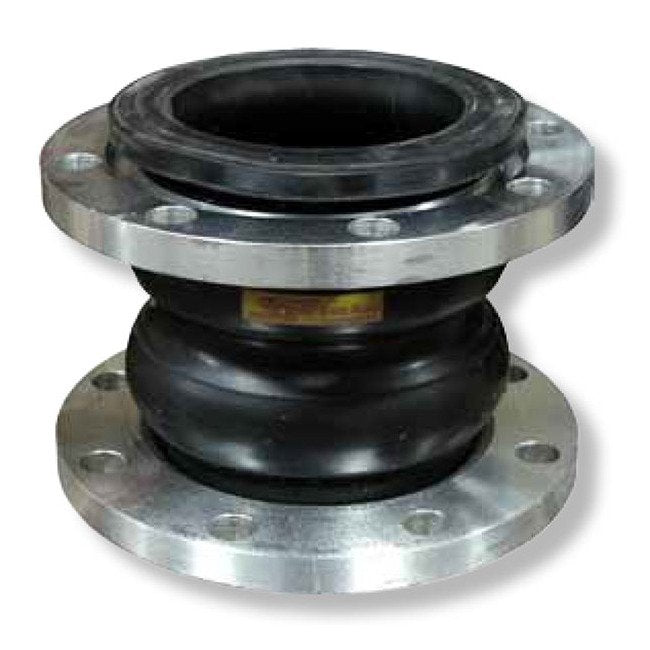

2-Inch Twin-Sphere Connector Fitting with Class 150 Floating Flange

2-Inch Twin-Sphere Connector Fitting with Class 150 Floating Flange

EXP-85d5a6

Sure Flow AMT Series 2-Inch Twin-Sphere Connector Fitting with Class 150 Floating Flange - Flexible, Durable, and ISO 9001:2008 Certified

$99.99
$99.99
Sale

Initiate Order

2-Inch Twin-Sphere Connector Fitting with Class 150 Floating Flange

2-Inch Twin-Sphere Connector Fitting with Class 150 Floating Flange

$99.99

Quantity: 1

Claim Your Seller Account

2-Inch Twin-Sphere Connector Fitting with Class 150 Floating Flange

2-Inch Twin-Sphere Connector Fitting with Class 150 Floating Flange

$99.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The AMT Series 2-Inch Twin-Sphere Connector Fitting with Class 150 Floating Flange is a top-of-the-line product designed to provide superior flexibility and durability in demanding industrial environments. Manufactured by Sure Flow, this expansion joint features advanced construction including CS Zinc Plated flanges, special synthetic rubber elastomer, and synthetic fiber reinforcing fabric. With operating pressures up to 150 psig, temperature range from -10 to 115°C, and compliance with ISO 9001:2008 standards, this connector fitting ensures reliable performance and longevity. Consult the factory for certification to meet specific requirements.

Product Specifications

Construction Construction
Name - FlangesMaterial - CS Zinc PlatedName - WireMaterial - Carbon Steel Wire StrandName - ElastomerMaterial - Special Synthetic RubberName - Reinforcing FabricMaterial - Synthetic Fiber (Neoprene)

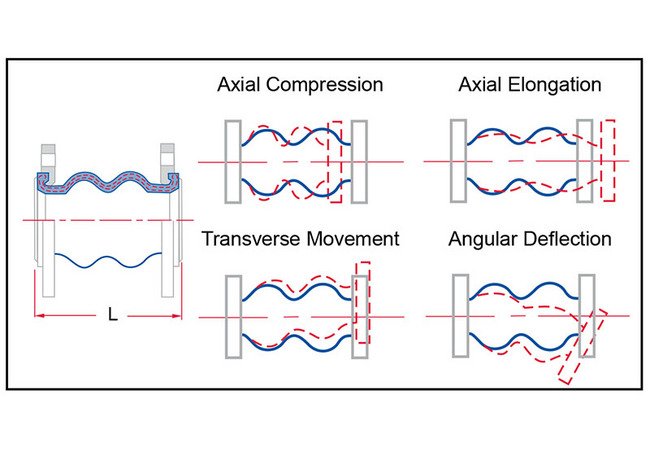

Dimensions Angular Deflection
40 º
Dimensions Axial Compression
1 in
Dimensions Axial Elongation
3/4 in
Dimensions Dimension L
7 in
Dimensions Prefix Size
0200
Dimensions Shipping Weight
12 lb
Dimensions Size
2 in
Dimensions Transverse Movement Tolerance
1 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Operating Pressure
150 psig
Operating Pressures And Temperatures Temperature
-10 to 115 ºC | 14 to 240 ºF
Operating Pressures And Temperatures Vacuum Rating
26 inHg
Specifications Series
AMT
