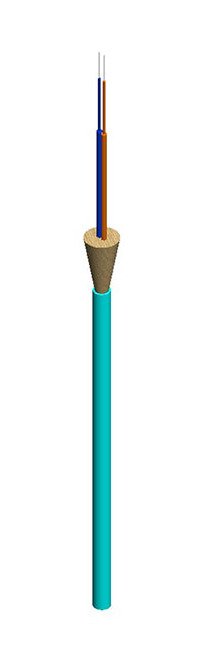

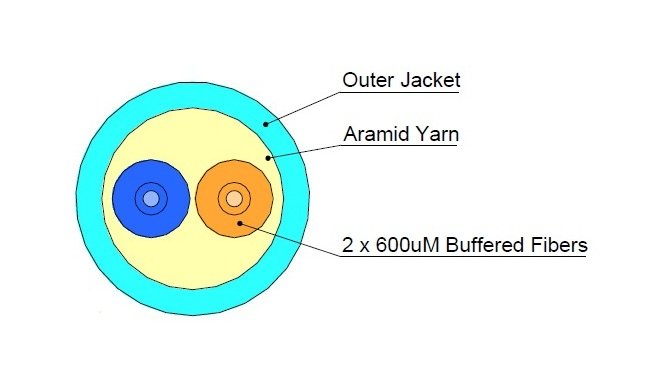

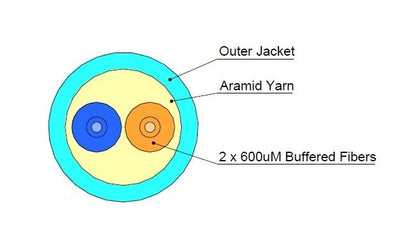

Opticonx 2 Fiber Round cables offer a secure way to terminate today’s high density uniboot style connectors including LC, SN, CS, and MDC. Two 600 µm tight-buffered fibers offer added strength when terminating. The cable features aramid yarn strength members with a flexible flame-retardant plenum rated jacket. Choose from a variety of fiber types. Custom print legend available with minimum order.
Product Specifications
Certification
(UL) Type OFNP per the National Electric Code. (ANSI/NFPA 70-1999) Section 770-53(a). For use in air return systems transporting environmental air. Meets FDDI ANSI X3T9.5, IBM 3044 Channel Extender.
Construction Buffer Color
Blue | Orange
Construction Buffer Color Standard
TIA/EIA-359
Construction Component Fiber Buffer Diameter
245 µm
Construction Component Polyvinyl Chloride Pvc Tight Buffer Diame
0.002 in | 0.05 mm
Construction Core Diameter
50/125 | 62.5/125 | 8.3/125
Construction Jacket Color
Aqua - OM3 | Magenta - OM4 | Orange - Multimode | Yellow - Singlemode
Construction Jacket Material
Flame Retardant Polyvinyl Chloride (PVC)
Construction Strength Member
Dielectric Aramid Yarn Fibers
Mechanical Cable Weight
5.07 kg/km
Mechanical Cable Weight Per 1000 Feet Ft
3.4 lb
Mechanical Diameter
0.079 in | 2.0 mm
Mechanical Diameter Tolerance
0.003 in | 0.08 mm
Mechanical Maximum Installation Tensile Load
60 lb | 267 N
Mechanical Maximum In Service Tensile Load
15 lb | 67 N
Mechanical Minimum Installation Bend Radius
2.0 in | 5.0 cm
Mechanical Minimum In Service Bend Radius
1.0 in | 2.5 cm
Mechanical Operating Temperature
-18 to 70 ºC | 0 to 158 ºF
Mechanical Storage Temperature
-40 to 70 ºC | -40 to 158 ºF
Print
Opticonx Inc. 888-748-6855 Optical Fiber Cable (UL) c(UL) Type OFNP E220890 2 Fiber (fiber type) plus sequential meter or footage marks
Proprietary And Confidential
The information contained in this drawing is the sole property of Opticonx, Inc. Any reproduction in part or as a whole without the written permission of Opticonx, Inc. is prohibited.
Specifications Fiber Type
Singlemode | Multimode | OM3 | OM4
Specifications Note For Applicatios
This fiber cable is designed for use with 2 mm uniboot type connectors.
