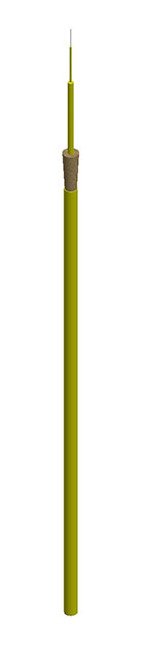

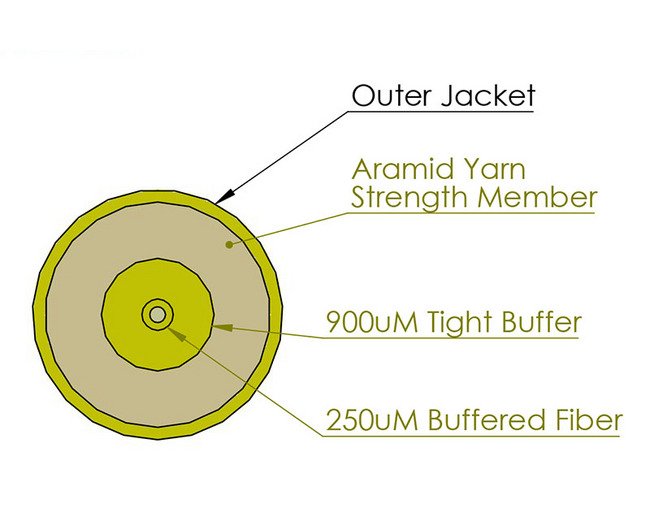

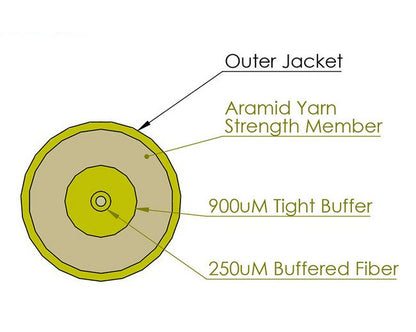

Opticonx simplex cables utilize a 900 um tight-buffered fiber surrounded by aramid yarn strength members with a flexible flame-retardant riser, plenum, or LSZH jacket. These cables are ideal for single fiber connectors such as SC, FC, ST, and LC. Choose from a variety of fiber types. Custom print legend available with minimum order.
Product Specifications
Certification
(UL) Type OFNR per the National Electric Code. (ANSI/NFPA 70-1999) Section 770-53(a). For use in Vertical Riser Shafts
Construction Buffer Color
Natural
Construction Component Fiber Buffer Diameter
245 µm
Construction Component Polymer Tight Buffer Diameter
900 µm
Construction Jacket Color
Aqua
Construction Jacket Material
Flame Retardant Polyvinyl Chloride (PVC)
Construction Strength Member
Dielectric Aramid Yarn Fibers
Mechanical Cable Weight
6.23 kg/km
Mechanical Cable Weight Per 1000 Feet Ft
1.9 lb
Mechanical Diameter
0.079 in | 2.0 mm
Mechanical Maximum Installation Tensile Load
30 lb | 134 N
Mechanical Maximum Operating Tensile Load
11 lb | 49 N
Mechanical Minimum Installation Bend Radius
1.4 in | 4.15 cm
Mechanical Minimum In Service Bend Radius
0.70 in | 1.78 cm
Mechanical Operating Temperature
-20 to 80 ºC | -4 to 176 ºF
Mechanical Storage Temperature
-40 to 80 ºC | -40 to 176 ºF
Print
Opticonx Inc. 888-748-6855 Optical Fiber Cable (UL) OFNR E220890 c(UL) OFN-FT41 Fiber (fiber type) plus sequential meter or footage marks or custom print.
