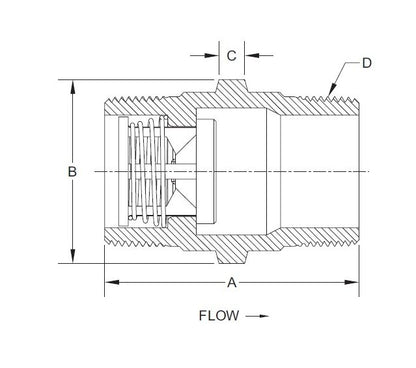

2" Nominal Pipe Size CR Style Connector Check Valve
2" Nominal Pipe Size CR Style Connector Check Valve
SKU:CNA-1896a3
High-quality 2" Nominal Pipe Size CR Style Check Valve with 1.50 psi cracking pressure, ideal for industrial applications.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
2" Nominal Pipe Size CR Style Connector Check Valve
$99.99
Quantity: 1
Claim Your Seller Account
2" Nominal Pipe Size CR Style Connector Check Valve
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 2" Nominal Pipe Size CR Style Connector Check Valve is a versatile valve suitable for a range of applications. Designed with ISO 7 R Threads, it features a standard cracking pressure of 1.50 psi, ensuring efficient performance. Crafted from high-quality 316 Stainless Steel, this valve offers durability and reliability. With non-shock pressure ratings of 3000 psig at 100°F, it is ideal for various industrial settings. This valve is European Conformity (CE) PED compliant and crafted in the USA, ensuring top-notch quality and meeting international standards.
Product Specifications
Note
Made in USA.
Specifications Body Material
316 Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Brass = BR | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO | Titanium = TI
Specifications Body Material Availability
316 Stainless Steel (SS) - Standard | Alloy 20 (A2) - Semi-Standard | Alloy B (HB) - Contact the factory for these or other materials | Alloy C-276 (HC) - Semi-Standard | Brass (BR) - Standard | Carbon Steel (CS) - Standard | Monel® 400 or Alloy R405 - Semi-Standard | Titanium (TI) - Contact the factory for these or other materials
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
2 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
3000 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
K
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy B = HB | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
1.50 psi
Specifications Valve Style
International Organization for Standardization (ISO) 7 R Threads = CR
