2" Nominal Pipe Size HT Style PTFE Lined Check Valve
2" Nominal Pipe Size HT Style PTFE Lined Check Valve
SKU:HTS-a9eb81
Reliable 2" Nominal Pipe Size HT Style PTFE Lined Check Valve for durability and high performance in institutional settings.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
2" Nominal Pipe Size HT Style PTFE Lined Check Valve
$189.99
Quantity: 1
Claim Your Seller Account
2" Nominal Pipe Size HT Style PTFE Lined Check Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

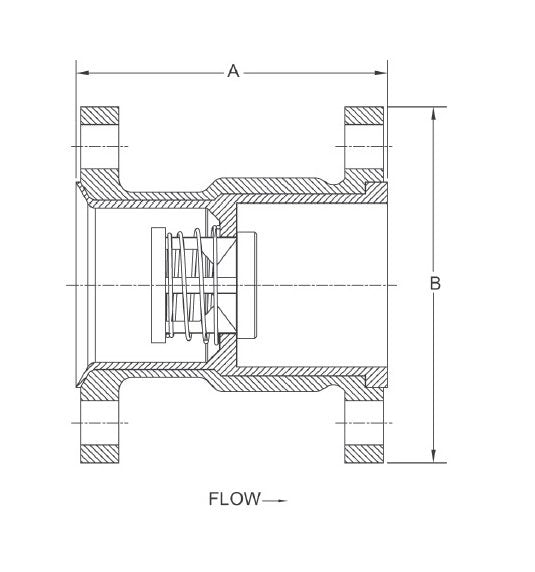

The 2" Nominal Pipe Size HT Style PTFE Lined Check Valve by Check-All® features a one-piece body with ANSI/ASME B16.5 Class 150 flanged ends. The valve includes a solid Polytetrafluoroethylene (PTFE) liner covering flange faces, ensuring all wetted surfaces are fluoropolymer. With a standard cracking pressure of 0.125 psi and materials like virgin PTFE and stainless steel springs, this valve guarantees durability and high performance. Designed for low pressure relief and vacuum breaker applications, this valve is a reliable choice for institutional and government buyers.
Product Specifications
Additional Information

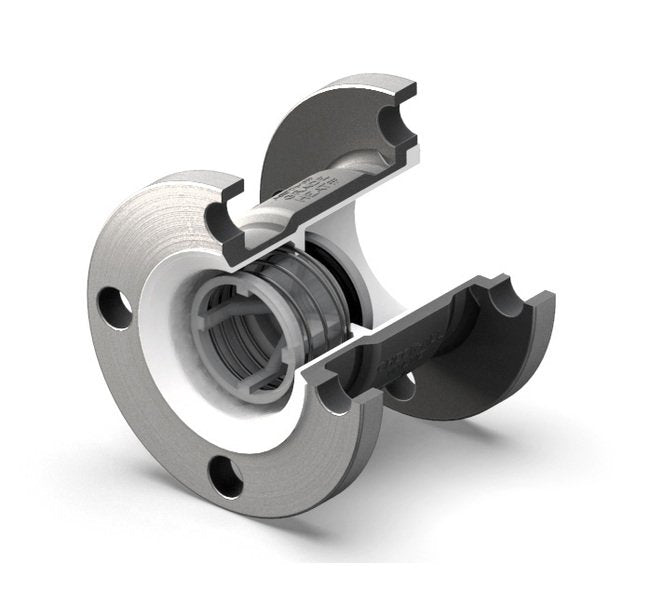

Style HT bodies are made of cast carbon steel only. The liner is made of virgin Polytetrafluoroethylene (PTFE). It is installed as one solid piece of Polytetrafluoroethylene (PTFE) and the internal geometrical shape is machined. The Polytetrafluoroethylene (PTFE) liner has a minimum wall thickness of 3/32 inch, which guarantees against pin holes which can be present in fused liners.The HT valve can also be used as a low pressure relief valve or vacuum breaker by using the desired spring settings.The Check-All® Flanged and Drilled - Fluoropolymer Polytetrafluoroethylene (PTFE) Lined (HT) check valve is a one-piece body valve with ANSI/ASME B16.5 Class 150 flanged ends. The valve has a solid one-piece Polytetrafluoroethylene (PTFE) liner, which covers the flange faces out to the raised face diameter. All wetted surfaces are fluoropolymer (Polytetrafluoroethylene (PTFE)/FEP/PFA) including the FEP encapsulated stainless steel spring.
Note
Made in USA.
Specifications Cast Body Material
Wrought Carbon Steel (WCB/WCC) = CS
Specifications Certifications
European Conformity (CE) Non-PED Statement
Specifications Liner Material
Polytetrafluoroethylene (PTFE)
Specifications Nominal Pipe Size
2 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
20 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Note For Standard Cracking Pressure
0.125 psi springs are not recommended for installations with flow vertical down.
Specifications Seat Material
Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Plastic to Plastic = MT (No O-Ring)
Specifications Size Code
K
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
316 Stainless Steel = SS | Alloy 400 or Monel® = MO | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Titanium = TI
Specifications Standard Cracking Pressure
0.125 psi
Specifications Valve Style
HT
