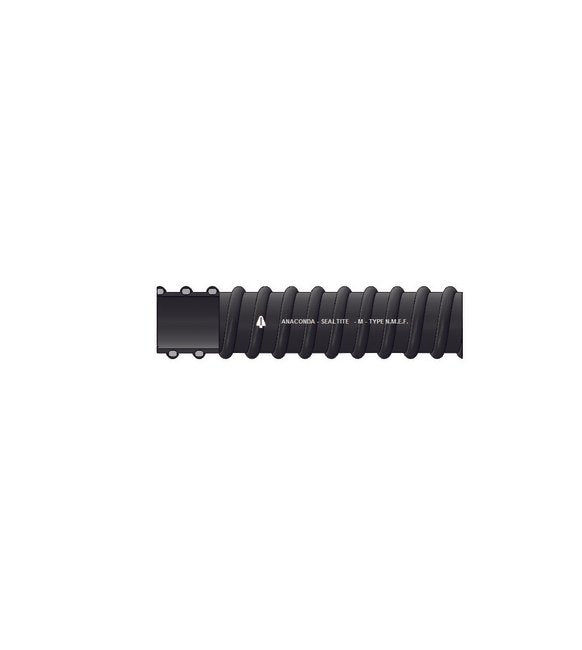

2" Non-Metallic Mechanical Protection Tubing
2" Non-Metallic Mechanical Protection Tubing
SKU:LIQ-6feeaa
Durable 2" Non-Metallic Mechanical Protection Tubing for industrial applications, CSA certified, crush and corrosion resistant.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
2" Non-Metallic Mechanical Protection Tubing
$129.99
Quantity: 1
Claim Your Seller Account
2" Non-Metallic Mechanical Protection Tubing
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 2" Non-Metallic Mechanical Protection Tubing is a durable solution for industrial applications requiring crush and corrosion resistance. Constructed with rigid non-metallic reinforcement and flexible PVC, this tubing is CSA certified and RoHS/WEEE compliant. It features exceptional crush resistance, flame retardant PVC, and resistance to heat, oil, and chemicals. Approved for wet and oil environments, it complies with C22.21 No. 227.3-05 requirements and offers an IP 66/67 rating. Perfect for OEM machine building and industrial uses with tight bend radii needs.
Product Specifications
Application
OEM machine buildingIndustrial applications where tight bend radii are required.
Installation
Tubing used with fittings for non-metallic tubing Type B that comply with the requirements of C22.21 No. 227.3-05. IP 66/67 Rated when installed with approved connectors.Approved for both exposed and concealed locations. Rated for temperature ranges of -0ºF to +176ºF (-18ºC to +80ºC) Wet: +60°C; Oil 70°C. Easy to install and cuts easily.Manufactured in a full range of trade sizes from 1/4" through 2".
Specifications Color
BLACK
Specifications Connector Type
Type B
Specifications Core Material
Polyvinyl Chloride (PVC)
Specifications Electrical Trade Size
2 in
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Bend Radius
11.1 in
Specifications Inside Diameter
2.020-2.045 in
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
100 ft
Specifications Naed Pin
3620500
Specifications Outside Diameter
2.340-2.375 in
Specifications Standard Length Coil
100 ft
