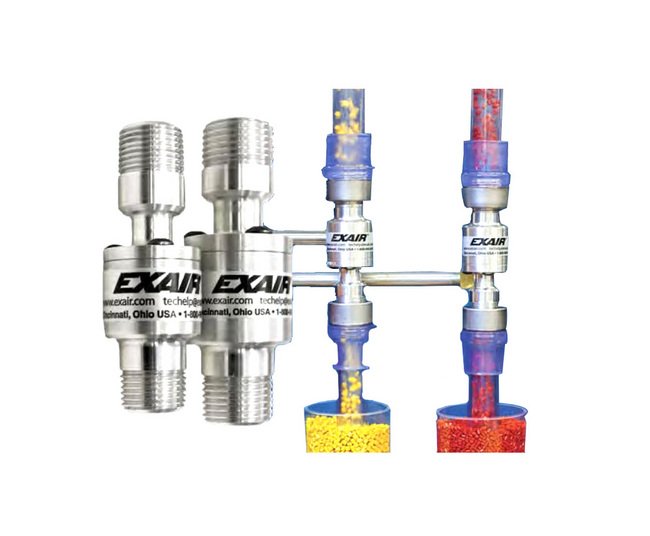

2 NPT Aluminum Threaded Line Vac Conveyor
2 NPT Aluminum Threaded Line Vac Conveyor
SKU:THR-381711
Efficiently convey plastic pellets, textiles, and more with the Aluminum Threaded Line Vac Conveyor.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
2 NPT Aluminum Threaded Line Vac Conveyor
$499.99
Quantity: 1
Claim Your Seller Account
2 NPT Aluminum Threaded Line Vac Conveyor
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 2 NPT Aluminum Threaded Line Vac Conveyor is a versatile and cost-effective solution for conveying plastic pellets, scrap trim, textiles, bulk solids, and more. Ideal for large volume material transport over extended distances, this conveyor attaches easily to plumbing pipe couplers, providing a powerful conveying system. With aluminum construction and available in different sizes, this conveyor offers high throughput capability, infinite rate control, and maintenance-free operation. It meets stringent institutional procurement requirements for durability, efficiency, and ease of maintenance.
Product Specifications
Specifications Advantages
Aluminum or Stainless Steel | Available from Stock | Compact | Fits Standard Pipe | High Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
45 SCFM | 1274 SLPM
Specifications Air Inlet
3/8 NPT
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Dimension E
2.25 in | 57 mm
Specifications Dimension F1
1.38 in | 35 mm
Specifications Dimension F2
1.38 in | 35 mm
Specifications Dimension H
1.50 in | 38 mm
Specifications Dimension I
1.17 in | 30 mm
Specifications Dimension J
2.34 in | 59 mm
Specifications Dimension K
0.28 in | 7 mm
Specifications Dimension L
1.48 in | 38 mm
Specifications Dimension M
0.06 in | 2 mm
Specifications Dimension N
2.13 in | 54 mm
Specifications Dimension O
0.28 in | 7 mm
Specifications Inlet Thread Size
2 NPT
Specifications Inside Diameter
1.75 in | 44 mm
Specifications Material
Aluminum
Specifications Outlet Thread Size
2 NPT
Specifications Outside Diameter
3.25 in | 83 mm
Specifications Overall Length
4.63 in | 118 mm
Specifications Overall Width
3 in | 76 mm
Specifications Pipe Size
2 NPT
Specifications Pressure
80 psig | 5.5 bar
Specifications Vacuum Pressure
-28.5 inWc | -7 kPa
