2" NPT Clamped PWR-FLOâ„¢ AODD Pump, Aluminum w/ Neoprene Diaphragms
2" NPT Clamped PWR-FLOâ„¢ AODD Pump, Aluminum w/ Neoprene Diaphragms
SKU:MAN-fad6ab
Efficient and reliable 2" NPT Clamped AODD Pump for handling solids and slurries. Drop-in replacement for Wilden® pumps.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
2" NPT Clamped PWR-FLOâ„¢ AODD Pump, Aluminum w/ Neoprene Diaphragms
$799.99
Quantity: 1
Claim Your Seller Account
2" NPT Clamped PWR-FLOâ„¢ AODD Pump, Aluminum w/ Neoprene Diaphragms
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

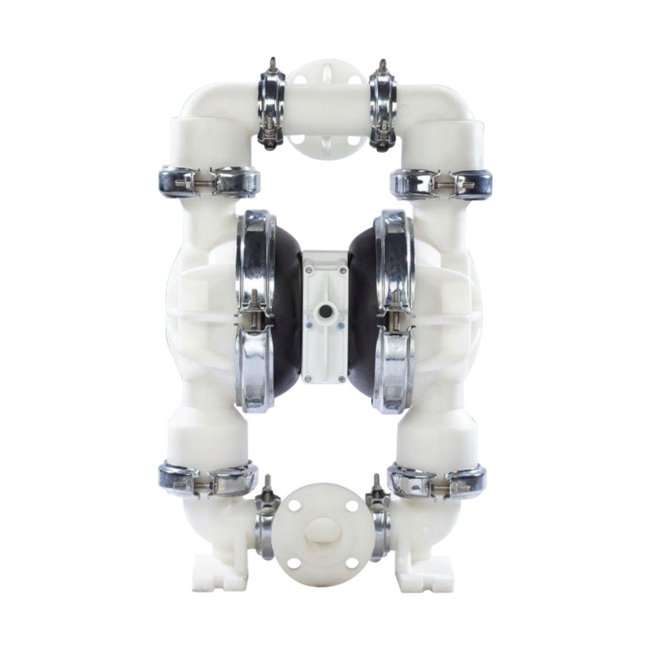

The 2" NPT Clamped PWR-FLO™ AODD Pump from the NOMAD® PWR-FLO™ series is a reliable and efficient solution for handling large solids and slurries. Featuring an asymmetrical spool design for enhanced air system efficiency, this pump ensures excellent reliability in on/off liquid transfer applications. With an aluminum construction and neoprene diaphragms, it offers durability and chemical resistance. Designed as a drop-in replacement for Wilden® AODD pumps, this pump is ideal for filling and batching tasks.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

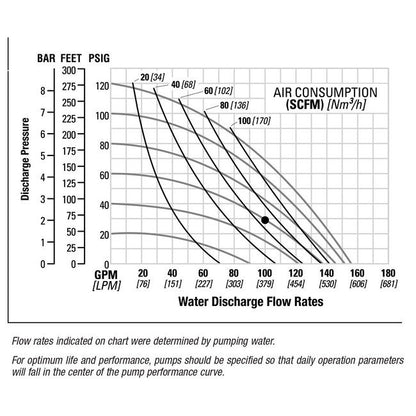

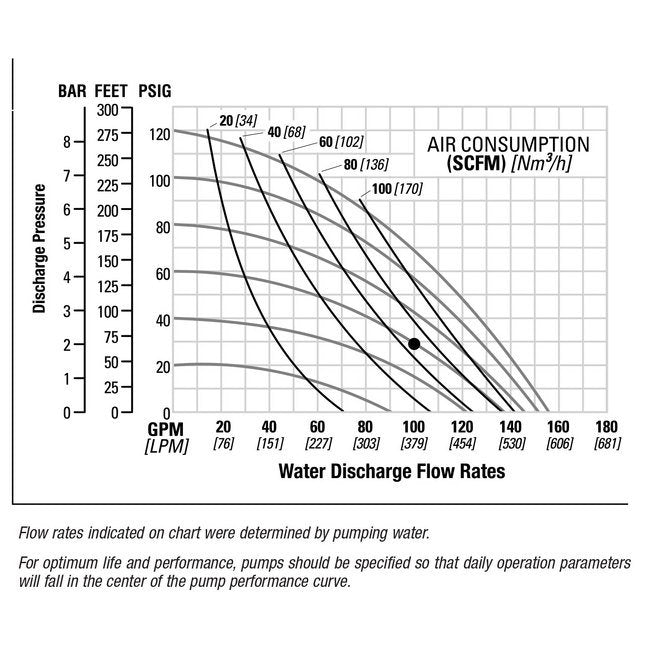

Performance Curves
Dimensions 0

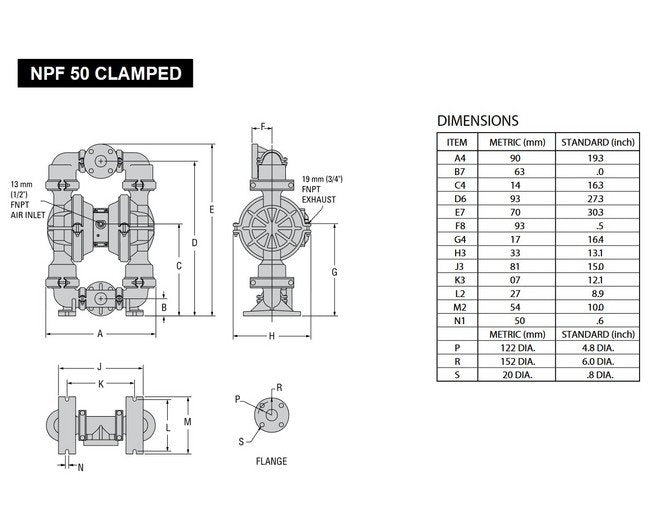

Dimensions
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Buna - N/Nitrile
Specifications Diaphragm Material
Neoprene
Specifications Displacement Per Cycle
0.73 gal | 2.76 lit
Specifications Elastomers
Buna - N/Nitrile, Buna - N/Nitrile
Specifications Fluid Inlet Size
2 NPT in | 51 NPT mm
Specifications Fluid Outlet Size
2 NPT in | 51 NPT mm
Specifications Height
30 Inch | 30 in | 769.62 mm
Specifications Length
30 Inch | 30 in | 0.7696 m | 769.62 mm
Specifications Max Flow Rate
156 gpm | 590.52 lpm
Specifications Moc
Aluminum
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-26636
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Aluminum
Specifications Width
13 Inch | 13 in | 0.3327 m | 332.74 mm
