2 Phase Closed Loop FWD Series Hybrid Stepping Motor - 491 mN·m Static Torque
2 Phase Closed Loop FWD Series Hybrid Stepping Motor - 491 mN·m Static Torque
SKU:STE-85302c
Achieve precision with the 2 Phase Closed Loop FWD Series Hybrid Stepping Motor featuring 491 mN·m Static Torque. High-speed operation, 0.72 deg resolution, and reliable performance.
Regular price
$124.99
Regular price
Sale price
$124.99
Unit price
per
Initiate Order
2 Phase Closed Loop FWD Series Hybrid Stepping Motor - 491 mN·m Static Torque
$124.99
Quantity: 1
Claim Your Seller Account
2 Phase Closed Loop FWD Series Hybrid Stepping Motor - 491 mN·m Static Torque
$124.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 2 Phase Closed Loop FWD Series Hybrid Stepping Motor delivers superior performance with a max static torque of 491 mN·m, equivalent to 69.5 oz.in. Operate at high speeds with the 2 phase control system, achieving 0.72 deg resolution. Ideal for applications requiring precision and reliability, this motor can handle radial and thrust loads efficiently. With compliance to industry standards and robust construction, it ensures long-lasting performance in diverse environments.
Product Specifications
Additional Information 0

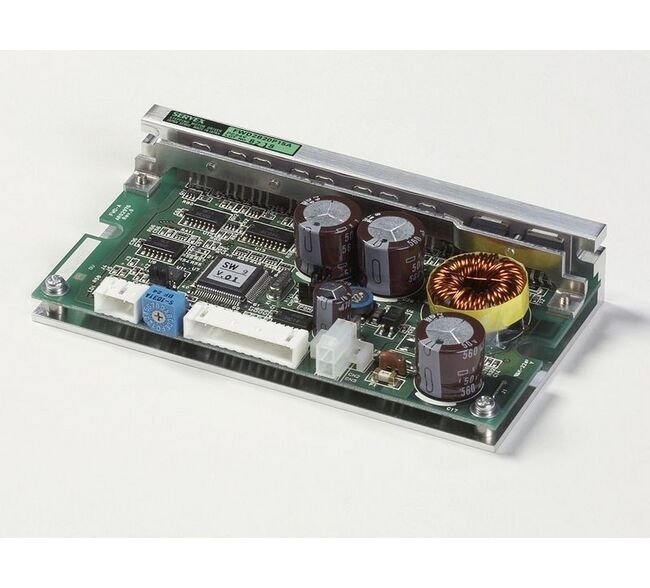

Allowable Radial Load and Allowable Thrust Load | Driver and Motor Selection Guide | Driver Picture | Explanation of Dynamic Torque Curves | Installation Location | KH56 Series 2-Phase Hybrid Stepping Motors (1.8 Degree/Step) - Nema 23 (KH56JM2) | Stepping Servos FWD Series | System Configuration | Torque Stepping Drawing
Customize 0
Custom Designs
Dimensions 0
Connection Diagrams | External Drawing of the Driver | Wiring Diagram
Specifications Applicable Motor
KH56JM2-951
Specifications Basic Resolution
0.72 in
Specifications Current
2.0 A
Specifications Dielectric Strength Motor Section
500VAC 50Hz 1min
Specifications Driver Mass
0.51 lb
Specifications Excitation System
Basic Resolution (Step) | Micro Step (n=1, 2, 4, 8, 10, 20, 40, 80)
Specifications Insulation Class Motor Section
Equivalent to class
Specifications Insulation Resistance Motor Section
500VDC 100 MO min
Specifications Max Static Torque
491 mN·m | 69.5 oz.in
Specifications Motor Frame Size
56 x 56 mm | 2.205 x 2.205 in
Specifications Motor Mass
0.88 lb
Specifications No Of Phases
2
Specifications Power Specifications
24VDC, 3.0A
Specifications Rotor Inertia
1.63 x 103 oz·in²
Specifications Storage Ambient Humidity Driver Section
35~85 %
Specifications Storage Ambient Humidity Motor Section
10~85 %
Specifications Storage Ambient Temperature Driver Section
0~+50 ºC
Specifications Storage Ambient Temperature Motor Section
-20~+70 ºC
Specifications Type
2 Phase Hybrid Square KH Series
Specifications Working Ambient Humidity Driver Section
0~+50 ºC
Specifications Working Ambient Humidity Motor Section
15~85 %
Specifications Working Ambient Temperature Driver Section
0~+50 ºC
Specifications Working Ambient Temperature Motor Section
-10~+50 ºC
Torque Curve 0
