2 Phase Closed Loop FWD Series Stepping Motor - 1360 mN·m Static Torque
2 Phase Closed Loop FWD Series Stepping Motor - 1360 mN·m Static Torque
SKU:STE-5c5272
High-speed 2 Phase Closed Loop FWD Series Stepping Motor with 1360 mN·m torque for precise control and out-of-step position detection.
Regular price
$239.99
Regular price
Sale price
$239.99
Unit price
per
Initiate Order
2 Phase Closed Loop FWD Series Stepping Motor - 1360 mN·m Static Torque
$239.99
Quantity: 1
Claim Your Seller Account
2 Phase Closed Loop FWD Series Stepping Motor - 1360 mN·m Static Torque
$239.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 2 Phase Closed Loop FWD Series Stepping Motor delivers high-speed operation with a static torque of 1360 mN·m. With a 2 phase hybrid design and basic resolution of 0.72, it offers precise control and out-of-step position detection capabilities. This motor, compatible with the KH60KM2-951 motor frame, excels in applications requiring reliable performance and accuracy.
Product Specifications
Additional Information 0

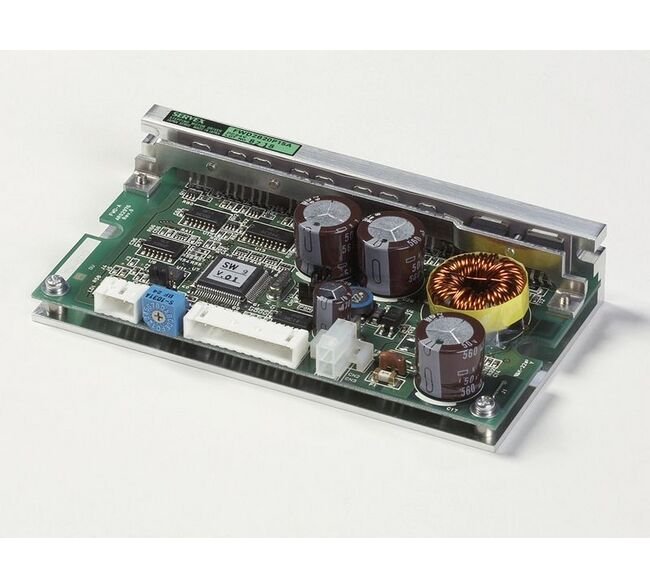

Allowable Radial Load and Allowable Thrust Load | Driver and Motor Selection Guide | Driver Picture | Explanation of Dynamic Torque Curves | Installation Location | KH56 Series 2-Phase Hybrid Stepping Motors (1.8 Degree/Step) - Nema 23 (KH56JM2) | Stepping Servos FWD Series | System Configuration | Torque Stepping Drawing
Customize 0
Custom Designs
Dimensions 0
Connection Diagrams | External Drawing of the Driver | Wiring Diagram
Specifications Applicable Motor
KH60KM2-951
Specifications Basic Resolution
0.72 in
Specifications Current
2.0 A
Specifications Dielectric Strength Motor Section
500VAC 50Hz 1min
Specifications Driver Mass
0.51 lb
Specifications Excitation System
Basic Resolution (Step) | Micro Step (n=1, 2, 4, 8, 10, 20, 40, 80)
Specifications Insulation Class Motor Section
Equivalent to class
Specifications Insulation Resistance Motor Section
500VDC 100 MO min
Specifications Max Static Torque
1360 mN·m | 192 oz.in
Specifications Motor Frame Size
60 x 60 mm | 2.362 x 2.362 in
Specifications Motor Mass
1.70 lb
Specifications No Of Phases
2
Specifications Power Specifications
24VDC, 4.0A
Specifications Rotor Inertia
5.66 x 103 oz·in²
Specifications Storage Ambient Humidity Driver Section
35~85 %
Specifications Storage Ambient Humidity Motor Section
10~85 %
Specifications Storage Ambient Temperature Driver Section
0~+50 ºC
Specifications Storage Ambient Temperature Motor Section
-20~+70 ºC
Specifications Type
2 Phase Hybrid Square KH Series
Specifications Working Ambient Humidity Driver Section
0~+50 ºC
Specifications Working Ambient Humidity Motor Section
15~85 %
Specifications Working Ambient Temperature Driver Section
0~+50 ºC
Specifications Working Ambient Temperature Motor Section
-10~+50 ºC
Torque Curve 0
