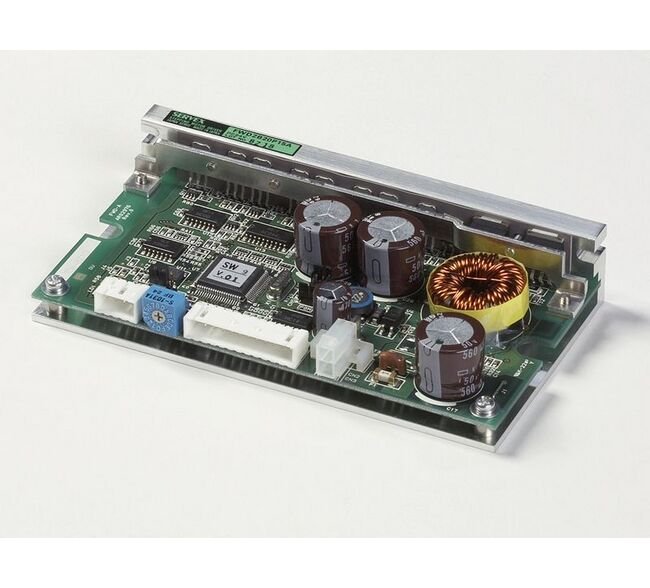

2-Phase Hybrid Stepping Motor - KH42HM2-951 | 169 mN·m Static Torque
2-Phase Hybrid Stepping Motor - KH42HM2-951 | 169 mN·m Static Torque
SKU:STE-783a76
Enhance efficiency with the 2-Phase Hybrid Stepping Motor featuring 169 mN·m Static Torque & high-speed operation for precise performance.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
2-Phase Hybrid Stepping Motor - KH42HM2-951 | 169 mN·m Static Torque
$289.99
Quantity: 1
Claim Your Seller Account
2-Phase Hybrid Stepping Motor - KH42HM2-951 | 169 mN·m Static Torque
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your stepper motor system with the advanced 2 Phase Hybrid Square KH Series. Operating at high speeds with a Basic Resolution of 0.72 in, this motor offers unique out-of-step position detection at motor shaft speeds above 500 rpm. With a maximum static torque of 169 mN·m, this motor is designed for precision and efficiency, making it ideal for a wide range of applications. Compatible with Square size 17 and size 23 stepper motors.
Product Specifications
Additional Information 0
Allowable Radial Load and Allowable Thrust Load | Driver and Motor Selection Guide | Driver Picture | Explanation of Dynamic Torque Curves | Installation Location | KH42 B900 Series 42mm, 2-Phase Stepping Motors (1.8 Degree/Step) - Nema 17 (KH4234-B90101) | Stepping Servos FWD Series | System Configuration | Torque Stepping Drawing
Customize 0
Custom Designs
Dimensions 0
Dimensions | External Drawing of the Driver | Wiring Diagram
Specifications Applicable Motor
KH42HM2-951
Specifications Basic Resolution
0.72 in
Specifications Current
0.8 A
Specifications Dielectric Strength Motor Section
500VAC 50Hz 1min
Specifications Driver Mass
0.51 lb
Specifications Excitation System
Basic Resolution (Step) | Micro Step (n=1, 2, 4, 8, 10, 20, 40, 80)
Specifications Insulation Class Motor Section
Equivalent to class
Specifications Insulation Resistance Motor Section
500VDC 100 MO min
Specifications Max Static Torque
169 mN·m | 23.9 oz.in
Specifications Motor Frame Size
42 x 42 mm | 1.564 x 1.564 in
Specifications Motor Mass
0.44 lb
Specifications No Of Phases
2
Specifications Power Specifications
24VDC, 2.0A
Specifications Rotor Inertia
0.54 x 103 oz·in²
Specifications Storage Ambient Humidity Driver Section
35~85 %
Specifications Storage Ambient Humidity Motor Section
10~85 %
Specifications Storage Ambient Temperature Driver Section
0~+50 ºC
Specifications Storage Ambient Temperature Motor Section
-20~+70 ºC
Specifications Type
2 Phase Hybrid Square KH Series
Specifications Working Ambient Humidity Driver Section
0~+50 ºC
Specifications Working Ambient Humidity Motor Section
15~85 %
Specifications Working Ambient Temperature Driver Section
0~+50 ºC
Specifications Working Ambient Temperature Motor Section
-10~+50 ºC
Torque Curve 0
