2-Piece Split Clamp Shaft Collar with Keyway, Low Profile
2-Piece Split Clamp Shaft Collar with Keyway, Low Profile
SKU:ROU-7cc3fe
Precision-machined 2-Piece Split Clamp Shaft Collar with Keyway for durable shaft protection and high clamping power. RoHS & REACH compliant.
Regular price
$27.99
Regular price
Sale price
$27.99
Unit price
per
Initiate Order
2-Piece Split Clamp Shaft Collar with Keyway, Low Profile
$27.99
Quantity: 1
Claim Your Seller Account
2-Piece Split Clamp Shaft Collar with Keyway, Low Profile
$27.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

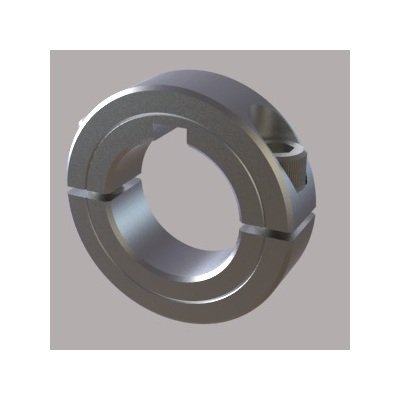

The Two-Piece Split Clamp-Type Shaft Collar with Keyway in Low Profile style is a precision-machined solution designed for standard round shafts or thin wall tubes. Featuring a smooth bore that ensures shaft protection and high clamping power, this collar offers superior holding strength over set-screw collars. Fully disassemblable and adjustable, it can be placed anywhere on a shaft. The chrome-plated steel construction, including 18-8 stainless steel screws, ensures durability and non-marring performance. Ideal for various applications, this collar is RoHS and REACH compliant for environmental standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensional Attributes Bore Size
2-3/16 in
Dimensional Attributes Keyway
1/2 in
Dimensional Attributes Outside Diameter
3.250 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Size
5/16-24 x 1
Dimensional Attributes Width
0.750 in
Specifications Alloy
1215
Specifications Approximate Weight
0.88 lb
Specifications Country Of Origin
USA
Specifications Finish
Chrome-Plated
Specifications Material
Steel, Chrome-Plated
Specifications Part Number
8L203KP11
Specifications Reach Compliant
Yes
Specifications Rohs Compliant
Yes
Specifications Screw Material
18-8 Stainless Steel
Specifications Series
Signature
Specifications Type
Low Profile
Specifications Upc Code
662786038440
