2-Piece Split Clamp-Type UNF/UNC Threaded Shaft Collars
2-Piece Split Clamp-Type UNF/UNC Threaded Shaft Collars
SKU:THR-d76416
Precision-machined 2-Piece UNF/UNC Threaded Shaft Collars for adjustable, high-clamping power on standard threaded shafts. RoHS2 and REACH compliant.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
2-Piece Split Clamp-Type UNF/UNC Threaded Shaft Collars
$12.99
Quantity: 1
Claim Your Seller Account
2-Piece Split Clamp-Type UNF/UNC Threaded Shaft Collars
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

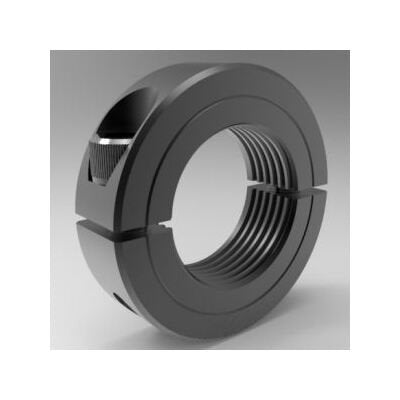

The UNF/UNC Threaded Shaft Collars are precision-machined two-piece split clamp-type collars designed for standard UNF/UNC threaded shafts. Offering superior holding power over set-screw type collars, these collars can be easily adjusted and placed anywhere on the shaft. Available in High Strength and Low Profile styles, the High Strength variant features a clamp screw that does not protrude beyond the outside diameter, while the Low Profile style has the clamp screw protruding beyond the OD. Made of high-quality steel with a black oxide finish, these collars ensure non-marring installation while providing high clamping power. Suitable for a wide range of applications, these collars are RoHS2 and REACH compliant, meeting industry standards for quality and safety.
Product Specifications
Dimensional Attributes Outside Diameter
0.625 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
4-40 x 3/8
Dimensional Attributes Threaded Bore Size
10-32
Dimensional Attributes Width
0.313 in
Specifications Alloy
1215
Specifications Approximate Weight
0.02 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
8L002F
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Low Profile
Specifications Upc Code
662786012648
