2" PTFE Lined Check Valve with 1.50 PSI Cracking Pressure - HT Style
2" PTFE Lined Check Valve with 1.50 PSI Cracking Pressure - HT Style
SKU:HTS-e1d5be
Reliable 2" PTFE Lined Check Valve with 1.50 PSI Cracking Pressure - HT Style, ideal for diverse applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
2" PTFE Lined Check Valve with 1.50 PSI Cracking Pressure - HT Style
$129.99
Quantity: 1
Claim Your Seller Account
2" PTFE Lined Check Valve with 1.50 PSI Cracking Pressure - HT Style
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 2-inch Nominal Pipe Size PTFE Lined Check Valve features a robust design with ANSI/ASME B16.5 Class 150 flanged ends. Its one-piece Polytetrafluoroethylene (PTFE) liner ensures superior chemical resistance. With a standard cracking pressure of 1.50 psi and FEP encapsulated stainless steel spring, this valve offers reliable performance in various applications. Made in the USA, it provides low pressure relief and vacuum breaker functionalities, meeting stringent quality standards.
Product Specifications
Additional Information

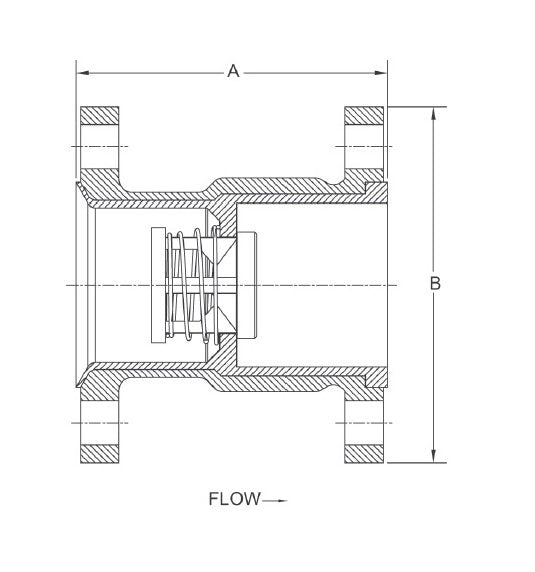

Style HT bodies are made of cast carbon steel only. The liner is made of virgin Polytetrafluoroethylene (PTFE). It is installed as one solid piece of Polytetrafluoroethylene (PTFE) and the internal geometrical shape is machined. The Polytetrafluoroethylene (PTFE) liner has a minimum wall thickness of 3/32 inch, which guarantees against pin holes which can be present in fused liners.The HT valve can also be used as a low pressure relief valve or vacuum breaker by using the desired spring settings.The Check-All® Flanged and Drilled - Fluoropolymer Polytetrafluoroethylene (PTFE) Lined (HT) check valve is a one-piece body valve with ANSI/ASME B16.5 Class 150 flanged ends. The valve has a solid one-piece Polytetrafluoroethylene (PTFE) liner, which covers the flange faces out to the raised face diameter. All wetted surfaces are fluoropolymer (Polytetrafluoroethylene (PTFE)/FEP/PFA) including the FEP encapsulated stainless steel spring.
Note
Made in USA.
Specifications Cast Body Material
Wrought Carbon Steel (WCB/WCC) = CS
Specifications Certifications
European Conformity (CE) Non-PED Statement
Specifications Liner Material
Polytetrafluoroethylene (PTFE)
Specifications Nominal Pipe Size
2 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
20 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Seat Material
Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Plastic to Plastic = MT (No O-Ring)
Specifications Size Code
K
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
316 Stainless Steel = SS | Alloy 400 or Monel® = MO | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Titanium = TI
Specifications Standard Cracking Pressure
1.50 psi
Specifications Valve Style
HT
