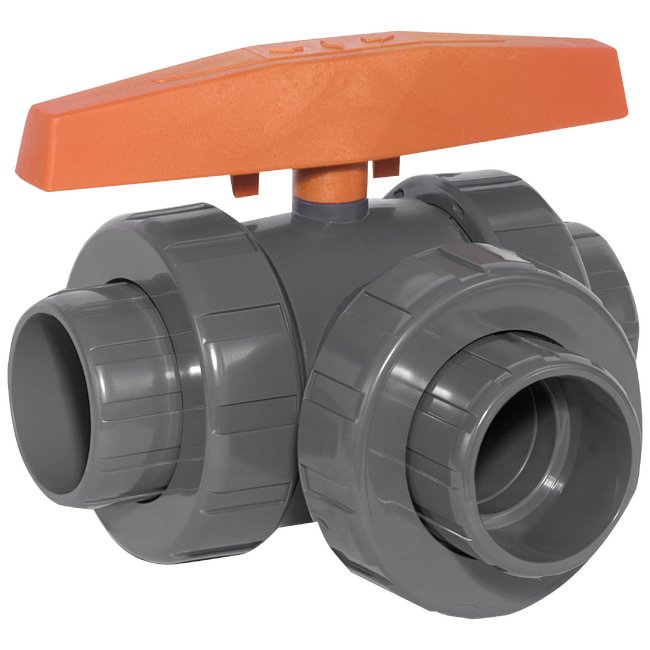

2" PVC 3-Way Lateral True Union Ball Valves w/FPM O-Rings, Flanged End Connections

Name: 2" PVC 3-Way Lateral True Union Ball Valves w/FPM O-Rings, Flanged End Connections
Brand: Hayward Flow Control
SKU: TRU-dc9181
Price: 89.99 USD
Availability: OutOfStock

SKU:TRU-dc9181

Upgrade to our high-performance 2" PVC 3-Way Lateral True Union Ball Valves for precise flow control in industrial settings.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your fluid control system with our 2" PVC 3-Way Lateral True Union Ball Valves featuring FPM o-rings for reliable sealing. These valves allow seamless flow diversion from the central port to left or right ports. With flanged end connections, they ensure secure installations. Crafted from durable PVC, these valves are designed for industrial applications, meeting stringent quality standards. Sized at 4.75" A, 4.38" B, 6.00" C, with a Cv factor of 58.0, they guarantee optimal performance and longevity.

Product Specifications

Specifications A

4.75 in | 120.65 mm

Specifications B

4.38 in | 111.25 mm

Specifications Body Material

PVC

Specifications C

6.00 in | 152.40 mm

Specifications Cv Factor

58.0

Specifications E

5.00 in | 127.00 mm

Specifications End Connection

Flanged

Specifications F

6.75 in | 171.45 mm

Specifications G

12.25 in | 311.15 mm

Specifications H

4.19 in | 106.43 mm

Specifications Seals

FPM

Specifications Size

2" PVC 3-Way Lateral True Union Ball Valves w/FPM O-Rings, Flanged End Connections
