2" PVC Simplex Basket Strainer with FPM Seal - SB Series
2" PVC Simplex Basket Strainer with FPM Seal - SB Series
SKU:STR-3c4dc3
Protect your system with the 2" PVC Simplex Basket Strainer - SB Series. Ideal for removing dirt and debris efficiently.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
2" PVC Simplex Basket Strainer with FPM Seal - SB Series
$189.99
Quantity: 1
Claim Your Seller Account
2" PVC Simplex Basket Strainer with FPM Seal - SB Series
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 2" PVC Simplex Basket Strainer with FPM Seal from the SB Series is designed to safeguard your system components by efficiently removing dirt and debris. With socket/threaded end connections and a durable PVC body, this strainer ensures reliable performance. Featuring a 1/8" standard basket perforation and a pressure rating of 150 psi at 70°F, this Hayward Thermoplastic Strainer provides optimal filtration with minimal flow resistance. Keep your processes running smoothly with this versatile and easy-to-maintain strainer.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0

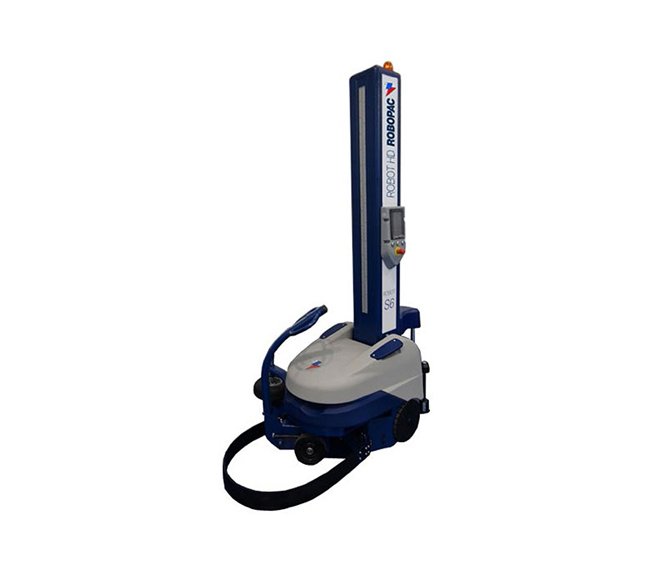

Variable pre-stretch ensures the best film economy for any load. It also allows you to get the highest containment and best film economy from any stretch film. Robopac's Variable Pre-Stretch Technology delivers 30% to 55% film savings.ProActive corner compensation combines the latest in load cell and encoder technology giving you the ability to wrap any load securely without crushing the corners of your load, while increasing containment on the flat sides.Multi-level containment force settings on the control panel deliver optimal containment force at each level and enable delivery of the highest pre-stretch levels.Strategic film placement allows you to place the film exactly where it has the most impact on load containment.Six wrapping menus allow you to pre-program wrap parameters to effectively wrap varied loads with minimal operator interaction.The portability of the Robot S6 can deliver 20+% productivity improvement in order picked warehouse applications with minimal impact to your current processes.
Film Technical Features Automatic Film Break Alarm
Standard
Film Technical Features Automatic Film Cut
Standard
Film Technical Features Film Delivery System
Power Variable Stretch (PVS)
Film Technical Features Load Height Detection
Infrared Photocell Detects Dark, Clear and or Shiny Products
Film Technical Features Standard Film Width
20 in
Film Technical Features Standard Pre Stretch
Variable to 400%
Film Technical Features Wrapping Force
Load Cell

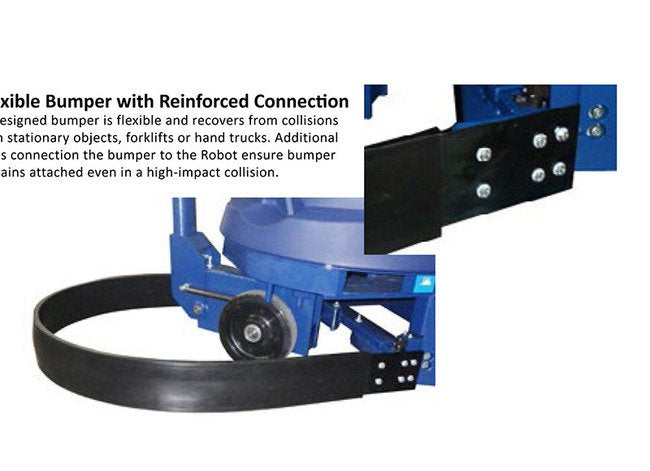

Heavy Duty Upgrades Flexible Bumper With Reinforced Connection
Redesigned bumper is flexible and recovers from collisions with stationary objects, forklifts or hand trucks. Additional bolts connection the bumper to the Robot ensure bumper remains attached even in a high-impact collision.
Heavy Duty Upgrades Front Wheel Support
New front wheel steering support reinforces the steering arm in the down position, when manually transporting the Robot.

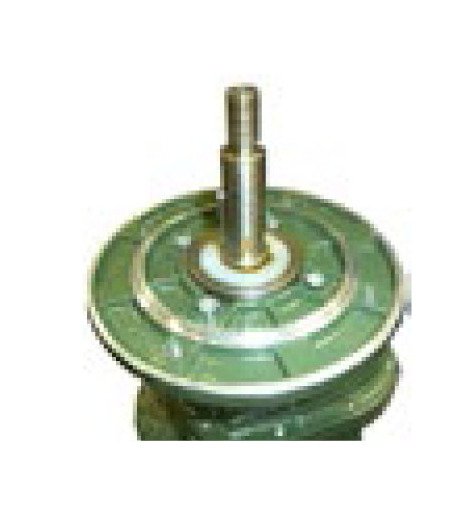

Heavy Duty Upgrades Gearbox
The new gearbox allows you to fix the wheel with top locking anti-slip grip (all-metal self-locking nut and washer Nord-Lock). A nylon ring was added to the gearbox to protect the oil seal.
Heavy Duty Upgrades Machine Frame
Machine frame has been modified to allow additional space for wiring.
Heavy Duty Upgrades New Load Cell Position
The new position of the load cell provides improved control of containment force. The new protective plate protects this key component from impact damage.
Heavy Duty Upgrades Roll Carriage Cover
Thicker and stronger and now mounted to the frame with 3 screws (previously 2 screws). Additional warning label on top to prevent placement of heavy items that could damage the cover.

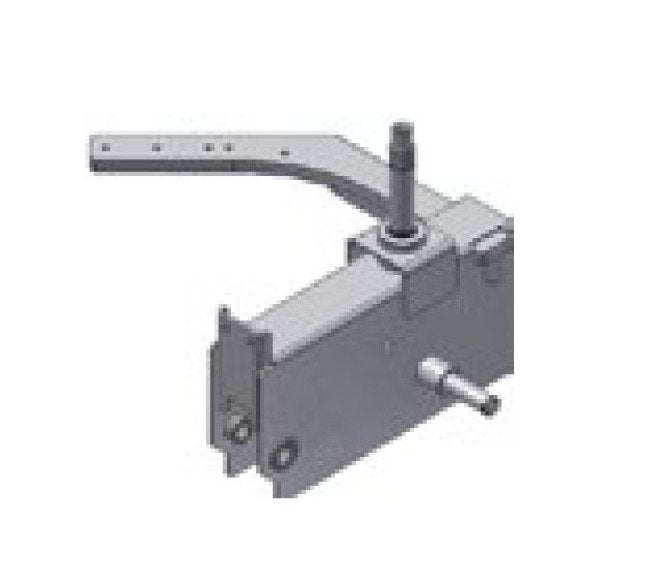

Heavy Duty Upgrades Steering Arm
New buttons feature sealed wires. Connector allows you to remove the entire assembly for transport. Steering arm has been reinforced with internal plate and hexagonal head screws for top locking anti-slip grip.
Heavy Duty Upgrades Tracing Wheel
The tracing arm wheel, with new hexagonal screws underneath, allows the brake system to block. Reinforced tracing wheel can be easily inverted to allow better contouring of the load.
Innovative Features Intuitive User Interface
Color touch screen panel with intuitive software gives the operator more control while simplifying the machine operation. Six wrapping menus allow you to easily select the best wrapping pattern for your loads and consistently repeat the pattern time after time.
Innovative Features Robopacs Patented Power Variable Pre Stretch
Robopac's innovative and patented S-winding pattern and dual motor pre-stretch system give you the ability to pre-stretch film up to 400% using two independent, variable DC motors. Both the pre-stretch and containment force are adjustable via the operator control panel. Robopac's patented high-performance S-Wrap Pattern (with Quick Load System) and load cell compensation and containment force device give you total film control.
Load Handling Technical Features Load Size
Unlimited Diameter
Load Handling Technical Features Maximum Load Diagonal
Unlimited
Load Handling Technical Features Maximum Load Height
110 in
Load Handling Technical Features Maximum Load Weight
Unlimited
Performance Technical Features Production Speed
0 to 30 L/h
Performance Technical Features Production Temperature Range
41 to 104 ºF
Safety Technical Features Anti Fall Device
Standard
Safety Technical Features Emergency Bumper With Dual Sensors
Standard
Safety Technical Features European Conformity Ce Compliant
Yes
Service Requirements Technical Features Alternating Current Ac V
110 V
Service Requirements Technical Features Charger Requirement Freq
60 Hz
Service Requirements Technical Features Charger Requirement Phas
1
Service Requirements Technical Features Charger Requirement Tole
10 %
Service Requirements Technical Features National Electrical Manu
Standard
Service Requirements Technical Features Warranty
1 years
Specifications Machine
S6 HD
Specifications Machine Dimensions
Machine Dimensions
Standard Features 0
Variable pre-stretch allows you to adjust machine to get the best containment and the best economy from every film on every load.Encoders on the roll carriage's dual motors provide complete control of pre-stretch and containment force.Roll carriage features an automatic stopping device to prevent accidental falls.Emergency stop bumper with dual sensors detect the slightest resistance and automatically ends cycle on contact."QLS" (Quick Load System) allows for safe, quick and easy film loading.High-frequency battery charger for 110 V to 240 V. Works with both acid and gel batteries.Unit can be relocated manually, without power, using the idle wheel feature.Manual towing controls provide maximum comfort and allow for precise positioning of the robot.Guide wheel height can be adjusted easily, without the use of tools.
