2" Self-Priming Solids Handling Pedestal Pump
2" Self-Priming Solids Handling Pedestal Pump
SKU:PRO-f489d9
Durable 2" Self-Priming Solids Handling Pedestal Pump by American Machine and Tool Co. Ideal for water, wastewater, and utility needs.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
2" Self-Priming Solids Handling Pedestal Pump
$899.99
Quantity: 1
Claim Your Seller Account
2" Self-Priming Solids Handling Pedestal Pump
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

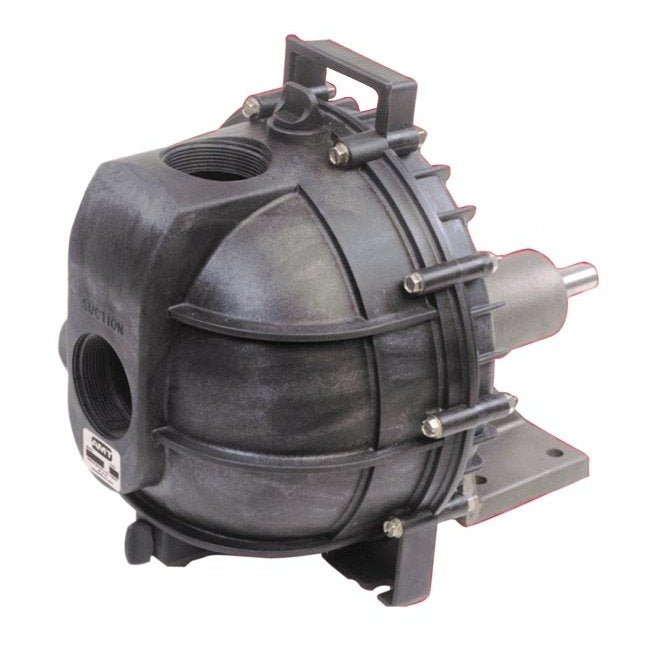

The 2" Self-Priming Solids Handling Pedestal Pump by American Machine and Tool Company is a robust solution designed for water, wastewater, sump, and utility applications. With a durable cast iron construction, this pump features a Buna-N flapper valve and O-rings, and a maximum working pressure of 75 PSI. Its self-priming capability up to 20 ft and ability to handle 3/8" diameter solids make it ideal for handling tough waste and trash efficiently. Equipped with a 5 hp pedestal driver, Viton® seals, and heavy-duty bearings, this pump ensures reliable performance even in demanding environments.
Product Specifications
Specifications 0
Cast Iron ConstructionBuna-N flapper valve and O-rings2" NPT Suction & discharge portsMaximum Working Pressure 75 PSIMaximum Temperature 180° FSelf-priming to 20 ft3/8" Diameter solids handling capability on 3160-991" Diameter solids handling capability on 3931-99Heavy duty cast iron bearing housing containing(2) precision sealed ball bearings3/4" Diameter CNC machined shaft1 3/8" x 3/16" x 3/32" keyway

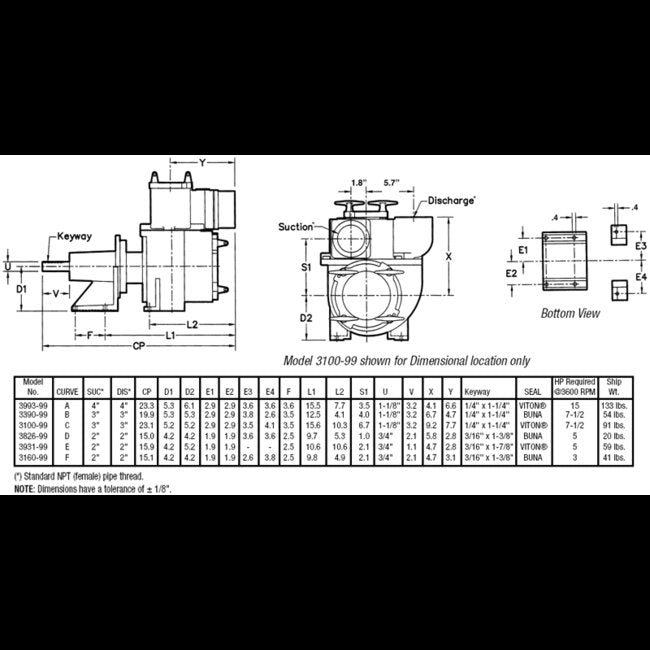

Specifications Curve
E
Specifications Customs Code
HTS Code 8413702022
Specifications Driver
Pedestal
Specifications Height
9 in | 226.06 mm
Specifications Inlet Size
2 in
Specifications Installed Options
Silicon Carbide/Viton Seal, Flapper and Gasket Installed (339X-300-VS) | Silicon Carbide/Viton Seal, O-Ring and Flapper Installed (316X-300-VS)
Specifications Length
15 in | 381.00 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Porting Position
2 in
Specifications Power Required At 3600 Rpm
5 hp
Specifications Pump Type
Trash
Specifications Seal Material
Viton®
Specifications Sku
AT393199SP
Specifications Temperature
180 ºF
Specifications Weight
26.76 | 59 | 59 lbs
Specifications Width
5 in | 127.00 mm
