2" Self-Priming Solids Handling Pedestal Pump
2" Self-Priming Solids Handling Pedestal Pump
SKU:PRO-087149
Rugged 2" Self-Priming Solids Handling Pedestal Pump for water, wastewater, sump, and utility use. Handles 3/8" solids, self-primes to 20 ft, with heavy-duty construction.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
2" Self-Priming Solids Handling Pedestal Pump
$799.99
Quantity: 1
Claim Your Seller Account
2" Self-Priming Solids Handling Pedestal Pump
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

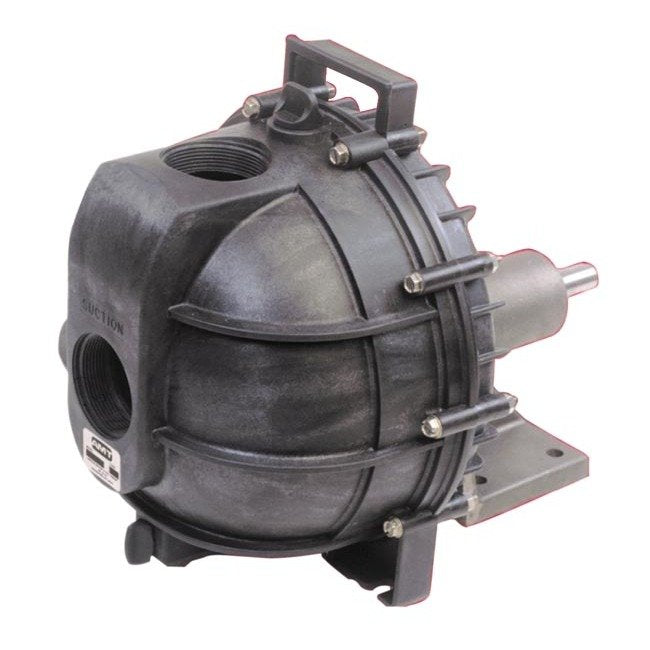

The 2" Self-Priming Solids Handling Pedestal Pump by American Machine and Tool Company is a robust solution for water, wastewater, sump, and utility applications. Constructed of durable cast iron, this pump features a Buna-N flapper valve and O-rings, self-priming capability to 20 ft, and can handle 3/8" diameter solids. With a maximum working pressure of 75 PSI and a temperature rating of 180°F, it is a reliable choice for various pumping needs. This pump also comes with heavy-duty bearings, CNC machined shaft, and is equipped with Silicon Carbide/Viton Seals for extended performance.
Product Specifications
Specifications 0
Cast Iron ConstructionBuna-N flapper valve and O-rings2" NPT Suction & discharge portsMaximum Working Pressure 75 PSIMaximum Temperature 180° FSelf-priming to 20 ft3/8" Diameter solids handling capability on 3160-991" Diameter solids handling capability on 3931-99Heavy duty cast iron bearing housing containing(2) precision sealed ball bearings3/4" Diameter CNC machined shaft1 3/8" x 3/16" x 3/32" keyway
Specifications Curve
F
Specifications Customs Code
HTS Code 8413702015
Specifications Driver
Pedestal
Specifications Height
9 in | 226.06 mm
Specifications Inlet Size
2 in
Specifications Installed Options
Silicon Carbide/Viton Seal, Flapper and Gasket Installed (339X-300-VS) | Silicon Carbide/Viton Seal, O-Ring and Flapper Installed (316X-300-VS)
Specifications Length
15 in | 383.54 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Porting Position
2 in
Specifications Power Required At 3600 Rpm
3 hp
Specifications Pump Type
Solids Handling
Specifications Seal Material
Buna-N
Specifications Sku
AT316099SP
Specifications Temperature
180 ºF
Specifications Weight
18.60 | 41 | 41 lbs
Specifications Width
8 in | 203.20 mm
