2" SI Straight-Sided Insert Check Valve, 0.125 psi Cracking Pressure
2" SI Straight-Sided Insert Check Valve, 0.125 psi Cracking Pressure
SKU:SIS-1f3202
Premium 2" SI Check Valve, 0.125 psi Cracking Pressure. Durable and versatile for precise flow control.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
2" SI Straight-Sided Insert Check Valve, 0.125 psi Cracking Pressure
$89.99
Quantity: 1
Claim Your Seller Account
2" SI Straight-Sided Insert Check Valve, 0.125 psi Cracking Pressure
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

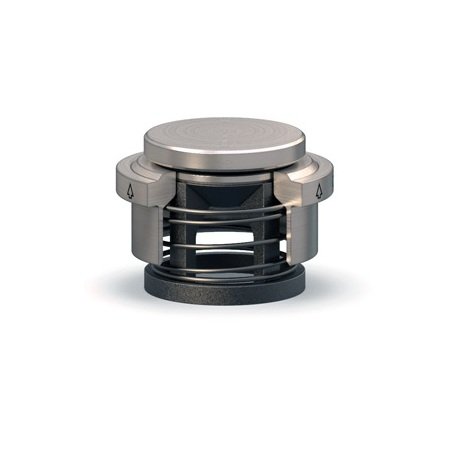

The 2 Inch SI Straight-Sided Insert Check Valve is a high-quality, threadless valve made of 316 Stainless Steel for durability. With a standard cracking pressure of 0.125 psi, it ensures precise flow control. This versatile valve can be used in various applications, including as a low-pressure relief valve or vacuum breaker. Designed to meet stringent industry standards, this valve is reliable, efficient, and ideal for both consumer and institutional use.
Product Specifications
Additional Information
PED Compliance Statement: Due to the unique "insert" design of our 3S, SC, CB, TC, SI, & UV, style check valves, they do not constitute an "identifiable pressure bearing housing" as defined in PED Guideline 1/8. These styles must be installed into either ferrules or fittings to create a pressure bearing housing. Instead, they are classified as "components of pressure equipment" as defined in PED Guideline 1/8. As a result, these valves can be sold in the European Community and no CE Mark is required.In addition applications where the maximum allowed operating pressure is 0.5 bar (7.2 psi) or less, do not fall under the PED, regardless of the valve style.
Note
Made in USA.
Specifications Body Material
316 Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Brass = BR | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO | Titanium = TI
Specifications Body Material Availability
316 Stainless Steel (SS) - Standard | Alloy 20 (A2) - Semi-Standard | Alloy B (HB) - Contact the factory for these or other materials. | Alloy C-276 (HC) - Semi-Standard | Brass (BR) - Standard | Carbon Steel (CS) - Standard | Monel® 400 or Alloy R405 - Semi-Standard | Titanium (TI) - Contact the factory for these or other materials.
Specifications Certifications
European Conformity (CE) Non-PED Statement | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
2 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
3000 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Note For Standard Cracking Pressure
0.125 psi springs are not recommended for installations with flow vertical down.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
K
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
0.125 psi
Specifications Valve Style
SI
