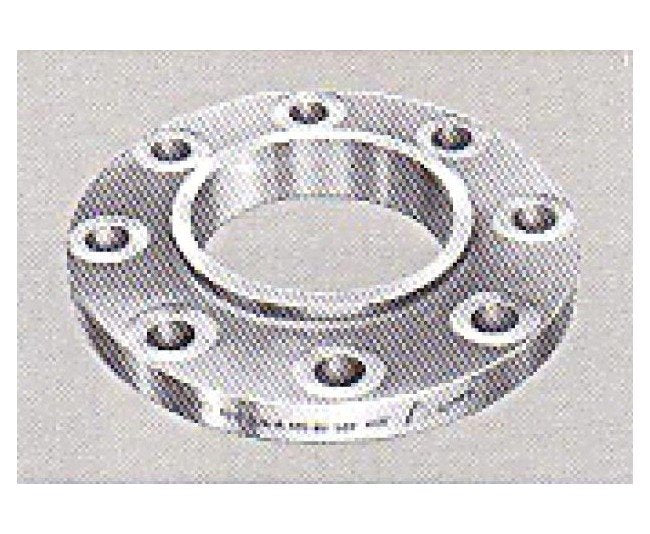

• 2" Slip-On Class 150 Flange - Image 1
  • 2" Slip-On Class 150 Flange - Image 2
1 2
Caylor Industrial Sales, Inc. →

2" Slip-On Class 150 Flange

2" Slip-On Class 150 Flange

FIT-ab2e68

High-quality 2" Slip-On Class 150 Flange for secure leak-free connections. Compliant with ANSI B16.5 standards.

$89.99
$89.99
Sale

Initiate Order

2" Slip-On Class 150 Flange

2" Slip-On Class 150 Flange

$89.99

Quantity: 1

Claim Your Seller Account

2" Slip-On Class 150 Flange

2" Slip-On Class 150 Flange

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 2" Slip-On Class 150 Flange is precision-engineered for optimal performance in industrial applications. With a nominal pipe size of 2 inches and features such as raised face design and precise dimensions, this flange ensures a secure and leak-free connection. Compliant with ANSI B16.5 standards, it offers reliable sealing and easy installation, meeting the stringent requirements of government and institutional procurement.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Features 0

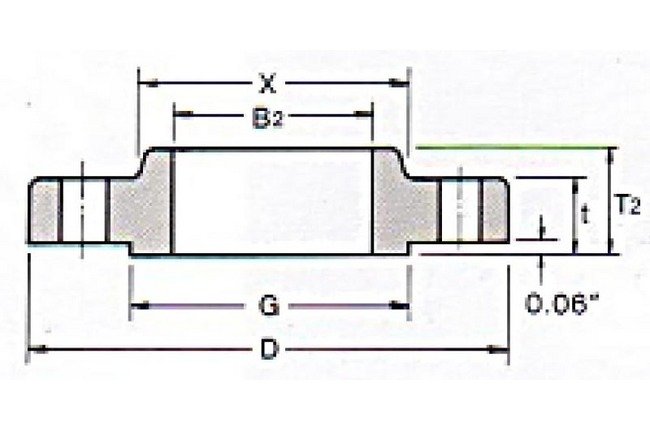

Class 150 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.
Specifications Approx Weight
5.00 lbs
Specifications Bolt Circle Diameter
4.75 inches
Specifications Bore B2
2.44 inches
Specifications Diameter At Base Of Hub X
3.06 inches
Specifications Diameter Of Bolts
5/8 inches
Specifications Diameter Of Holes
0.75 inches
Specifications Length Thru Hub T2
1.00 inches
Specifications Machine Bolt Length Raised Face
2.75 inches
Specifications Nominal Pipe Size
2 inches
Specifications Number Of Holes
4
Specifications Od Of Raised Face G
3.62 inches
Specifications Outside Diameter D
6.00 inches
Specifications Stud Bolt Length Raised Face
3.25 inches
Specifications Stud Bolt Length Ring Joint
3.75 inches
Specifications Thickness T
0.75 inches
